XK-QD2 PLC Control Pneumatic Teaching Experiment Device
plc training equipment
programmable plc
pneumatic device
1. Product Structure:

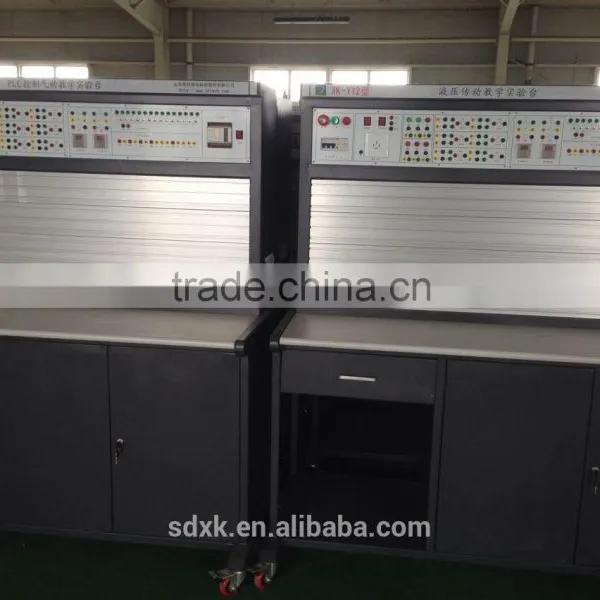

1.1 Experimental platform adopts two kinds of control mode: group of relay control and PLC control. It is equipped with common pneumatic components, suitable for teaching practice of machinery,mechanical and electrical integration.
1.2 Operation area is aluminum panel, square pipe frame is provided with casters. On the right side is the control module of the platform, including the leakage protection function. PLC control module, host computer communication port, a relay control module, switch module. Below the desktop with cabinet, used for the storage of components
2. Main Parameters:
2.1 Size: 1500 mm x 750 mm x 1800 mm; 120KG
2.2 The power supply: three-phase AC380V, power < 500 VA.
2.3 The power module:
1) Three-phase and four phase system, AC380V, 50Hz
2) Three-phase power switch with leakage protection
3) Equipped with emergency stop button and Main power,power supply indicator lamp
4) Provides power supply output of DC24V
2.4 Gas source: by silent air pump
2.5 Tool accessories
2.7 Annex: Experimental jump line, commonly used tools, software disc
2.8 Manual
3. Training Project:
3.1 PLC hardware and software
1) PLC hardware knowledge
2) Wiring training PLC
3) PLC internal resources for learning
4) Using of PLC programming software
5) Download,upload and online monitoring of PLC applications
3.2 Pneumatic basic loop training
1)Single-acting cylinder reversing loop
2)Double-acting cylinder reversing loop
3)Single-acting cylinder speed control loop
4)Double-acting cylinder on-way speed regulation loop
5)Double-acting cylinder both way speed regulation loop
6)Speed changing-over loop
7)Buffering loop
8)Twice pressure control loop
9)Counting loop
10)Delay loop
11)Overload protection loop
12)Interlocking loop
13)Single cylinder single reciprocating control loop
14)Single cylinder continuous reciprocating action loop
15)Double-cylinder sequential action loop
16)Double-cylinder synchronization action loop
17)Unloading loop
18)Joint gate type shuttle valve application loop
19)Rapid escape valve application loop
