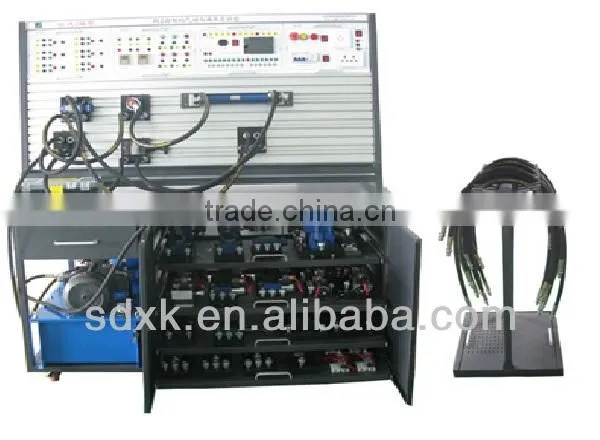

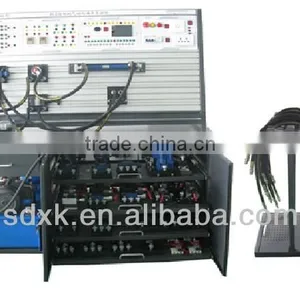

Pneumatic and Hydraulic Double Side Training Bench, Mechatronics Lab Trainer
Product overview:
It provides hydraulic and pneumatic two kinds components,and equipped with each independent PLC electrical control module,can carry out each independent experiment simultaneously.
Such reduced the purchasing cost and saved the experiment site.on the basis of ensuring complete the two integrated groups experiment,save the resources effectively and have a high cost performance.
The experiment platform adopt standard industrial hydraulic,pneumatic components and newly modular design, system combination connection is convenient.The training platform equipped with large quantity training projects corresponding to actual industry.can cultivate and promote the students design ability,operational ability and integrated using ability,play a role of strengthening design experiment and comprehensive training.
hydraulic part
1.main characteristics
1)training platform structure
Made by 2.0mm cold-roll steel sheets,the whole experiment platform structure is reasonable,surface coating process,elegant
appearance, T type slot aluminum operating platform
2)industrial components
The platform adopt standard industrial hydraulic components,each components use industrial hydraulic famous
brand products from Beijing Huade company,etc. and close to industrialization.
nical parameters
1)device size:1500mm×1000mm×1800mm
2)power supply and signal source
(1)three-phase four-wire AC380V,50Hz
(2)three-phase power supply main switch with earth leakage protection.
(3)with emergency button and power supply, power indicator lamp
(4)provide 1 route DC24V DC voltage source output
3.main device
1)training platform
1)power supply control module
3)button module
4)time relay module
5)intermediate relay module
6)programmable control module
7)hydraulic pump station
8)oil tank

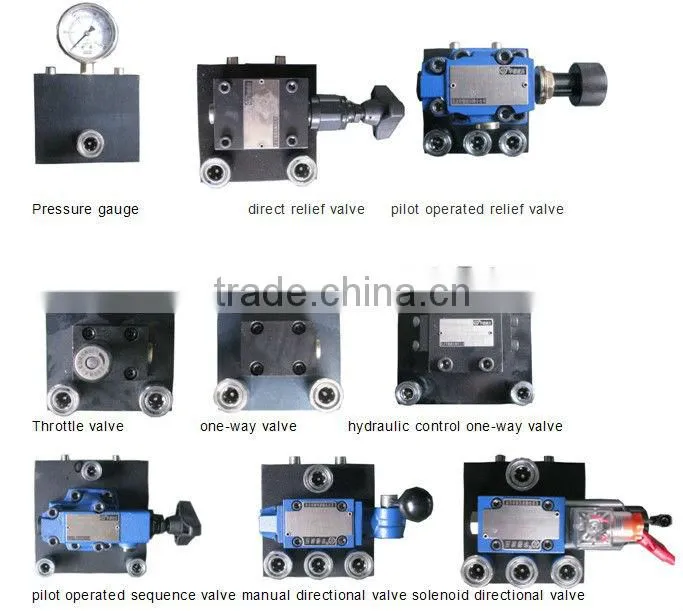

9)commonly used hydraulic components
4.training project
Hydraulic circuit experiment
Pressure control circuit
Relief circuit
Balanced circuit
Throttle speed regulating circuit
Speed transition circuit
Hydraulic cylinder synchronous circuit
Hydraulic cylinder sequence action circuit

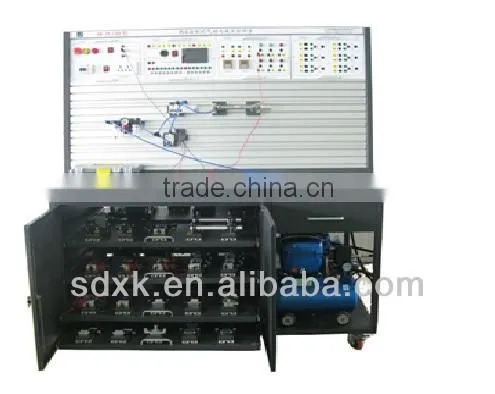

pneumatic part
nical parameters
1)size: 1500mm×750mm×1800mm
2)power supply and signal source
(1)single-phase AC220V,50Hz
(2)single-phase power supply main switch with earth leakage protection
(3)with emergency stop button and power supply,power indicator lamp
(4)provide 1 route DC24V DC voltage source output.
3)device capacity:<1KW
4)Silent air compressor
(1)input voltage:AC 220V/50Hz
(2)motor power:550W
(3)rated output pressure:0.7Mpa
(4)air pump volume:10L
(5)working noise:<56db
3.Main equipment
1)Training bench
2) Power control module
3)Button module
4)Time relay module
5)Intermediate relay module
6)Programmable control module
7)Ultra-quiet Air Compressor
4. Experiment project
1)Pneumatic circuit experiment
Single acting cylinder reversing circuit
Double-action cylinder reversing circuit
Single acting cylinder speed control circuit
Double acting cylinder one way speed regulation circuit
Logical valve application circuit
Single cylinder up down control circuit
Single cylinder continuous return control circuit
2) Button control pneumatic practical system
3) Relay control pneumatic practical system
4) PLC control pneumatic practical system
5)Pneumatic practical system integrated design ability practical training
6)Pneumatic drive system modeling and simulating
7)Programmable controller (PLC) electric control experiment
