Laboratory Equipment, Tensile Testing Model Teaching Equipment

XKL311 Tensile Testing Machine Teaching Equipment

1,Product Overview:

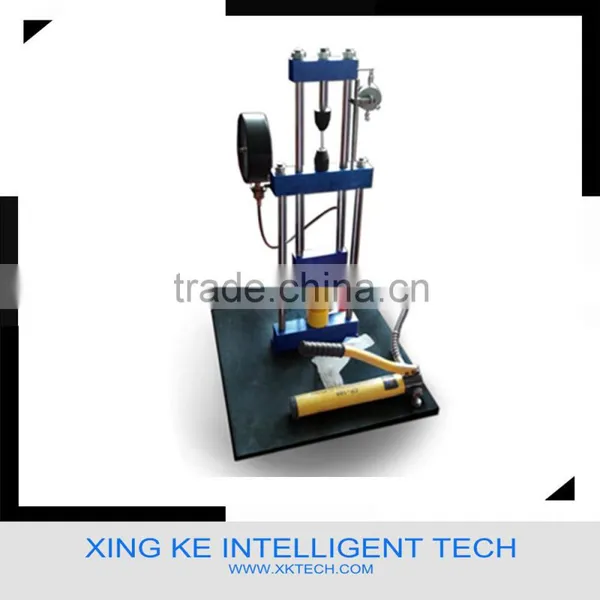

The small metal tensile testing machine is specially designed for teaching test of mechanical properties of metallic materials. Precision high-pressure hand pumps, miniature hydraulic cylinder through the reaction frame test force applied. The high-precision pressure gauge shows the test force, the dial gauge measuring specimen deformation models of small, agile, precise and reliable mechanical teaching effective and practical test equipment.

2,Main parameters:

1) The maximum test force: 20kN;

2) Test the force measurement: precision pressure gauge, unit, kN, accuracy: ± 2% FS;

3) M10 threaded port cylindrical specimens, the available part of the diameter of 5mm or 6mm or 8mm, the minimum length of 60mm;

4) The deformation measurement accuracy: 0.01 mm;

5) Overall dimensions are approximately: 360mm × 360mm × 810mm;

6) The total weight about: 32kg.

3,Main function:

1, the fuel tank under the home, double column, anti-power rack to set the host structure.

2, the manual hydraulic pump as a power source.

3, 20 kN small plunger hydraulic cylinder structure, no leakage, low friction.

4, Precision pressure gauge indicates that the test force.

5, the dial gauge measurement of specimen deformation.

6, the threaded specimen holding device, smart and reliable.

7, the whole beautiful appearance, easy to operate...
