XK-YY2 Hydraulic Transmission Teaching Experiment Device
Hydraulic trainer
Hydraulic equipment
Educational kit

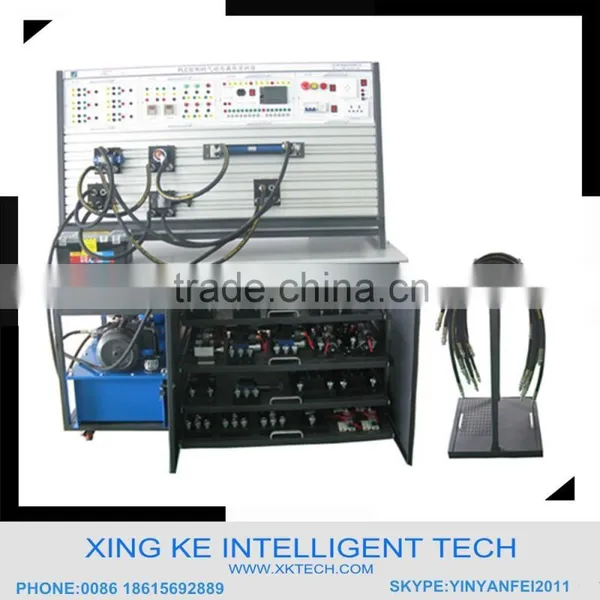

1.Product Structure:
1.1 Experimental platform adopts two kinds of control mode: group of relay control and PLC control. It is equipped with common hydraulic components, suitable for teaching practice of machinery,mechanical and electrical integration.
1.2 Operation area is aluminum panel, square pipe frame is provided with casters. On the right side is the control module of the platform, including the leakage protection function module,PLC control module,host computer communication port,a relay control module, switch module. Below the desktop is cabinet, used for the storage of hydraulic components.
2. The main technical indexes of the product
2.1 Size: 1500 mm x 750 mm x 1800 mm; 120kg
2.2 The power supply: Three-phase AC380V, power < 500 VA.
2.3 The power modules
1) Three-phase and four phase system, AC380V, 50Hz
2) Three-phase power switch with a leakage protection
3) Equipped with emergency stop button and main power,power supply indicator lamp
4) Provides power supply output of DC24V
2.4Hydraulic special used pump station
2.5Tools accessories components
2.6 Annex: experimental jump line, commonly used tools, software disc
2.7 Manual
3. Training project example:
3.1 The PLC hardware and software
1) PLC hardware knowledge
2) Wiring training PLC
3) PLC internal resources for learning
4) Using of PLC programming software
5) Download,upload and online monitoring of PLC applications
3.2Hydraulic loop machine learning basic training
1)the electromagnetic valve commutation loop
2)O-function, M-function valve latch circuit
3)pilot-operated check valve atresia
4)the pressure it is set loop
5)two pressure control loop
6)valve decompression circuit
7)H-type electromagnetic valve unloaded loop
8)into the oil throttle speed control loop
9)circuit throttle speed control loop
10)the throttle valve in parallel with throttle speed control loop
11)the order of action of the sequence valve circuit
12)the order of action of the pressure relay loop
13)circuit limit switch the order of action
14)the order of the trip valve action loop
