Specifications
1.educational training equipment2.XK-M618B Grinding machine

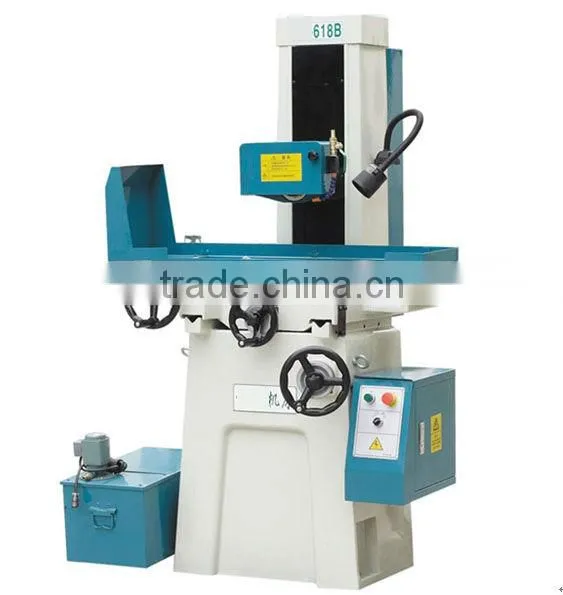

vocational training equipment, XK-M618B Grinding machine
1, the ball track adopts steel material, high precision steel ball, wear resistance, move easily, can greatly improve the work efficiency and energy saving.
2, before and after the double "V" slide, and the precision shovel flower, not only slide smoothly and wear-resisting, xD250 / xD300 type slide with a special resin, durable, maintain good accuracy, flexible operation of portable. Table drive manually using the synchronous belt transmission.
3 the spindle motor, no vibration and low noise
4, high precision spindle sleeve type, adopt four precision Angle rolling bearing, after strict measurement choice preloading, assembled in room temperature control, and cooperate with the labyrinth completely waterproof design, in order to ensure the service life of bearing, and the grinding surface roughness.
5, M for slide table for precision slide H for workbench about hydraulic, before and after the manual AH about before and after the workbench, automatic, manual up and down.
specifications |
XD618B
|
unit |
|
|
|
The workbench work area |
mm |
450x150 |
|
Around the largest quantity of mobile |
mm |
500 |
||
ability |
Before and after the maximum amount of mobile |
mm |
200 |
|
Work surface maximum distance to the main shaft center |
mm |
420 |
||
The workbench biggest bear weight |
kgs |
100 |
||
|
The workbench T slot |
mmxN |
14X 1 |
|
The workbench |
|
1 |
mm |
0.01 |
Before and after the handwheel feed |
A circle |
mm |
2.5 |
|
|
Grinding wheel size |
mm |
φ180×6~13×31.75 |
|
Grinding wheel |
|
50HZ |
R.P.m |
2850 |
Spindle speed |
60HZ |
R.P.m |
3360 |
|
|
|
1 |
mm |
0.01 |
up-down structure |
Up and down the handwheel feed
|
A rotary |
mm |
1.25 |
|
The spindle motor |
KW |
1.1 |
|
The motor |
Hydraulic motor |
KW |
|
|
Flush the motor |
W |
40 |
||
|
The machine is highly |
mm |
1 700 |
|
Covers an area of |
mm |
2110×1200 |
||
size |
The net weight |
kgs |
750 |
|
|
Gross weight |
kgs |
850 |
|
