1.educational training equipment2. XK-PC0630 ordinary lathe

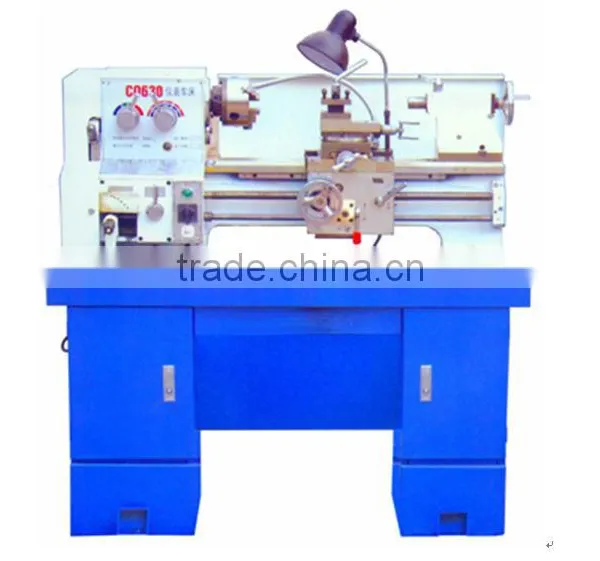

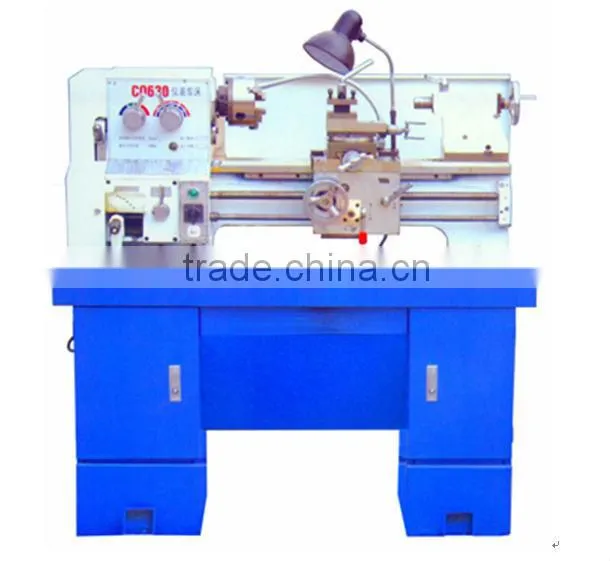

vocational training equipment, XK-PC0630 ordinary lathe
Main performance and features:
This machine is high efficiency, low consumption, precision instrument lathe, with light structure, flexible operation, easy installation and maintenance, the machine tool with unique feeding box shift gear, prompting machining high yield and good quality, the proper use of the second pole, can make the feeding is separated from the thread turning, which can prolong the service life of the mechanical system. Lathe spindle drive is installed in the machine tool itself alone 0.55 KW motor through the change gear in the cabinet of the head of a bed, spread to the main shaft, than the general directly with belt transmission power is big, small lathe spindle can transform six speed, at the same time also can use the reversal of the motor to get six inversion speed. This machine is suitable for the instrument and meter industry, as a production and processing of small workpieces, is ideal for metal cutting machine tools.
The main specifications and parameters:
project |
unit |
parameter |
|
Type no. |
|
C0630 |
C0630K |
Rotary lathe bed biggest workpiece diameter |
mm |
300 |
|
Maximum processing length |
mm |
500 |
|
Rest the largest workpiece turning diameter |
mm |
150 |
|
Main shaft aperture |
mm |
Φ27 |
Φ32 |
The spindle speed range (level 6) |
R/min |
87-1370 |
|
Turning metric thread pitch range (8) |
mm |
0. 5-3 |
|
Turning inch thread pitch range (grade 7) |
tpi |
0.5-3 |
|
Longitudinal feed (27) |
mm |
12-24 |
|
Top sleeve top mobile distance |
mm |
60 |
|
A taper sleeve |
|
||
The motor power |
kw |
0.55 |
|
Overall dimensions (length * width * height) |
mm |
1250*600*1200 |
|
Machine net weight |
kg |
||
