vocational training equipment,XK-ZB20A Drilling machine
- QINGDAO
- T/T Credit Card
You May Like
-

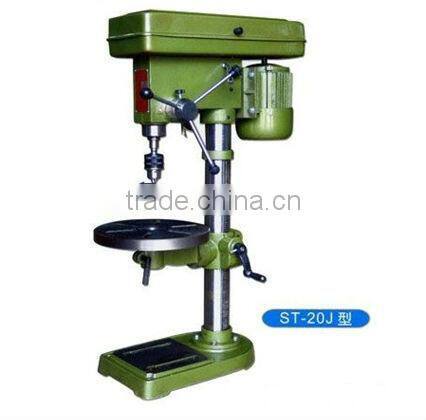

vocational training equipment,XK-ST20J Drilling machine
-
vocational training equipment,XK-M618B Grinding machine
-
vocational training equipment,XK-BC6063 planer
-
vocational training equipment,XK-PC6140A ordinary lathe
-
vocational training equipment,XK-PC6132 ordinary lathe
-
vocational training equipment,XK-PC6032 ordinary lathe
Product Details
Place of Origin | Shandong, China | Brand Name | XINGKE | |
Model Number | XK-ZB20A |
wooden package or according to your requirement
Product Description
Specifications
1.educational training equipment2.XK-ZB20A Drilling machine

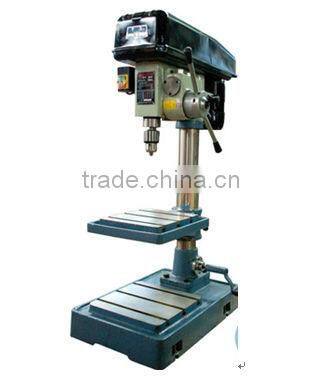

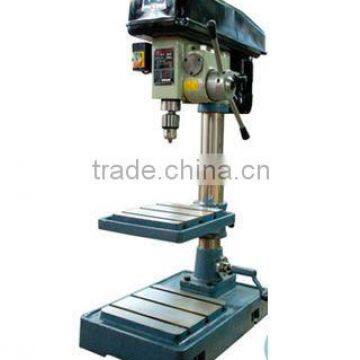

vocational training equipment, XK-ZB20A Drilling machine
1. The main purpose and scope of application
The machine is used in drilling, expanding on ferrous and non-ferrous metals, hinged below 20 mm diameter hole, because the feeding system adopts the structure of ratchet clutch type, and make the machine more precise and more compact in structure, operation and maintenance more convenient, and has the advantages of using little bit is not easy to break, driving wheel through the dynamic balancing correction, make the whole machine vibration, lower noise, run more smoothly. It is widely applied in instrument industry, machinery manufacturing and repair, etc., for single or mass production.
2. The technical parameters
The biggest hole diameter | Φ20mm |
The spindle range | 120mm |
Spindle biggest automatic feeding schedule | 96mm |
The spindle hole Morse taper | MT2 |
Spindle speed | 365,560,1000,1800r/min |
The spindle micro feeding | 0.10,0.14,0.17,0.25mm/r |
The dimension from the centerline of the main shaft to the surface of columns | 242.5mm |
The worktable size | 250*290mm |
Base size countertops | 316*320mm |
Spindle end to the work surface maximum distance | 540mm |
Spindle end what mesa maximum distance | 820mm |
The turning Angle of workbench around the pillar | 360° |
For the turning Angle of the spindle box around the pillar | ±90° |
motor | YS8034 1100W 380V |
Installation dimensions (length x width x height) | 78*50*117cm |
The net weight | 200Kg |
