Specifications

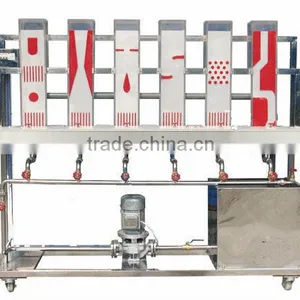

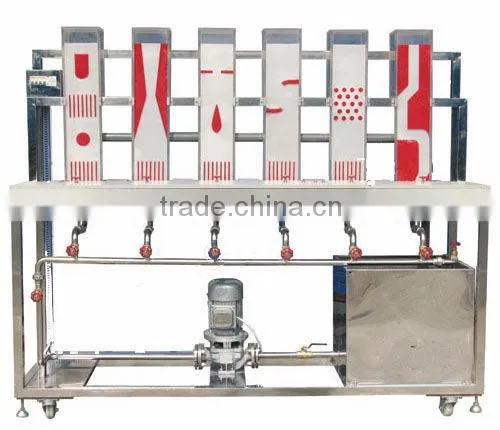

It is an universal lab device,experiment apparatus,trainign kits for hydromechanics experiment.XK-LDT Fluid Flow Graphic Demonstration Experiment Device
Function:
1.Observe flow object’s flow phenomenon when flow through different around flow object,to deepen the understanding of fluid movement characteristics;
2.Understanding of fluid flow state tracking method;
3.Observe water flow’s flow form when flow through around cylinder,wing Angle of attack, sudden enlargement and contraction and other conditions;
4.To deepen the understanding of boundary layer separation phenomenon,fully understanding flow object’s all kinds of flow phenomenon in practical project.
Main configuration:
Supply water tank,supply water pump,experiment observing section,aeration device,light source,adjustable valve,experiment bench and control screen and so on.
Technical parameters:
1.Supply water tank: volume is about 50L, stainless steel or high quality PVC material
2.Supply water pump:top lift:15m.rated flow:30L/min, power:370W;
3.Experiment observation section:divided into 6 independently observation panel operation,each size are about160×700 mm,transparent multi-color organic glass delicate made.
4.Aeration device:control the aeration quantity and bubble size.displaying surface is made of organic glass;
5.Running environment:temperature0-400C,relative humidity:≤90%RH,power supply:220V/50Hz
6.Control screen panel and experiment bench are made of 304 delicate stainless steel;device structure is compact,good-looking appearance,simple process and easy to operate...
Size:1800mm×500mm×1600mm....
XINGKE Products Specifications:
The First-Class Vocational Teaching Equipment Supplier/Manufacturer in People’s Republic of China.
1.Good quality
2.Reasonable price
3.OEM Service
4.OHSMS 28001; ISO14001; ISO9001
XINGKE Mainly Products Range:
1. Electrical Automation Training Equipment
2. Electronic/Electrical Technology Training Device.
3. Air-Conditioning and Refrigeration Training Sets
4. Power-Electronics Teaching Appliance
5. Mechanical and Electrical Integration Educational Apparatus
6. Sensor and Robot etc. Training Model
7. Car Maintenance Training Equipment/ Auto Electrical/Teaching Demonstration Board
8. Iron-making/Steel Rolling/Nonferrous Metal Smeltery Virtual Production Line Simulation Training System and Construction Machinery Virtual Simulator.
9. Chemical Industrial Engineering/Theory Lab Device; Enviromental Engineering Lab Device;
10 Hydromechanics Lab Device, n so on.
11.Supply OEM Services...
