XK-GRS1 INDUSTRIAL ROBOT AND INTELLIGENT VISION SYSTEM APPLICATION TRAINING PLATFORM
PRODUCT INTRODUCTION

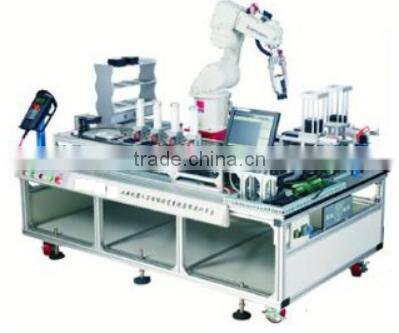

XK-GRS1 includes six degrees of freedom industrial robot, intelligent vision detection system, PLC control system and one set of mechanism (feeding, conveying, storage), it will complete the operation that sorting, detection, carrying, storage etc. for the high speed transmission work-piece.
All modules of this platform are all installed on the profile desktop, the mechanical structure, electrical control circuit, actuator are relatively independent, adopts industrial standard design.
XK-GRS1 training projects include: machine assembly, electrical circuit design and wiring, PLC programming and debugging, intelligent vision workflow edition, industrial robot programming and debugging.
XK-GRS1 is suitable for vocational college to training “industrial robot and control technology”, “automatics” etc. It also suitable for project training and skills competition
TECHNICAL PARAMETER
Input power: single phase three wire ~ 220V±10% 50Hz
Working environment: temperature -10℃~+40℃, relative humidity: ≤85%(25℃)
elevation<4000m
Device Capacity: <1.5kVA
Platform size: 2000mm×1200mm×1500mm
Safety protection: with leakage protection
EQUIPMENT STRUCTURE AND COMPOSITION
XK-GRS1 is composed by six freedom degree robot system, Omron intelligent vision detection system, PLC system, feeding unit, convey unit, storage unit, kinds of work piece, profile training table etc.
<![if !supportLists]>- <![endif]>Six freedom degree industrial robot system
Composed by robot, robot controller, demo unit, input / output signal converter and grab mechanism, equip with kinds of clamps, sucker, measuring implement, tools etc, completes the operation of grab, absorb, carry, assemble, polish, measure, disassemble etc. also can obtain the operation that intelligent vision camera proceeds the real time vision detection for work piece and assemble process.

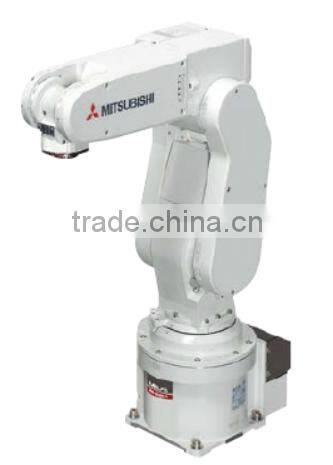

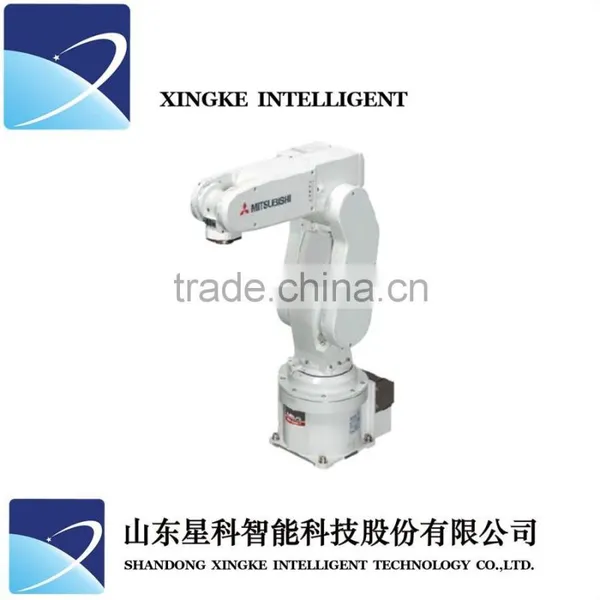

Mitsubishi RV-2F six freedom degree industrial robot tech parameter
Robot: RV-2F-1D
TRAINING ITEMS:
1.Industrial robot demo unit using
2. Software using of industrial robot
3. Basic instruction operation and position point setting of industrial robot
4. Work piece tracking and grab of industrial robot
5. Intelligent visual pattern input editing and debugging
6.Intelligent visual result output editing and debugging
7. Intelligent visual color comparison measurement
8. Intelligent visual serial number comparison measurement
9. Intelligent visual size comparison measurement
10. Intelligent visual angular surveying
11. Comprehensive application of intelligent visual system and industrial robot
12. PLC programming and debugging
Integrated application of PLC, intelligent visual system and industrial robot
