Specifications
Electrical Training PurposeElectrician Training Equipment
Motor Trainer
Electrician Maintenance Education
ISO CE
It is the educational equipment for vocational school teach

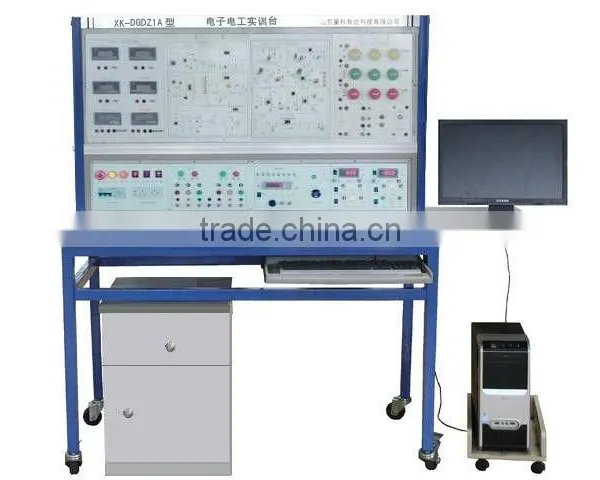

XK-DGDZ2 Electrician and Electronic and Motor Traction Training Device
1. Product structure:
Adopt modular desktop structure, hanging box replacement convenient, easy to organize various training project, expand and upgrade are convenient.
2. Main parameters:
Size: 1600 mm x 700 mm x 1500 mm;
The power supply: the three-phase AC380V, power < 1500 VA.
3. Main components:
The training platform, power control panel and electrical technology training unit, analog electronic technology training unit, digital electronic technology training unit, three-phase asynchronous motor training unit etc.
4. Main functions:
Device is mainly for the law of electrical circuit test experiment, three-phase ac circuit measuring training, typical control training of the three-phase asynchronous motor, relays and contact device control circuit application practice, digital electronic technology experiment, analog electronic technology experiment, electronic components application training, typical practical electronic control circuit and the working process and the reality of the product demonstration understanding and development. Have a safety protection function.
5. Annex:
Experimental jump line, commonly used tools, the product specification.
6. Training Projects:
1. The transistor switches characteristics, limiter and the clamping device
2. TTL logical gate logic function and parameter test
3. CMOS logical gate logic function and parameter test
4. Open collector TTL door and three states output door
5. Integration logic circuit connection and drive
6. The assembly logic circuit experiment analysis
7. The assembly logic circuit design and test
8. Decoder and its application
9. Trigger and its application
10. The counter and its application and other 16 more experiments.
At most 80 items experiment for training...
