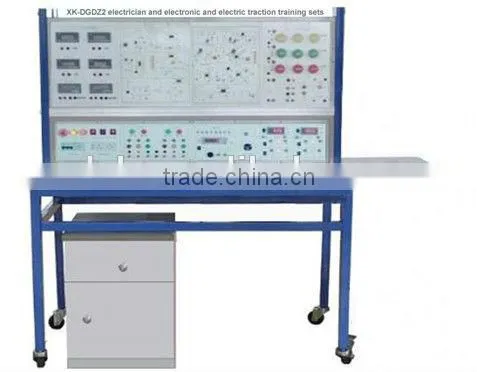

Help CenterElectrical Trainer Education Training Device Lab EquipmentXK-DGDZ2 Electrician and Electronic and Motor Traction Training Device
Related Products
-
Electrical Training Equipment Engineering Lab Device Education Kit XK-DJSX1 Mortor and Controller Training DeviceUS$ 40 - 10,000MOQ: 1 Set -
Electrical Trainer, Vocational Equipment, Electrician Lighting Circuits Training Device XK-LTV1NegotiableMOQ: 1 Set
-
Electrical Training Device XK-DGDZ1A Electrician and Electronics Training DeviceNegotiableMOQ: 1 Set
-
Vocational Education Training Equipment XK-MS3 Three-Phase Asynchronous Motor Two Direct Control Training EquipmentUS$ 100 - 5,000MOQ: 1 Set
-
Educational Trainer Engineering Teaching Kit XK-ECP1 Electrician Circuits and Protection Trainer EquipmentUS$ 1,000 - 10,000MOQ: 1 Set
1. Product structure:
Adopt modular desktop structure, hanging box replacement convenient, easy to organize various training project, expand and upgrade are convenient.
2. Main parameters:
Size 1600 mm x 700 mm x 1500 mm;
The power supply: the three-phase AC380V, power < 1500 VA..
3. Main components:
The training platform, power control panel and electrical technology training unit, analog electronic technology training unit, digital electronic technology training unit, three-phase asynchronous motor training unit etc.
4. Main functions:
Device is mainly for the law of electrical circuit test experiment, three-phase ac circuit measuring training, typical control training of the three-phase asynchronous motor, relays and contact device control circuit application practice, digital electronic technology experiment, analog electronic technology experiment, electronic components application training, typical practical electronic control circuit and the working process and the reality of the product demonstration understanding and development. Have a safety protection function.
5. Annex:
Experimental jump line, commonly used tools, the product specification.
6. Training Projects
1. The transistor switches characteristics, limiter and the clamping device
2. TTL logical gate logic function and parameter test
3. CMOS logical gate logic function and parameter test
4. Open collector TTL door and three states output door
5. Integration logic circuit connection and drive
6. The assembly logic circuit experiment analysis
7. The assembly logic circuit design and test
8. Decoder and its application
9. Trigger and its application
10. The counter and its application
11. The shift register and its application
12. Pulse splitter and its application
13. A gate produce pulse signal
14. The waveform plastic circuit
15. 555 circuit and its application
16. D/A transformation and application
17. A/D conversion and application
18. The programmable logic devices GAL design experiments
19. Shoot very follow device
20. The mosfet amplifier circuit
21. The single stage amplifier circuit
22. The two stage amplifier circuit
23. Negative feedback amplifying circuit
24. Scale operation circuit
25. The operation addition circuit
26. The integral operation circuit
27. Differential operation circuit
28. Filter circuit
29. Voltage comparator circuit
30. Complementary symmetry power amplifier circuit
