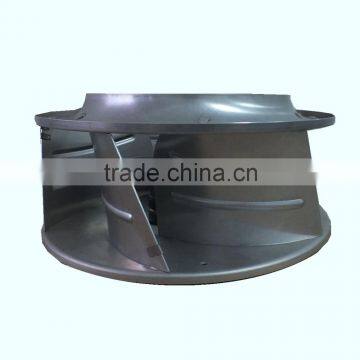

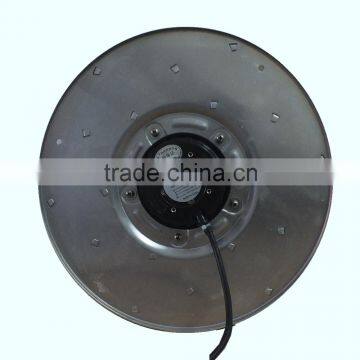

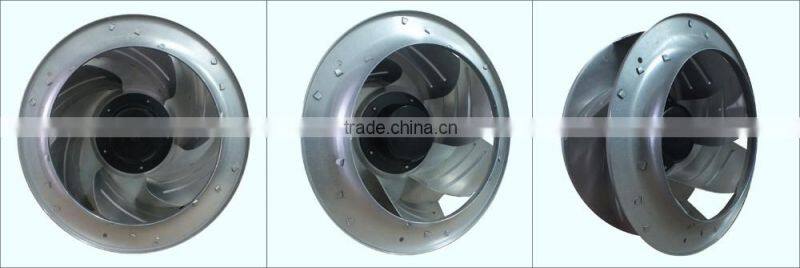

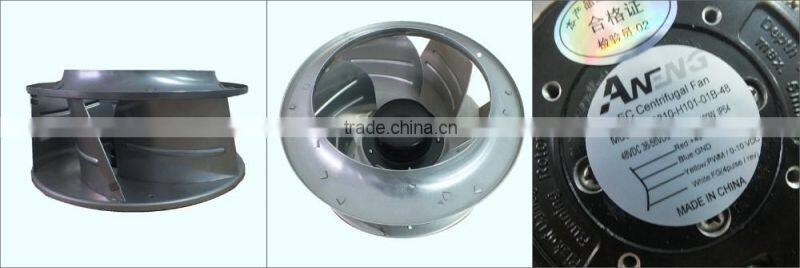

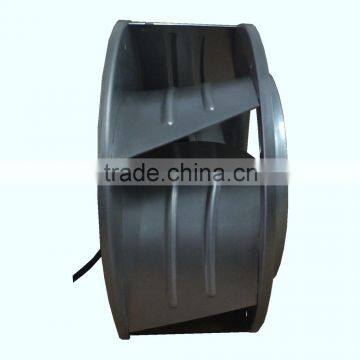

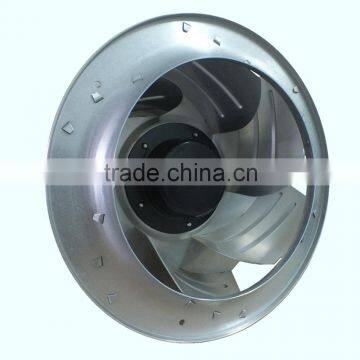

Help Center310mm High Flow 1910m3/h Fan for Electrical Cabinet
Related Products
-
310mm IP55 High Protection Outdoor Waterproof Cooling Fan for Telecom Cooling VentilationUS$ 70 - 73MOQ: 50 Pieces -
0-10V/PWM Control IP55 Waterproof Hot Air Exhaust Fan in Machine for Cooling AirUS$ 70 - 73MOQ: 50 Pieces
-
Intelligent 0-10V/PWM Control HVAC Centrifugal FanUS$ 70 - 73MOQ: 50 Pieces
-
310mm High Efficiency Big Centrifugal Fan With 103W 1910m3/hUS$ 70 - 73MOQ: 50 Pieces
-
DC 48V 310mm 310Pa High Pressure Exhaust FanUS$ 70 - 73MOQ: 50 Pieces
"We promise the products you will get are as true as you can see !"

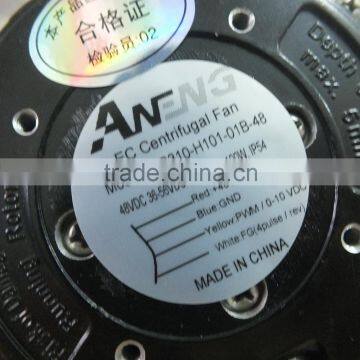

Type: R1G310-H101-01B
(PS: ANNENG Reserved, Pirates Must Investigate.)
| Specification | |||||||

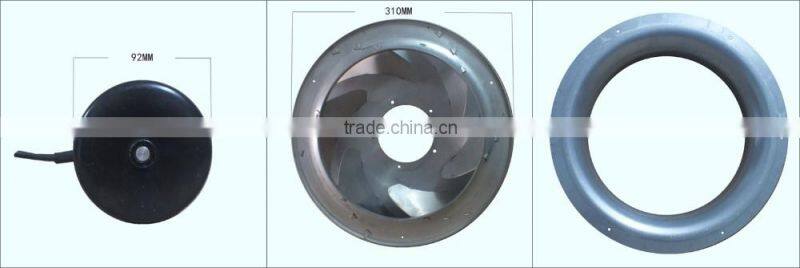

| Model Type: R1G310-H10-01B / Motor Type: 92mm | |||||||
| Rated Voltage | Frequency | Rated Current | Input Power | Speed | Air Flow | Air Flow | Static Pressure |
| (VDC) | (Hz) | (A) | (W) | (RPM) | (CFM) | (m3/h) | (Pa) |
| 48 | / | 2.13 | 110 | 1500 | 1124 | 1910 | 310 |
| Details Description | |||||||
| Current Leakage | <=0.25mA | ||||||
| Operation Mode | continuous operation S1 | ||||||
| Direction of Rotation | clockwise, seen on rotor | ||||||
| Mounting Position | at will | ||||||
| Insulation Class | "B" or "F" | ||||||
| Cable Length | 450mm | ||||||
| Bearing | ball bearing (NMB) | ||||||
| Net weight | 3.5kg | ||||||
| Surface of Rotor | electrophoresis | ||||||
| Number of Blades | "6" | ||||||
| Type of Protection | IP44 or IP55 | ||||||
| Speed control | 0-10v / PWM signal | ||||||
| Approval | CE | ||||||
| Operate Life | >=40,000hours | ||||||
| *Motor Protection Function | |||||||
| 1. Soft Start (8 seconds) | |||||||
| 2. Polarity Protection | |||||||
| 3. Undervoltage Protection | |||||||
| 4. Overvoltage Protection | |||||||
| 5. Current Limit Protection | |||||||
| 6. Over Current Protection | |||||||
| 7. Blocking Protection | |||||||
| 8. 3 Self Starting Function | |||||||
| 9. Stepless Speed regulation Function | |||||||
| 10. FG Speed Signal Output (open drain) | |||||||
| Characteristic Curves | |||||||
|
| |||||||

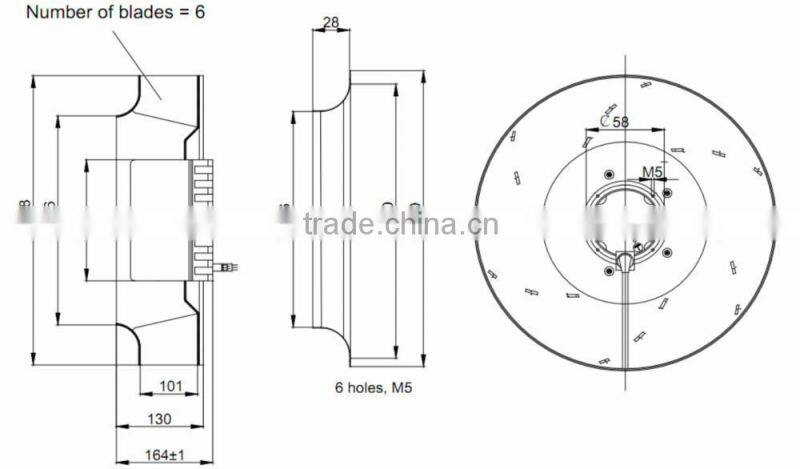

| Drawing | |||||||
| |||||||
Other Related Products
|
|
|
|
|
Factory Display
| Product Process Inspection |
|
| Motor Independent Production |
|
|
1. for Sample, packing individually by foam carton; 2. for Mass, pallet package 120x100x120CM. |
|
|
|
Quality Guarantee We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance. Price Guarantee The products are sold by our own factory directly. So the reason for low price is simple: no middlemen. Delivery Time Guarantee We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay. Service Guarantee We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
Our Friends, Let's creat a beautiful future! |
