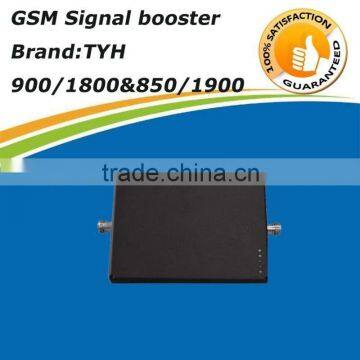

GSM indoor signal booster,cell phone mobile signal booster,gsm booster repeater

Specifications

1 mobile phone gsm home booster
2 High Power High Gain High Coverage
3 New brand component
4 OEMODM customized

Dual band gsm signal booster,gsm home booster:





Cell phone signal amplifier is a products designed to solve the mobile phone blind signal. As the mobile phone signal is transmitted by electromagnetic waves to establish a communications link, the building of the barrier, in some tall buildings inside, the basement of some places such as malls, restaurants, places of entertainment such as karaoke OK sauna and massage, underground civil air defense projects, subway stations and many other places where cell phone signals can not reach and can not use the phone. Cell phone signal amplifier can solve these problems in a particular place as long as the installation of a mobile phone signal amplifier system, the entire range of mobile phone signals can be well used, staff or customers will get great convenience .





Name	900/1800 & 850/1900 mhz Dual band booster
Description	Technical Features: *Receiving and sending separation,low require for Ant isolation,making it convenient for installation. *Mini design with metal cavity filter technology inside. *Full-duplex&dual-port design,and built-in power supply,making it convenient for installation. *Allowing for continuous gain adjustment 31dB by 1dB step. *ALC technology used to provide auto amplitude fixing. *Modules structures,making it convenient for installation,debugging and maintenance.
Item	SK-GSM/DCS&PCS&CDMA
Frequency Range (Mhz)	Uplink:       890-915MHz,1710-1785MHz, 1920-1980MHz                                           Downlink: 935-960MHz ,1805-1880MHz  ,
Gain (dB)	Uplink Gp≥55   Downlink ≥60dB
Pass Band Ripple	≤5dB
band flatness	≤+3dB
Guard Band Rejection	(BW-60dB)≤42MHz ,(BW-70dB)≤45MHz
I/O Impedance	50Ω/N connector
I/O Return Loss	≤-8dB
Export Power (Po)	≥20dBm
Intermodulation Attenuation(Po=13dBm)	≤-40dBc
Transmission Delay	≤0.5μs
Ambient Temperature	-10°C~50°C
Power Supply	AC110~220V±10%   45~55Hz
Size	260mmx145mmx80mm
Reliability	To the GB6993-86 Standard
Electromagnetic compatibility	To the ETS300 694-4 Standard
Function	a) Power supply LED denote b) Export power LED denote







Your system should come with at least the following items:

1) Outdoor Antenna (goes outside the building)

2) Siganal repeater

3) Indoor Antenna (goes inside the building)!

4) Coaxial Communication Cables

5) Connetor

6)Power Splitter

Steps:

Step 1 Start by taking your phone up to the roof or other location outside to find where the signal is strongest.

Step 2  Temporarily mount the Outdoor (outside) antenna in that location. You may need to adjust and move the antenna later.

Step 3  Run coaxial cable into the building to a convenient loaction (attic, etc.) where you can also get standard power for the Signal Repeater.

Step 4  Place the Signal Repeater in that location and connect the coaxial cable to the Outdoor Side of the Signal Repeater and the Outdoor antenna.

Step 5  Mount your Indoor (inside) antenna in a productive location. You may need to adjust or move the antenna later.

Step 6  Connect coaxial cable between the Indoor antenna and the Signal Repeater output port.

Step 7   Power up the system and check for signal inside the building. If needed, tune system by moving and or pointing the Outdoor and Indoor antennas until they get the most signal possible.

Step 8  Secure all antennas and cables, securely mount the Signal repeater and clean up the installation.



Application situations:

Mobile Signal Booster is specially designed for the "blind zones" of offices, family rooms, underground,parking garage, cars, lifts, elevators, factories, bars,

supermarkets, mountain areas,marines, deserts,high ways,tunnels,etc,

where the signal is very poor. Or in spite of full bar signals on the mobile phone,

there is a break in voice leading to call clarity problem. Simply place the mobile phone booster in such places, you'll be astonished with the huge gain in

both the incoming reception and outgoing transmission,levels as the mobile signal

booster goes to work!
