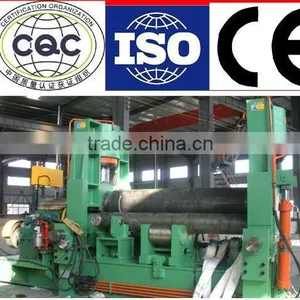

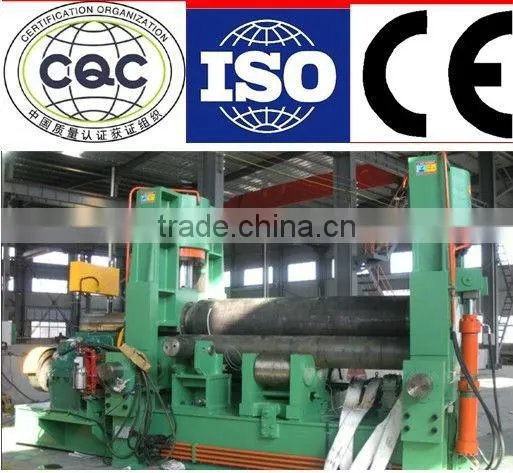

W11S 20*2500 Upper Roller Universal three roll Plate Bending Machine
- 30 Set / Sets per Month
- Shanghai
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Hrui | Model Number: | Hrui W11S 20x2500mm |
Product Description
Specifications
W11S 20*2500 hydraulic three roll plate Bending MachineHydraulic cone device
Up driver roller
With Pre-bending function
W11S 20*2500 Upper Roller Universal 3 rolls Plate Bending Machine
The machine’s use
1. High productivity and good precision for metal sheets bending, different up-die and bottom-die, working for multifarious pieces. One-off bending shaped by one time stroke. Can make complex shapes by repetitious bending work. Can punch with corresponding die.
2. Mechanical stopper in oil cylinder, typical of high feedback precision for position of gliding block ,accurate and stable operation,good synchronizing performance ,and high repeated positioning precision of gliding block.
Model | Plate width | Max. plate thickness | Pre-bending thickness (mm)
| Minimum reel diameter | Plate yield limit (MPa) | Diameter of upper roller (mm) | Diameter of lower roller (mm) | Diameter of side roller (mm) |
W11S-12×4000MM | 4000 | 12 | 8 | 800 | 245 | 380 | 340 | 280 |
W11S-16×3200 | 3200 | 16 | 12 | 800 | 245 | 380 | 340 | 280 |
W11S-20×2500 | 2500 | 20 | 16 | 800 | 245 | 380 | 340 | 280 |
W11S-25×2000 | 2000 | 25 | 20 | 800 | 245 | 380 | 340 | 280 |
W11S-32×2500 | 2500 | 32 | 25 | 1500 | 245 | 520 | 500 | 350 |
W11S-32×4000 | 4000 | 32 | 25 | 1300 | 245 | 650 | 580 | 480 |
W11S-40×3200 | 3200 | 40 | 32 | 1300 | 245 | 650 | 580 | 480 |
W11S-45×2500 | 2500 | 45 | 40 | 13600 | 245 | 650 | 580 | 480 |
W11S-50×2000 | 2000 | 50 | 42 | 1300 | 245 | 650 | 580 | 480 |
W11S-50×3200 | 3200 | 50 | 40 | 1800 | 245 | 680 | 650 | 520 |
CE Certification for our quality machines:
Notes of Both factories:
Jiang Su Hairui CNC Machine Tool Co,.Ltd and Anhui Haili Machine Tool Co., Ltd belongs to the same boss. Both company are focusing on press brake, shearing machine, notching machine and v groover machine , rolling machine and so on! When Hairui factory is newly built up for manufacturing higher standard CNC machines, please understand! We had passed CE, ISO, BV certifications in the past years.
How to reach our factory:
True strength weclome your inspection! Our factory is about 30km far away from Shanghai. You can come here by train or air to Nanjing, which takes you 2 hours at most. We will pick up you from the train station or air port.
Warranty of our machines:
One year warranty for the main components, 5 years for the whole structure.
Professional manufacturer of CNC press brake, shearing machine,
notching machine and v groover machine , rolling machine and so on.
