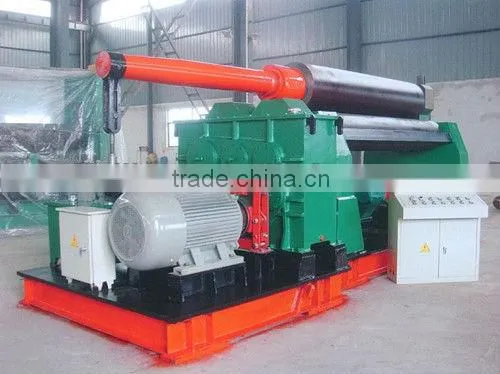

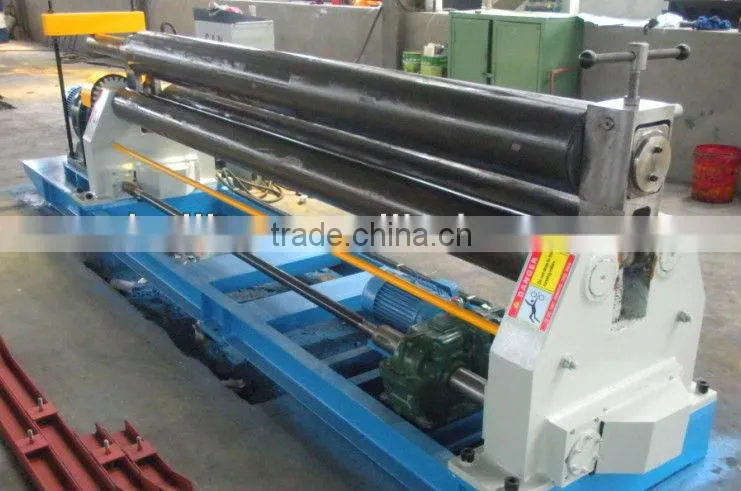

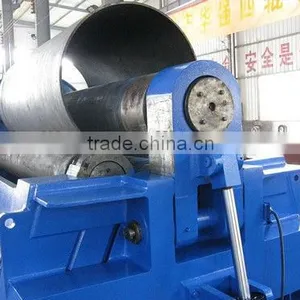

Help CenterW11 Symmetrical Merchanical 3-roll Pipe Bending Machine 20*2500
Related Products
-
Hot Selling W11 Symmetrical Mechanical 3 Roller Hydraulic Plate Rolling MachineUS$ 4,500 - 8,500MOQ: 1 Set -
W11 Symmetrical Merchanical 3-roll Pipe Rolling Machine 20*2500US$ 12,300 - 68,900MOQ: 1 Set
-
W11 Symmetrical Merchanical 3-roll Plate Rolling Machine 20*2500US$ 12,300 - 68,900MOQ: 1 Set
-
W11 Symmetrical Merchanical 3-roll Sheet Metal Rolling Machine 20*2500US$ 12,300 - 68,900MOQ: 1 Set
-
CNC Three Roller Hydraulic Plate Rolling Machine,plate Bending MachineUS$ 12,300 - 68,900MOQ: 1 Set
Specifications
W11 20*2500 3-roll pipe bending machineCheap Price
All welding structure
long using life and high effiency.
ISO&CE
W11 Symmetrical Merchanical 3 roller Plate Bending Machine 20*2500 mm
The machine’s use
1. High productivity and good precision for metal sheets bending, different up-die and bottom-die, working for multifarious pieces. One-off bending shaped by one time stroke. Can make complex shapes by repetitious bending work. Can punch with corresponding die.
2. Mechanical stopper in oil cylinder, typical of high feedback precision for position of gliding block ,accurate and stable operation,good synchronizing performance ,and high repeated positioning precision of gliding block.
Main features:
This machine structure pattern is three-roll symmetrical expression; the upper roll is primarily transmission, the lower roll makes the vertical vibratory movement in order to clamp plate, and through the lower roll gear and the upper roll gear meshing, simultaneously takes the master drive.The structure is compact, the operation service is convenient.
Model |
Plate width |
Max. plate thickness |
Pre-bending thickness (mm)
|
Minimum reel diameter |
Plate yield limit (MPa) |
Diameter of upper roller (mm) |
Diameter of lower roller (mm) |
Diameter of side roller (mm) |
W11S-12×4000MM |
4000 |
12 |
8 |
800 |
245 |
380 |
340 |
280 |
W11S-16×3200 |
3200 |
16 |
12 |
800 |
245 |
380 |
340 |
280 |
W11S-20×2500 |
2500 |
20 |
16 |
800 |
245 |
380 |
340 |
280 |
W11S-25×2000 |
2000 |
25 |
20 |
800 |
245 |
380 |
340 |
280 |
W11S-32×2500 |
2500 |
32 |
25 |
1500 |
245 |
520 |
500 |
350 |
W11S-32×4000 |
4000 |
32 |
25 |
1300 |
245 |
650 |
580 |
480 |
W11S-40×3200 |
3200 |
40 |
32 |
1300 |
245 |
650 |
580 |
480 |
W11S-45×2500 |
2500 |
45 |
40 |
13600 |
245 |
650 |
580 |
480 |
W11S-50×2000 |
2000 |
50 |
42 |
1300 |
245 |
650 |
580 |
480 |
W11S-50×3200 |
3200 |
50 |
40 |
1800 |
245 |
680 |
650 |
520 |
