Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > LOVOL 20KW Direct-power Generator for Sale
LOVOL 20KW Direct-power Generator for Sale
US$ 7,000 - 7,265
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BOBIG/OEM, BOBIG
Model Number:
BL20S
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OEM Kubota Water-cooled Generator Set 12kwNegotiableMOQ: 1 Set -
Yammar Diesel Engines Generating Set 8KWUS$ 2,500 - 500,000MOQ: 1 Set
-
Deutz Brushless Excitation Diesel Generator Set 36KWUS$ 4,000 - 100,000MOQ: 1 Set
-
EPA Diesel Generator 20KW-536KW for SaleUS$ 2,500 - 500,000MOQ: 1 Set
-
Deutz Stamford Alternator Technology Diesel GeneratorNegotiableMOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
BOBIG/OEM, BOBIG
Model Number
BL20S
Output Type
AC Three Phase
Speed
1500rpm/1800rpm
Frequency
50/60Hz
Rated Power
20Kw
Rated Voltage
220V/380V
Rated Current
15A
Specifications
OEM LOVOL direct-power generator1.Lovol diesel engine with copy stamford
2.diesel generator from 10kw to 120KW
OEM LOVOL direct-power generator from 10kw-120kw
- Brand: Stamford or Leroysomer or normal TFW brushless alternator.
- Rated output: 8 to 1000kW (10kva to 1250kva)
- Rated voltage: 400/230V according to your optional
- Rated frequency: 50/60Hz ,
- Power factor: 0.8 /1.0
- Phase: 3-phase, 4-wire or 1 phase
- Connection: Y or other type connection .
- Rated speed: 1,500rpm/1,800rpm
- Excitation: harmonic excitation or phase compound or brushless
- Voltage regulation: automatic
- 1.0% voltage regulation (maximum) in static conditions
- Protection class: IP22 or IP23

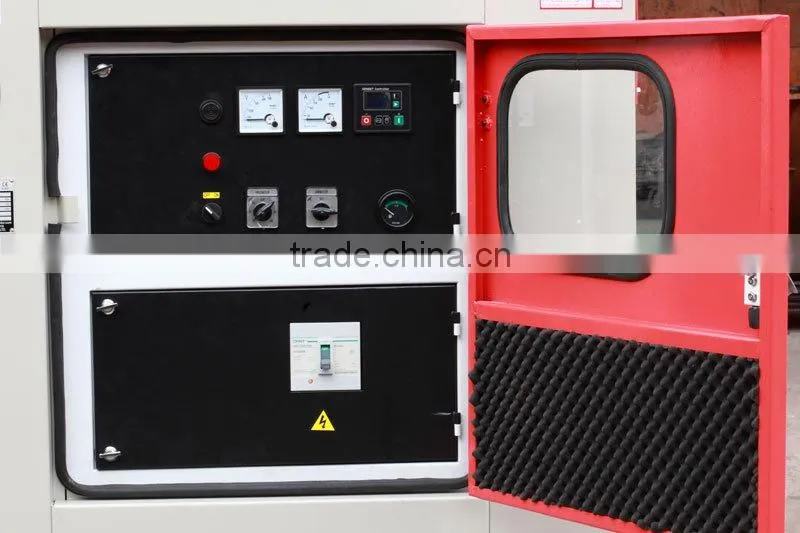

- Control panel:
- The generator control panel is manufactured locally
- The panel is provided with:
- Standard engine instrumentation
- Voltmeter with selector switch
- Ammeter with selector switch
- Frequency meter
- Current transformers.
- Instrument fuses duly wired and ferruled
- Mcb of suitable rating with overload and short circuit protection
- With AMF control panel or with ATS (automatic transfer system)
- With EPA certification
| Model | GF2-24 | GF2-34 | GF2-50 | GF2-80 | GF2-100 | |
| Rated Powe(KW/KVA) | 24/30 | 34/42.5KVA | 50/62.5KVA | 80/90 | 112/120 | |
| ENGINE | Engine Model | 1003G | 1003TG | 1004TG | 1006TG2A | 1006TAG |
| Rated Output(KW) | 28 | 45 | 55 | 90 | 120 | |
| Max Output(KW) | 31 | 50 | 61 | 100 | 133 | |
| Starting method | Electric starting | |||||
| Intaking method | Natural apirated | Turbocharged | Turbocharged intercooled | |||
| Fuel consumption(g/kw.h) | ≤205 | ≤208 | ≤205 | |||
| Cooling Starting Method | Closed water cooled/electric starting | |||||
| ALTERNATOR | Model | 184G | 224C | 224E | 274C | 274D |
| Rated Output(KW)(KVA) | 24(30) | 34(43) | 50(63) | 80(100) | 100(125) | |
| Rated Voltage(V) | 400/230V | |||||
| Frequency(HZ) | 50/60 | |||||
| Power Factor | 0.8 lagging | |||||
| Phase/Connection | 3-phase 4-wire Y-type connection | |||||
| Excitation | Harmonic or Brushless Excitation | |||||
| Voltage Regulation | Manual/Automatic | |||||
| Net Weight(kg) | 520 | 580 | 850 | 1200 | 1450 | |
| Packing Size LWH(cm) | 160*75*125 | 160*75*125 | 190*85*125 | 220*92*130 | 240*95*146 | |
| Terms & conditions: | |||
| Packing: plywood | |||
| Warranty: 12 months or 1500hours from the date of purchase whichever comes first,filter,belts, | |||
| gaskets,or some parts which are easy to consume is not included. | |||
| Production time: Within 40 working days depending on different powers and quantity | |||
| Term of Payment: 30% deposit before production, the balance shall be paid before delivery by T/T. | |||
We are pleased to quote and of helpness for your special details.

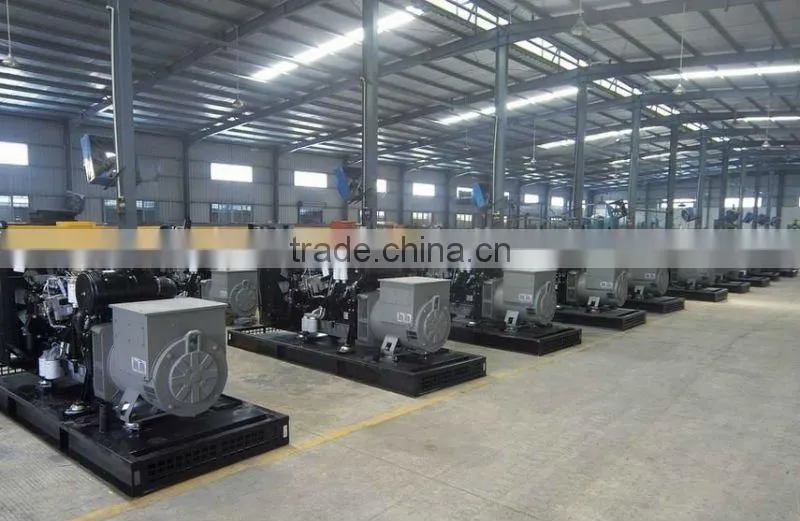

To know a real BOBIG factory:
Please Check our Factory Audit Report by BV
(you can download the report from our homepage)
