Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 45KW Deutz Series Generator Set
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Deutz
Model Number:
GF
Payment & Shipping
Payment Methods:
Port of Shipment:
fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
Deutz
Model Number
GF
Output Type
AC Three Phase
Speed
1500/1800r/min
Frequency
50HZ/60HZ
Rated Power
8kw-536kw
Rated Voltage
400/230V

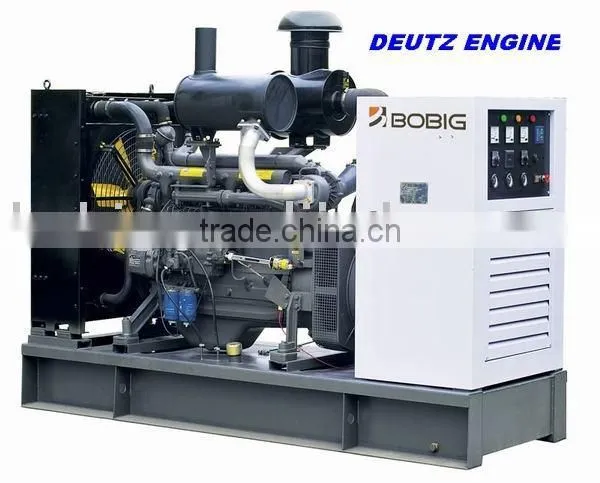

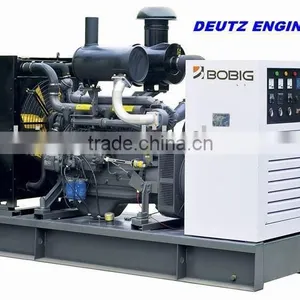

45KW DETUZ SERIES DIESEL GENERATOR
| MAIN SPECIFICATION | ||
| Model | BD55S/BD55 | |
| Power(kw/kva) | 40/50 | |
| ENGINE | Engine Model | TD226B-3D |
| Rated Output(KW) | 45 | |
| Max Output(KW) | 50 | |
| Cooling method | Closed water cooled | |
| Governing method | Electronic | |
| Intaking method | Turbocharged | |
| Cylinder numbers | 3 | |
| Fuel consumption(g/kw.h) | ≤208 | |
| Bore/stroke(mm) | 105/120 | |
| Displacement(L) | 3.12 | |
| Oil volume(L) | 7.25 | |
| Steady speep droop(%) | ≤1% | |
| Type | Water cooling, in-line, four-stroke, humid cylinder liner,direct injection | |
| Crankshaft rotation direction | Counterclockwise(face to output end) | |
| ALTERNATOR | Model | BW-224D |
| Rated Output(KW)(KVA) | 40/50 | |
| Rated Voltage(V) | 380/220V(According to your request) | |
| Frequency(HZ) | 50 | |
| Power Factor | 0.8 lagging | |
| Phase/Connection | 3-phase 4-wire Y-type connection | |
| Excitation | Harmonic or Brushless Excitation | |
| Voltage Regulation | Manual/Automatic | |
| Dimension(mm) | 2300*1000*1250 | |
| Weight(KG) | 1000KG | |
Warranty:Guarantee for one year or 1200hours from ex-factor date.During the repair time,BOBIG COMPANY will provide the free easy-damageable spare arts of diesel engine caused by our quality of production or raw material.After expiration,BOBIG COMPANY will supply cost spare part for you to repair it.
Manufacturing standard:
ISO9001,EPA,CE and .......
For more detail information,pls feel free to contact with us.
