Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Deutz Power Generator
US$ 5,000 - 15,898
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BOBIG
Model Number:
BD
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
BOBIG
Model Number
BD
Output Type
AC Three Phase
Speed
1500/1800RPM
Frequency
50/60HZ
Rated Power
24KW TO 120KW
Rated Voltage
400/230V
Rated Current
43.2-216A
Specifications
Deutz Power Generator1.DEUTZ engine
2.Electric starting
3.closed water cooled
4.3-phase, 4-wire, Y-type,brushless

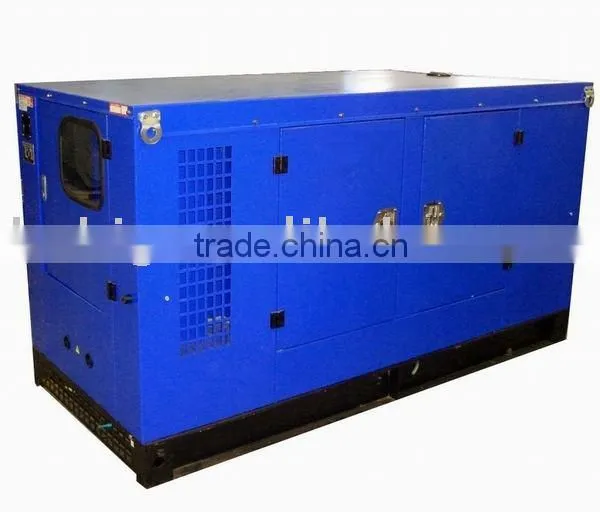

Deutz Power Generator
| BOBIG-DEUTZ 226B SERIES DIESEL GENERATING SET | |||||||
| Model | GF-24 | GF-36 | GF-50 | GF-75 | GF-100 | GF-120 | |
| ENGINE | Engine Model | D226B-3D | TD226B-3D | TD226B-4D | TD226B-6D | TBD226B-6D | TBD226B-6D/13023811 |
| Rated Output(KW) | 30 | 45 | 60 | 90 | 120 | 132 | |
| Max Output(KW) | 33 | 51 | 66 | 99 | 132 | 145.2 | |
| Starting method | Electric starting | ||||||
| Cooling method | Closed water cooled | ||||||
| Governing method | Mechanical | ||||||
| Intaking method | Natural apirated | ||||||
| Cylinder numbers | 3 | 4 | 6 | ||||
| Fuel consumption(g/kw.h) | ≤208 | ≤205 | |||||
| Bore/stroke(mm) | 105/120 | ||||||
| Displacement(L) | 3.12 | 4.16 | 6.23 | ||||
| Oil volume(L) | 7.25 | 13 | |||||
| Type | Water cooling, in-line, four-stroke, humid cylinder liner,direct injection | ||||||
| Crankshaft rotation direction | Counterclockwise(face to output end) | ||||||
| Model | 184G | 184H | 224E | 274C | 274D | 274FS | |
| Rated Output(KW)(KVA) | 24(30) | 36(45) | 50(62.5) | 75(94) | 100(125) | 120(150) | |
| Rated Voltage(V) | 400/230V | ||||||
| Rated Current(A) | 43.2 | 64.8 | 90 | 135 | 180 | 216 | |
| Frequency(HZ) | 50/60 | ||||||
| Power Factor | 0.8 lagging | ||||||
| Phase/Connection | 3-phase 4-wire Y-type connection | ||||||
| Excitation | Harmonic or Brushless Excitation | ||||||
| Voltage Regulation | Manual/Automatic | ||||||
| Net Weight(kg) | 650 | 660 | 800 | 1300 | 1450 | 1600 | |
| Packing Size LWH(cm) | 168*70*150 | 168*70*150 | 200*70*150 | 245*909*170 | 250*90*185 | 260*90*185 | |
