Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > BOBIG Water Cooled Diesel Generator Set Powered by Lovol 30 kw

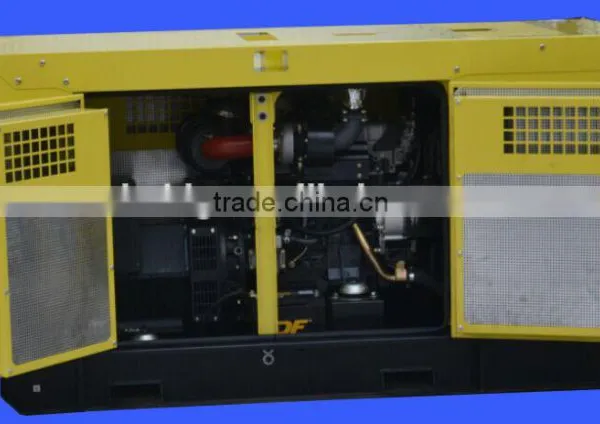

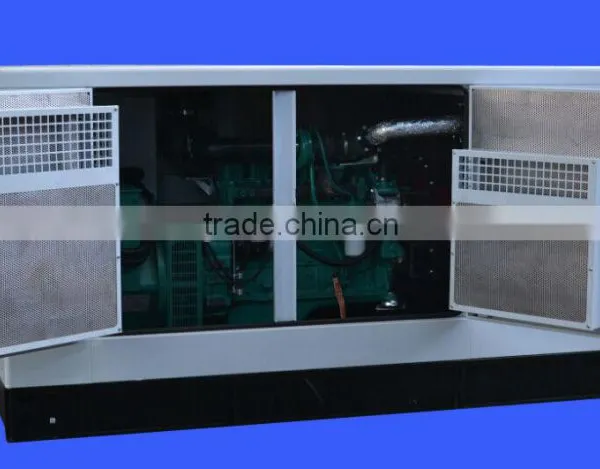

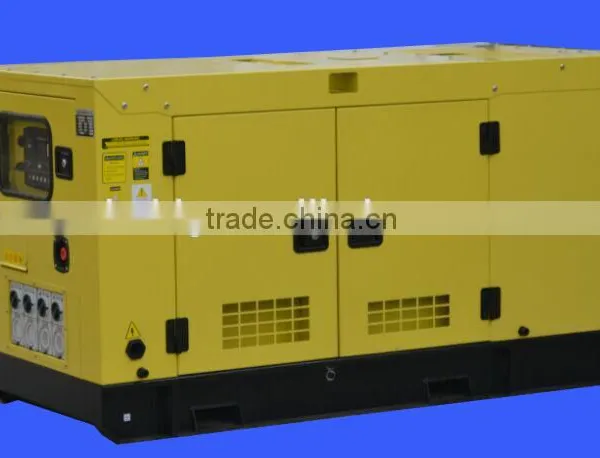

BOBIG Water Cooled Diesel Generator Set Powered by Lovol 30 kw
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BOBIG
Model Number:
BL35 BL35S
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20-120kw Lovol Diesel GeneratorNegotiableMOQ: 1 Set -
LOVOL Diesel Generator SetUS$ 2,500 - 300,000MOQ: 1 Set
-
Factory Direct-Lovol Engine Power Generator CE,EPAUS$ 7,000 - 7,265MOQ: 1 Set
-
Factory Direct-220 Volt Generator Power Generator CE,EPAUS$ 7,000 - 7,265MOQ: 1 Set
-
Factory Direct- Power Generator With Brand Generator Control Panel CE,EPAUS$ 7,000 - 7,265MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
BOBIG
Model Number
BL35 BL35S
Speed
1500RMP
Frequency
50HZ
Rated Power
24
Rated Voltage
optional
Diesel Generator 100kva generator LOVOL water cooled engine from 24kw to 110KW
Specifications
OEM,LOVOL 100kva generator
1.Original LOVOL generator engine
2.original stamford 100kva generator
3.CE,ISO9001
| 1) Output range: 24KW - 110kW diesel generator set |
| 2) Engine model: 1003G,1003TG,1004G,1004TG,1006TG3A,1006TG2A,1006TAG |
| 3) Alternator: Stamford, Leroy Somer, Marathon series |
| 4) Water-cooled |
| 5) 8hrs operation base tank |
| 6) Key start / auto start |
| 7) Sound-proof / weather-proof canopy is optional |
| 8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output |
| 9) Frequency: <3% |
| 10) Frequency at stable state: <0.5% |
| 11) Frequency deviation at instantaneous state: ≤+10% |
| 12) Frequency return time: ≤3s |
| 13) Voltage deviation at stable state: ≤+ -1% |
| 14) Voltage deviation at instantaneous state: ≤+20% |
| 15) Voltage return time: ≤4s |
| 16) Voltage modulation: ≤0.3% |
| 17) Standard configuration of gensets: |
| A) Engine: LOVOL diesel engine diesel generator set |
| B) Engine type: Water-cooled, in line four-stoke, dry cylinder liner, direct injection |
| C) Alternator: Brushless and "H" class insulation |
| 18) Control system: |
| A) Automatic alarm system: The unit has the acousto-optics alarm system and |
| Arrestor for any situation as the start defeat, the water is over temperature, |
| The oil pulls down, over speed, over load and over current |
| B) Operation display: |
| I) Unit voltage, tri-phase load current and frequency display |
| Ii) Water temperature, oil pressure display |
| Iii) Fuel level, fuel temperature display |
| Iv) Audible and visual alarm lamps and buzzers |
| 19) Starting system: DC alternator is used to start engine |
| 20) Short circuit protection: MCCB air switch |
| 21) Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40 degree |
| 22) Filter system: Oil, fuel and air filter |
| 23) Accessories: Exhaust elbow, bellow, muffler |
| 24) Supply standard collocation: |
| A) Diesel engine with all accessories, 3 filter, electric systems |
| B) Alternator |
| C) Steel structure |
| D) Fan and water tank cooling system |
| E) Flange connector |
| F) 12 / 24V starting motor and charge engine |
| G) Air cleaner, fuel cleaner, oil cleaner |
| H) On-board control panel |
| Warranty:Guarantee for one year or 1200hours from ex-factor date.During the repair time,BOBIG COMPANY will provide the free easy-damageable spare arts of diesel engine caused by our quality of production or raw material.After expiration,BOBIG COMPANY will supply cost spare part for you to repair it. |
| Manufacturing standard: |
| ISO9001,EPA,CE and ....... |
| For more detail information,pls feel free to contact with us. |
