Home > Products > Powered by Lovol > Factory direct- Power Generator with brand generator control panel CE,EPA
Factory direct- Power Generator with brand generator control panel CE,EPA
USD $7,000 - $7,265
/ Set
1 Set(Min.Order)
- 500 Set / Sets per Month
- FUZHOU
- T/T
You May Like
Product Details
Place of Origin: | Fujian, China | Brand Name: | BOBIG | Model Number: | BL20S |
Output Type: | AC Three Phase | Speed: | 1500rpm/1800rpm | Frequency: | 50/60HZ |
Rated Power: | 20kw | Rated Voltage: | 220V/380V | Rated Current: | 15A |
Product Description
Specifications
generator control panelLovol diesel engine with copy stamford
diesel generator from 10kw to 120kw
160*75*125cm,680kg,50/60
generator control panel
- Brand: Stamford or Leroysomer or normal TFW brushless alternator.
- Rated output: 8 to 1000kW (10kva to 1250kva)
- Rated voltage: 400/230V according to your optional
- Rated frequency: 50/60Hz ,
- Power factor: 0.8 /1.0
- Phase: 3-phase, 4-wire or 1 phase
- Connection: Y or other type connection .
- Rated speed: 1,500rpm/1,800rpm
- Excitation: harmonic excitation or phase compound or brushless
- Voltage regulation: automatic
- 1.0% voltage regulation (maximum) in static conditions
- Protection class: IP22 or IP23

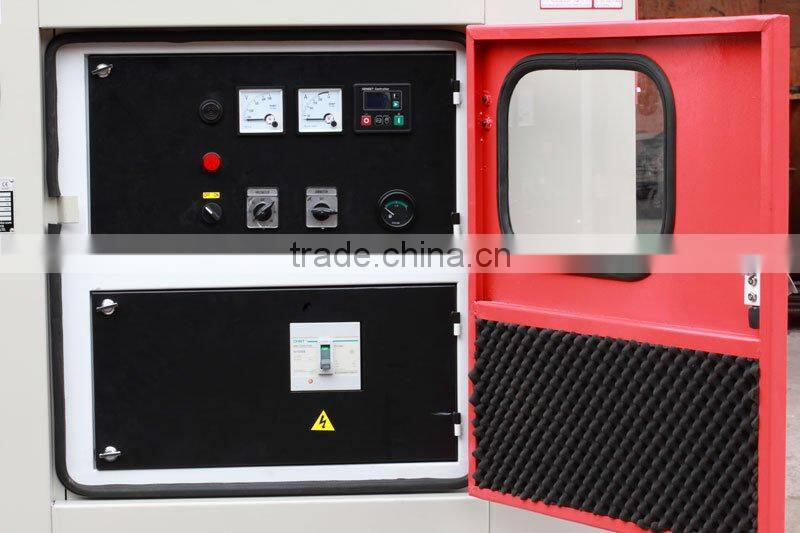

- Control panel:
- The generator control panel is manufactured locally
- The panel is provided with:
- Standard engine instrumentation
- Voltmeter with selector switch
- Ammeter with selector switch
- Frequency meter
- Current transformers.
- Instrument fuses duly wired and ferruled
- Mcb of suitable rating with overload and short circuit protection
- With AMF control panel or with ATS (automatic transfer system)
- With EPA certification
Model | GF2-24 | GF2-34 | GF2-50 | GF2-80 | GF2-100 | |
Rated Powe(KW/KVA) | 24/30 | 34/42.5KVA | 50/62.5KVA | 80/90 | 112/120 | |
ENGINE | Engine Model | 1003G | 1003TG | 1004TG | 1006TG2A | 1006TAG |
Rated Output(KW) | 28 | 45 | 55 | 90 | 120 | |
Max Output(KW) | 31 | 50 | 61 | 100 | 133 | |
Starting method | Electric starting | |||||
Intaking method | Natural apirated | Turbocharged | Turbocharged intercooled | |||
Fuel consumption(g/kw.h) | ≤205 | ≤208 | ≤205 | |||
Cooling Starting Method | Closed water cooled/electric starting | |||||
ALTERNATOR | Model | 184G | 224C | 224E | 274C | 274D |
Rated Output(KW)(KVA) | 24(30) | 34(43) | 50(63) | 80(100) | 100(125) | |
Rated Voltage(V) | 400/230V | |||||
Frequency(HZ) | 50/60 | |||||
Power Factor | 0.8 lagging | |||||
Phase/Connection | 3-phase 4-wire Y-type connection | |||||
Excitation | Harmonic or Brushless Excitation | |||||
Voltage Regulation | Manual/Automatic | |||||
Net Weight(kg) | 520 | 580 | 850 | 1200 | 1450 | |
Packing Size LWH(cm) | 160*75*125 | 160*75*125 | 190*85*125 | 220*92*130 | 240*95*146 |
Terms & conditions: | |||
Packing: plywood | |||
Warranty: 12 months or 1500hours from the date of purchase whichever comes first,filter,belts, | |||
gaskets,or some parts which are easy to consume is not included. | |||
Production time: Within 40 working days depending on different powers and quantity | |||
Term of Payment: 30% deposit before production, the balance shall be paid before delivery by T/T. |
We are pleased to quote and of helpness for your special details.
