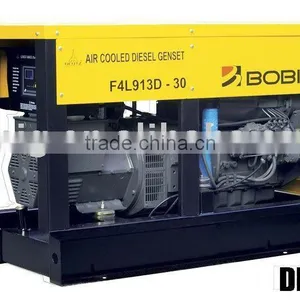

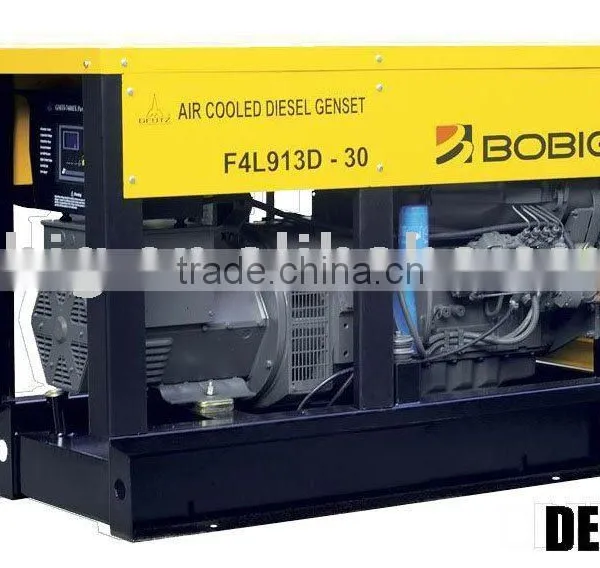

Air Cooled Diesel Generator
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Bobig
Model Number:
GF-D20
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
Bobig
Model Number
GF-D20
Output Type
AC Three Phase
Speed
1500/1800RPM
Frequency
50/60HZ
Rated Power
20KW
Rated Voltage
400/230V
Rated Current
36AH
Specifications
air cooled diesel generator1. Deutz Engine
2. Air-cooled
3. Copy Stamford Alternator
4. Brushless excitation
air cooled diesel generator
| Model | GF2-D20 | |
| Engine Model | F3L912 | |
| Engine Continue Power(KW) | 1500rpm | 24 |
| 1800rpm | 28 | |
| Combustion System | Direct injection | |
| Cycle | Vertical 4-Stroke ari-cooled direct injection | |
| Governing method | Machine Governor | 5% |
| Electronic Governor | 1% | |
| Intaking method | Natural apirated | |
| Cylinder numbers | 3 | |
| Bore/stroke(mm) | 100/120 | |
| Displacement(L) | 2.828 | |
| Compression ratio | 17 | |
| Engine Maximum Power(KW) | 1500RPM | 26 |
| 1800RPM | 30 | |
| Crankshaft rotation direction | Counterclockwise(face to output end) | |
| Fuel consumption(g/kw.h) | 1500rpm | 230 |
| 1800rpm | 232 | |
| Generator Power(KW) | Prime(continue) | 20 |
| Standby(Maximum) | 22 | |
| Lubrication System Capacity(L) | 11 | |
| Lubrication Oil Consumption | 1% | |
| Combustion Air Flow (m3/min) | 2.12 | |
| Exhaust Gas Flow(m3/min) | 2.18 | |
| Exhaust Gas Temperature() | 500 | |
| Area of Heat Dissipation() | 0.12 | |
| Electric system | 12V/24V | |
| Net Weight(kg) | 680 | |
| Packing Size LWH(cm) | 170*80*125 | |
