Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Generating Set
Generating Set
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Bobig
Model Number:
GF2-36
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
China
Brand Name
Bobig
Model Number
GF2-36
Output Type
AC Three Phase
Speed
1500/1800RPM
Frequency
1500/1800RPM
Rated Power
50/60HZ
Rated Voltage
400/230V
Specifications

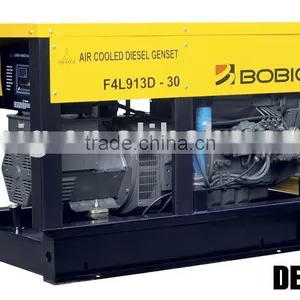

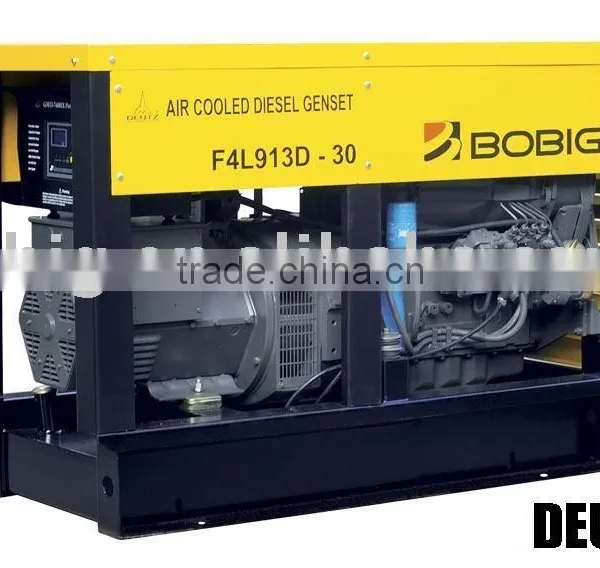

Generating Set1. Deutz engine
2. Air cooled
3. Copy stamford alternator
4. Brushless excitation
Generating Set
| Model | GF2-36 | |
| Engine Model | F4L912T | |
| Engine Continue Power(KW) | 1500rpm | 41 |
| 1800rpm | 48 | |
| Combustion System | Direct injection | |
| Cycle | Vertical 4-Stroke ari-cooled direct injection | |
| Governing method | Machine Governor | 5% |
| Electronic Governor | 1% | |
| Intaking method | Turbo charging | |
| Cylinder numbers | 6 | |
| Bore/stroke(mm) | 100/120 | |
| Displacement(L) | 3.77 | |
| Compression ratio | 17 | |
| Engine Maximum Power(KW) | 1500RPM | 45 |
| 1800RPM | 52 | |
| Crankshaft rotation direction | Counterclockwise(face to output end) | |
| Fuel consumption(g/kw.h) | 1500rpm | 218 |
| 1800rpm | 220 | |
| Generator Power(KW) | Prime(continue) | 36 |
| Standby(Maximum) | 40 | |
| Lubrication System Capacity(L) | 12 | |
| Lubrication Oil Consumption | 1% | |
| Combustion Air Flow (m3/min) | 3.61 | |
| Exhaust Gas Flow(m3/min) | 3.71 | |
| Exhaust Gas Temperature() | 550 | |
| Area of Heat Dissipation() | 0.16 | |
| Electric system | 12V/24V | |
| Net Weight(kg) | 880 | |
| Packing Size LWH(cm) | 185*80*125 | |
