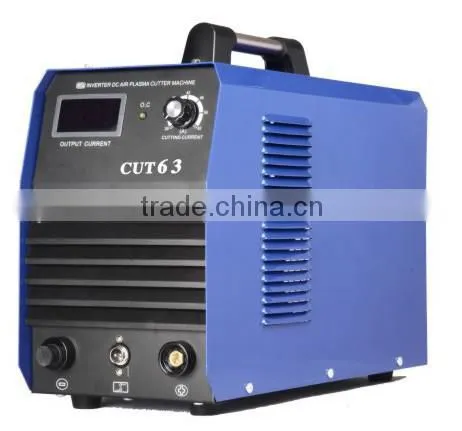

CUT63 Plasma Arc Cutting Machine Manual Cutter Inverter Cut Machine

CUT63 Plasma Arc Cutting Machine Manual Cutter Inverter Cut Machine thumbnail-1
CUT63 Plasma Arc Cutting Machine Manual Cutter Inverter Cut Machine photo-1
US$ 260 - 320 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
Honghui
Contact Supplier Request Quote Chat Now
Zhangzhou Honghui Electrical Equipment Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Fujian, China
Brand Name Honghui
Model Number CUT 60
Voltage AC380V±15%
Rated Power 60w
Dimension(L*W*H) 480*204*360
Weight 15kg
Certification CCC CE
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas



Product Description

Features of CUT 63 plasma cutting machine



1. Plasma ARC cutting function

2. Easy to cut thicker metals in a fast and economical way.

3. Suitable for cutting stainless steel, mild steel, aluminum and other metals

4. Easy to operate, smooth cutting performance

5. Cutting thickness from 1mm to 16mm




Parameters of plasma cutting machine
Input Volatge (V) AC380V±15%
Frequency     (Hz) 50/60Hz
Rated Input Current(A) 12
No-load voltage  (V) 295
Output Current Range (A) 20-60A
Rated Output Voltage (V)  105
Duty Cycle (%)  60
Diamension(mm) 480*204*360
No-load Loss(W) 60
Efficiency (%) 85
Arcing way Contact
Recommended air pressure(Mpa) 0.3-0.4
Cutting thickness(mm) 1-25
Power Factor 0.93
 Insulation Grade F
Housing Protection Grade IP21S
Net weight ( Kg) 15

Below are the accessories of CUT 63, the standard is

Torch SG-55        Earth clamp 3m, 10mm², 300A       Gas regulator
 CUT63 plasma arc cutting machine manual cutter inverter cut machine







Our Services



  • 12 months warranty
  • Any after sale questions will be replied in 24 hours
  • Free installing and operating train



Company Information

By gaining the certificate requirements of the ISO 9001:2000, our company has well developed a full range of products which have been certified with the CE,CCC certifcates by the authority organization.  The Products consist of ten series, which over 100 models in total:



Inverter MMA Welder Series



Inverter TIG DC Welder Series



Inverter MMA/TIG Welder Series



Inverter TIG AC/DC Welder Series



Inverter MIG Full Function Welder Series



Plasma Cutting Series



Inverter MIG/MAG Welder Series



Inverter IGBT TUBE MIG/MAG Welder Series

 CUT63 plasma arc cutting machine manual cutter inverter cut machine
