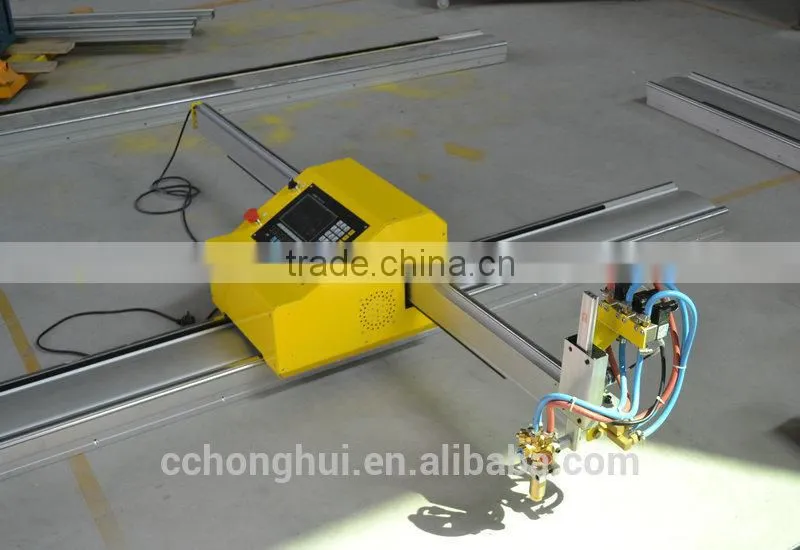

Help CenterPortable Cnc Gas Cut Machine for 5 to 150mm Sheets
Related Products
-
Mini Smart Cnc Cutting Machine Steel Cutter Aluminum Cut MachineryUS$ 9,200 - 15,000MOQ: 1 Set -
3m*10m Heavy Gantry Cnc Cutting Machine Automatic Cut Machine High Speed and PrecisionUS$ 13,500 - 22,500MOQ: 1 Set
-
Light Weight Movable Cnc Cut Machine Smart Cnc CutterUS$ 1,980 - 2,580MOQ: 1 Set
-
Gantry Cnc Cutting Machine Gas Cutter Stable Heavy Duty Cut Steel AluminumUS$ 16,500 - 25,500MOQ: 1 Set
-
Movable Portable Cnc Cut Machine Aluminum Alloy Guide Rail LightweightUS$ 1,880 - 2,580MOQ: 1 Set
With the properties of good quality, high precision and strong operability, portable cnc gas cut machine can cut mild steel sheets of different thickness. It is widely used in shipbuilding, light industry machinery and other manufacture with the advantages of easy to install, light weight and take less space.

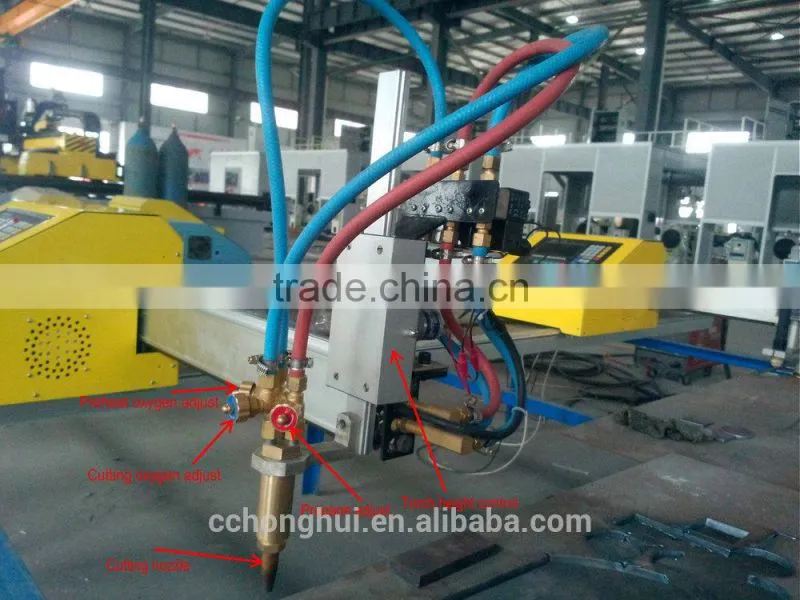

The main structure and features of portable cnc gas cut machine
1. Automatic memory function when power off or emergency stop.
2. Auto alarm function when faced with a mistake or arc breaking.
3. Multilanguage(English, Russian, French, Germany, Portuguess, Spanish ect) switch on the interface.
4. 7" LCD touch screen, convenient design, easy to operate.
5. Any CAD files after nesting can be read directly through U-disk.
6. With emergency stop button on one side of machine box.
The configuration and parameters of portable cnc gas cut machine
| Configuration | |||||
| Drive motor | Stepper motor | ||||
| Reducer | planetary | ||||
| Crossbeam guide rail | Aluminum alloy | ||||
| Guide rail | Aluminum alloy guide rail | ||||
| CNC system | SJTU-SK system | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | THC | ||||
| Flame cutting torch | Xinsanhu | ||||
| Cutting gas | Oxygen and propane or acetylene | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Cutting thickness | 5 to 150mm | ||||
| Cutting speed | 50 to 1500 mm/min | ||||
| Travel speed | 1 to 3000 mm/min | ||||
| Cutting width | 0.5m less than track width | ||||
| Cutting length | 1m less than track length | ||||
| Cutting material | mild steel | ||||
| Operation language | Multilanguage | ||||
Our services
- 12 months warranty
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Size, logo, configuration, color can be customized
- Installing and cutting video can be provided
- Engineers are available to service aboard
Company profile
With over 20000 square meters area, Zhangzhou Xinsanhu Intelligent Cutting Machine Co.,Ltd has been specializing in various cnc cutting machines for many years.
