light weight movable cnc cut machine smart cnc cutter
USD $1,980 - $2,580
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- Xiamen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
1600 ton Heavy Duty Hydraulic Used Car Body Cutting Gantry Shear Machine OEM Accecpted
-
1600 Ton Heavy Duty Hydraulic Used Car Shell Gantry Type Shear Machine OEM Available
-
4axis 5axis Large size and thickness(0-40mm) cnc plasma cutting machine
-
Automatic cnc plasma cutting machine gate cnc router 120a/200a
-
Fully automatic 20mm plasma cutting machine custom size high quality
-
200mm pipe table axe for plasma metal cutting machine spare parts in weifang
Product Details
| Condition: | New | Place of Origin: | Fujian, China | Brand Name: | Xinsanhu |
| Model Number: | BXCNC series | Voltage: | 220V | Dimension(L*W*H): | 2.1m*4m |
| Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

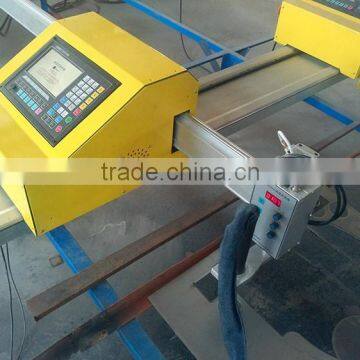

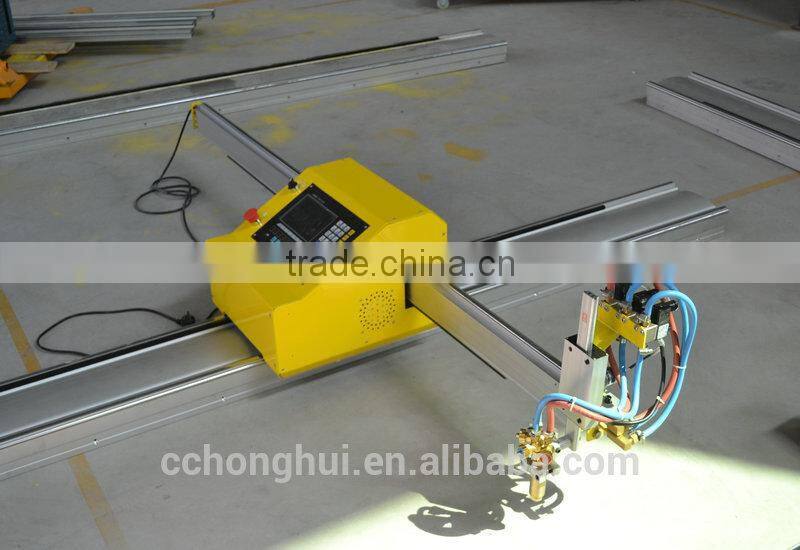

With the properties of good quality, high precision and strong operability, portable cnc gas cutting machine can cut mild steel sheets of different thickness, cutting ability is comparable with laser cutting when price is much lower. It is widely used in shipbuilding, light industry machinery and other manufacture with the advantages of easy to install, light weight and take less space.
Portable CNC oxy fuel cutting machine can cut 5 to 150mm sheets by using different cutting torch size.
The configuration and parameters of portable cnc oxy fuel cutting machine
| Configuration | |||||
| Drive motor | Stepper motor | ||||
| Reducer | planetary | ||||
| Crossbeam guide rail | Aluminum alloy guide rail | ||||
| Guide rail | Aluminum alloy guide rail | ||||
| CNC system | SJTU-SK (START optional) | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | Automatic THC | ||||
| Flame cutting torch | Xinsanhu | ||||
| Cutting gas | Oxygen and propane or acetylene | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Cutting thickness | 5 to 150mm | ||||
| Cutting speed | 50 to 5000 mm/min | ||||
| Travel speed | 1 to 8000 mm/min | ||||
| Cutting width | 0.5m less than track width | ||||
| Cutting length | 1m less than track length | ||||
| Cutting material | mild steel | ||||
| Operation language | Multilanguage | ||||

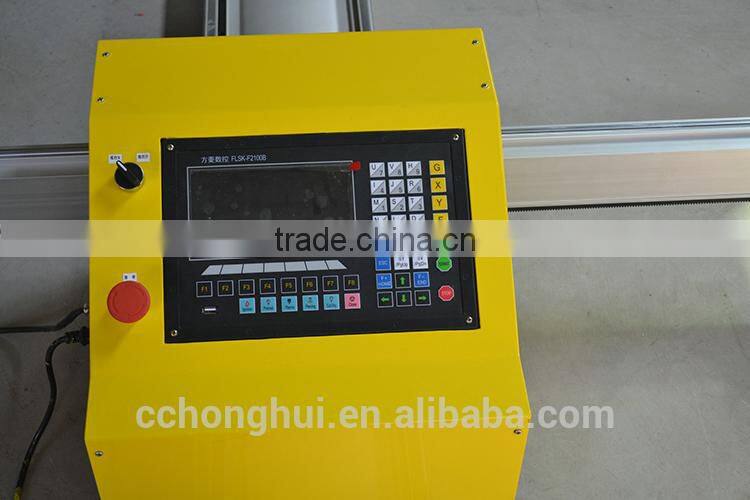

SJTU-SK 2100 numeric control system, with 42 standard graphics multilanguage optional 7" LCD screen
Our services
- 12 months warranty
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Size, logo, configuration, color can be customized
- Installing and cutting video can be provided
- Engineers are available to service aboard
