cnc cut machine for boiler ship building and steel fabrication
- 100 Set / Sets per Month
- Xiamen port
- T/T L/C D/P D/A Credit Card PayPal
- REBOUND CNC plasma cutting machinery with bevel head 30mm
- REBOUND cnc detachable gantry plasma and flame cutting machinery sheet
- Best price cnc detachable plasma cutting machinery for gas-plasma cutting
- helical rack and pinion cnc detachable plasma cutting machinery automatic high safety level
- pump inside air detachable plasma cutting machinery sliding work bench
- solenoid valve for detachable plasma cutting machinery lokermann high safety level
Product Details
Condition: | New | Place of Origin: | Fujian, China | Brand Name: | Xinsanhu |
Model Number: | CNCTG series | Voltage: | 220V | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
The main structure and features of cnc cutting machine
- The beam adopts enhanced wide body box structure and endframe adopts low center of gravity, make the equipment durable and symmetric. All the welding points are stress released to ensure the whole rigidity strength and dynamic balance.
- The machine is equipped with gear rack, servo motor and planetary reducer on both horizontal and vertical direction, the horizontal move adopts high precision drive rail and steel belt, can transmit stably on the same or specular direction between master-slave cutting torches.
- Crossbeam drive adopts PMI linear guide rail , to ensure the moving accuracy and cutting quality.
- Well performed Thermadyne, Hypertherm and Kjellberg plasma power supply optional
- Automatic memory function when power off or emergency stop.
- Auto alarm function when faced with a mistake or arc breaking.
- Multilanguage(English, Chinese, French, Germany, Portuguess, Spanish ect) switch on the interface.
- 17" LCD touch screen, convenient design, easy to operate.
The configuration and parameters of cnc plasma cutter for steel fabrication
Configuration | |||||
Structure | Wide body intensive welding box structure | ||||
Drive motor | Panasonic servo motor | ||||
Reducer | Shimpo reducer | ||||
Crossbeam guide rail | PMI linear guide rail | ||||
Guide rail | 38kg heavy guide rail | ||||
CNC system | SJTU-SK (Hypertherm Micro EDGE, EDGE PRO optional) | ||||
Nesting software | FASTCAM | ||||
Automatic height controller | HYD arc voltage THC | ||||
Plasma power supply | Thermadyne, Hypertherm and Kjellberg | ||||
Specification | |||||
Voltage | 220V | ||||
Working temperature | - 10°C -45°C | ||||
Humidity | <95%, no condensation | ||||
Crossbeam width | ≥500mm | ||||
Cutting thickness | 0.5 to 50mm | ||||
Cutting speed | 50 to 8000 mm/min | ||||
Travel speed | 1 to 12000 mm/min | ||||
Cutting width | 2.2 meters | ||||
Cutting length | 10 meters | ||||
Torch lifting height | 200mm | ||||
Cutting material | mild steel, stainless steel, aluminium etc | ||||
Operation language | Multilanguage |
Main parts of cnc cutting machine
CNC SYSTEM HORIZONTAL DRIVING SYSTEM
PLASMA SOURCE VERTICAL DRIVING SYSTEM
Plasma power supply optional, we have ordinary type and high precision type of Thermadyne, Kjellberg and Hypertherm for your choice.
Our services
- 12 months warranty
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Size, logo, configuration, color can be customized
- Installing and cutting video can be provided
- Engineers are available to service aboard

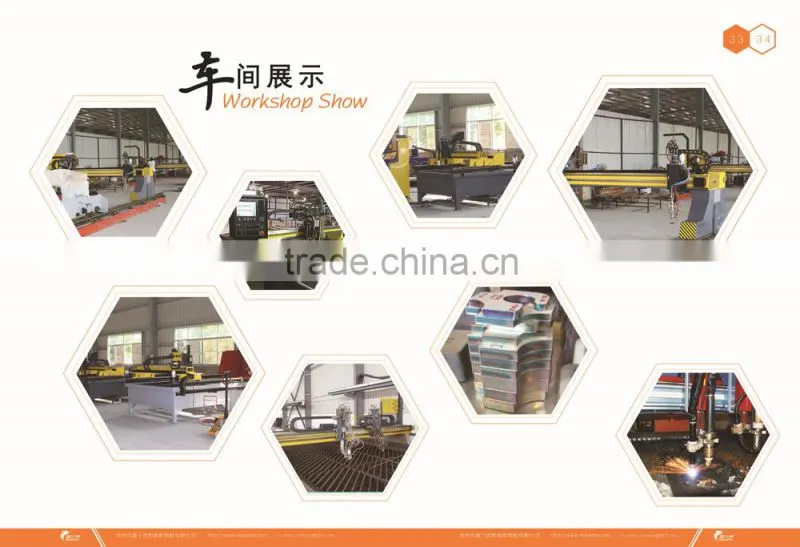

Company profile
With over 20000 square meters area, Zhangzhou Xinsanhu Intelligent Cutting Machine Co.,Ltd has been specializing in various cnc cutting machines for many years.
