Table Cnc Plasma Machine, Cutting Table Plasma
US$ 12,800 - 28,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
Zhangzhou Xinsanhu
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Cnc Gas Cutting Machine, Cnc Gas CutterUS$ 1,950 - 2,850MOQ: 1 Set -
Portable Cnc Gas and Plasma Dual Use Cutting MachineUS$ 2,550 - 3,250MOQ: 1 Set
-
Portable Cnc Cutting Machine, Mini Flame CutterUS$ 1,950 - 2,850MOQ: 1 Set
-
Cnc Plasma Cutting Table, Metal Cut Machine, Cutting TableUS$ 16,800 - 28,000MOQ: 1 Set
-
Gantry nc Plasma Cut Machine, Automatic Steel CutterUS$ 10,000 - 30,000MOQ: 1 Set
Condition
New
Place of Origin
Fujian, China
Brand Name
Zhangzhou Xinsanhu
Model Number
TSCNC series
Voltage
220V
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas

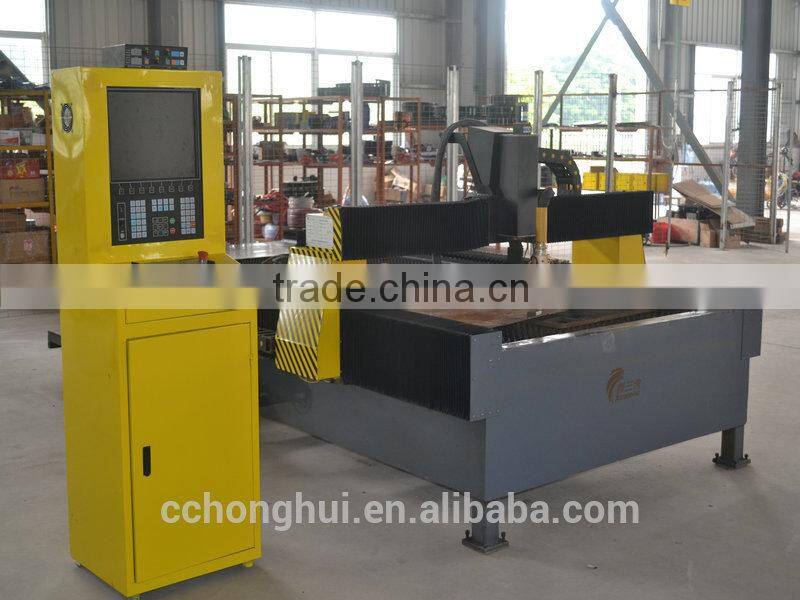

CNC plasma cutting table adopts integrated frame type cutting table, can be equipped with zigzag or straight bar on the table surface.
cnc plasma cutting table have excellent performance when cutting thin sheets, both horizontal and vertical is equipped with dust cover to make sure the cutting accuracy will not affected by dusts.
The configuration and parameters of cnc plasma cutting table
| Configuration | |||||
| Structure | Integrated frame structure | ||||
| Drive motor | Panasonic servo motor | ||||
| Reducer | Shimpo | ||||
| Crossbeam guide rail | PMI linear guide rail | ||||
| Guide rail | 24kg level H guide rail | ||||
| CNC system | SJTU-SK (Hypertherm Micro EDGE, EDGE PRO optional) | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | HYD arc voltage THC | ||||
| Plasma power supply | Thermadyne, Hypertherm and Kjellberg | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Cutting thickness | 0.5 to 50mm | ||||
| Cutting speed | 50 to 10000 mm/min | ||||
| Travel speed | 1 to 12000 mm/min | ||||
| Cutting width | 0.5m less than track width | ||||
| Cutting length | 1m less than track length | ||||
| Torch lifting height | 200mm | ||||
| Cutting material | mild steel, stainless steel, aluminum etc | ||||
| Operation language | Multilanguage | ||||
The plasma power supply of cnc plasma cutting table has Kjellberg, Thermadyne and Hypertherm for your choice
Company profile
With over 20000 square meters area, Zhangzhou Xinsanhu Intelligent Cutting Machine Co.,Ltd has been specializing in various cnc cutting machines for many years.
