Help CenterPortable Mini Cnc Cut Machine Cheap Price for Steel Fabrication
Related Products
-
Table Cnc Cut Machine Flame Plasma for Thin Plates Steel and AluminumUS$ 16,800 - 28,000MOQ: 1 Set -
Cnc Cut Machine for Boiler Ship Building and Steel FabricationUS$ 15,000 - 25,000MOQ: 1 Set
-
Large Area Cnc Plasma Cutter Flame Cutting Machine 4m*12mUS$ 18,000 - 35,000MOQ: 1 Set
-
Heavy Gantry Cnc Cutting Machine Cnc Cutter 3m*12mUS$ 15,000 - 25,000MOQ: 1 Set
-
Gantry Cnc Plasma Flame Cutting Machine, HPR 200 Plasma Power SupplyUS$ 18,000 - 35,000MOQ: 1 Set
With the properties of good quality, high precision and strong operability, portable cnc plasma and flame cut machine can cut mild steel sheets of different thickness. It is widely used in shipbuilding, light industry machinery and other manufacture with the advantages of easy to install, light weight and take less space.

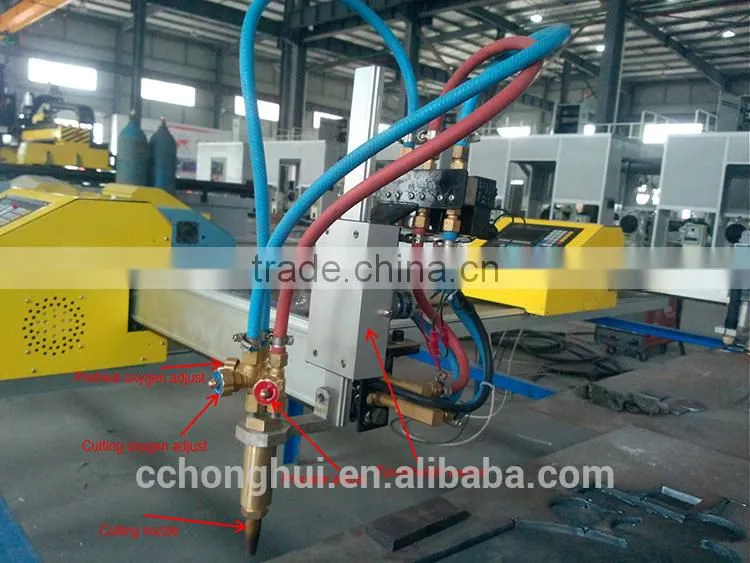

Portable cnc cut machine is equipped with one plasma and one flame cutting torch,you can install the one you want when cut different thickness and material sheets, use a M6 spanner to install the torch.
The main structure and features of portable cnc cut machine
1. Automatic memory function when power off or emergency stop.
2. Auto alarm function when faced with a mistake or arc breaking.
3. Multilanguage(English, Russian, French, Germany, Portuguess, Spanish ect) switch on the interface.
4. 7" LCD touch screen, convenient design, easy to operate.
5. Any CAD files after nesting can be read directly through U-disk.
6. With emergency stop button on one side of the host machine.
7. Dual use, flame and plasma cutting torch both equipped
The configuration and parameters of portable plasma cut machine
| Configuration | |||||
| Drive motor | Stepper motor | ||||
| Reducer | planetary reducer | ||||
| Crossbeam | Aluminum alloy guide rail | ||||
| Guide rail | Aluminum alloy guide rail | ||||
| CNC system | SJTU-SK 2100 | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | Automatic THC | ||||
| Cutting plasma | Untouched arc striking | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Cutting thickness | plasma: 1 to 50mm flame: 5 to 100mm | ||||
| Cutting speed | 50 to 8000 mm/min | ||||
| Travel speed | 1 to 12000 mm/min | ||||
| Cutting width | 0.5m less than track width | ||||
| Cutting length | 0.5m less than track length | ||||
| Cutting material | mild steel, stainless steel, aluminum etc | ||||
| Operation language | Multilanguage | ||||
Cutting samples of portable cnc cut machine
Our services
- 12 months warranty
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Installing and cutting video can be provided
- Engineers are available to service aboard
