Satellite L-Band Dual RF fiber link (Lband-PON)

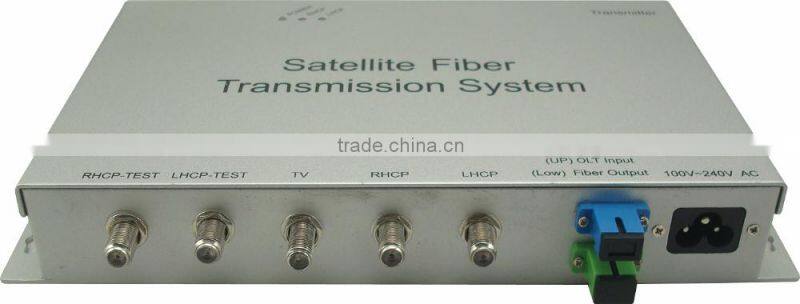

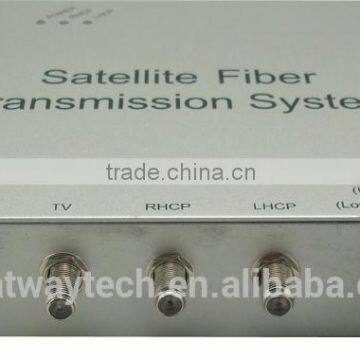

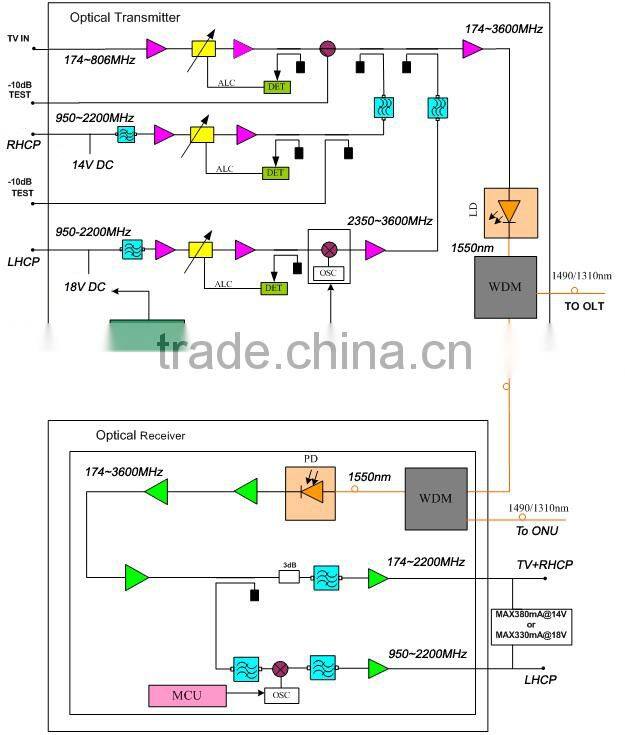

GLB3500-2W satellite RF fiber link includes GLB3500-2W-TX insertion unit and GLB3500-2W-RX customer unit, designed to offer two 950~2200MHz satellite RF signals and one Terrestrial Digital TV RF over Gigabit Passive Optical Network (GPON). The insertion unit is a fiber optic transmitter, converting satellite RF and TV RF signal into one 1550nm optical signal for distribution over fiber optic network. The customer unit is a fiber optic receiver, receiving 1550nm optical signal from fiber optic network and converting it into satellite RF and TV RF.
Features:
l Insertion unit inserting RF at 1550nm wavelength
l Insertion unit with built-in WDM muxing GPON OLT 1490nm/1310nm
l Insertion Unit powering LNB with 14V and 18V @Maxim 450mA
l LNB RF bandwidth: 950MHz~2150MHz
l Terrestrial Digital TV bandwidth: 174 -806 MHz
l Customer unit receiving1550nm RF and demuxing 1490nm/1310nm for GPON ONU
l Customer unit has two RF outputs: one with TDT + RHCP RF and one with LHCP RF
l Customer unit is powered from the two RF ports
Specifications
Optical and Mechanical Specifications
Power Supply , Optical and Mechanical Specifications
Power Supply , Optical and Mechanical Specifications | ||
|
GLB3500-2W-TX |
GLB3500-2W-RX |
Power Supply |
AC100~240V, 50/60 Hz |
|
Dimension (mm) |
210×125×30 (Indoor Version) 230×145×50 (Outdoor Version) |
175×100×30 (Indoor Version) |
Weight |
4Kg (Indoor Version) 6Kg (Outdoor Version) |
1.5Kg |
Power Consumption |
≤12 W |
≤5 W |
Temperature |
-25 to +55 °C |
-5 to +50°C |
Storage Temperature |
-40 to +65 °C |
-40 to +65 °C |
Humidity |
≤95% |
≤85% |
Environmental |
IP30 (indoor version) IP55 (outdoor version) |
IP30 |
RF INPUT Port No. |
3 (TV, RHCP, LHCP) |
// |
RF OUTPUT Port No. |
|
2 (TV+RHCP, LHCP) |
-10dB TEST PORT No. |
2 (LHCP TEST, RHCP TEST) |
// |
RF Connector |
F-Female, 75 ohm |
F-Female, 75 ohm |
Fiber Port No. |
2(OLT Input, Optical Output) |
2 (Optical Input, Output to ONU) |
Optical Output Power |
≥6dBm (1550nm) |
// |
Optical Rx Sensitivity |
// |
-16~-8dBm (1550nm) |
Optical length |
RF:1550nm GPON: 1490/1310nm |
RF: 1550nm GPON: 1490/1310nm |
Optical Connector |
SC/APC |
SC/APC |
LED information |
Power on green LED RF input power in the normal range on green LED RF input power over maximum value on red LED |
Power on green LED optical receiver ≥-16dBm green LED |
Order Information:
GLB3500-2W-TX-R (Insertion Unit Indoor Version, 100~240V AC Power Supply)
GLB3500-2W-TX-U (Insertion Unit Outdoor Version, 100~240V AC Power Supply)
GLB3500-2W-RX (Customer Unit)
