Product Description

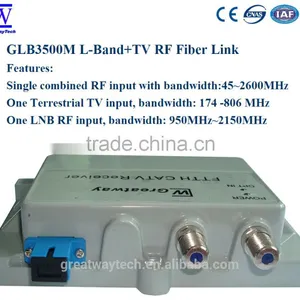

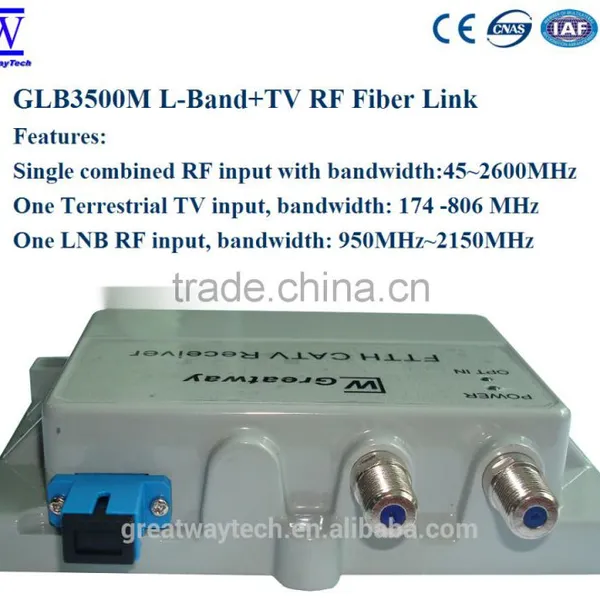

GLB3500M L-Band+TV RF Fiber Link
GLB3500M is a modular 50~2600MHz RF over fiber link, transmitting Terrestrial TV channels and single L-Band RF over one fiber. GLB3500M consists of GLB3500MT transmitter module and GLB3500MR receiver module. GLB3500MT transmitter module has one or two RF input ports while GLB3500MR has one RF output port. With high linearity 1550nm uncooled DFB laser, photodiode and low noise RF gain control circuit, GLB3500M can deliver high quality Terrestrial TV channels and satellite RF over fiber to a few subscribers directly or thousands of FTTH subscribers via EDFA. With 1310nm/1490nm/1550nm WDM option, GLB3500M can insert L-Band+TV RF over GPON/GEPON. Beside the modular version, GLB3500M can have 19”1RU version upon request.

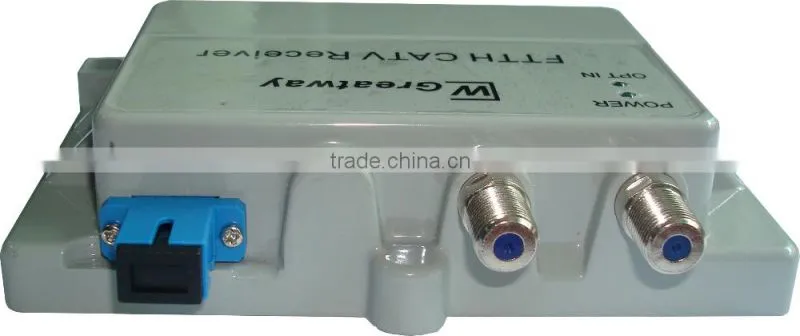

GLB3500M L-Band+TV 50~2600MHz RF Over Fiber Link/L-Band RF over Fiber Transmitter

Features:

l Compact aluminum die cast housing

l Single combined RF input with bandwidth:45~2600MHz or

l Two separated RF inputs, including: One Terrestrial TV input, bandwidth: 174 -806 MHz One LNB RF input, bandwidth: 950MHz~2150MHz (13V or 18V DC option for LNB on request)

l One RF output port

l High Linearity 1550nm uncooled DFB Laser and Photodiode

l Low noise RF Gain Control circuit

l 19” 1RU housing optional

l 1310nm/1490nm WDM interface for OLT/ONU optional



Specifications: RF and Optical Characteristics

Parameter

Min

Typ

Max

Unit

Laser Wavelength



1550



nm

Laser Output Power

+1

+3

+4

dBm

Tx Input RF Return Loss

10

12



dB

Tx RF Input Range

20 TV channels equalized at

-55

-40

-30

dBm

Tx RF Input Range

L-Band RF per transponder

-55

-40

-30

dBm

RF AGC Variation

± 2dB

Frequency Range (L-Band)

950 - 2150MHz

Frequency Range (Terrestrial TV)

174 -806 MHz

Flatness

≤6.0dB in band

Output Power (Max.)

-30±5dBm @Receiver optical Input -10dBm

IMD 2nd order

L-Band: ≥32dB (two input tones at -20 dBm)

Terrestrial TV: ≥50dB (two input tones at -20 dBm)

IMD 3RD order

≥53dB (two input tones at -20 dBm)

RF/Optical Interface

RF Connector

F-Type

RF Impedance

75 Ohm

Fiber

9μm / 125μm Single Mode Fiber

Fiber Connector

SC/APC, SC/UPC, FC/APC, FC/UPC

Physical and Environmental Characteristics

Power Supply

12V 1A DC adaptor (no LNB power request)

19V 1A DC adaptor (on LNB power request)

Power Consumption

< 3W

Dimension

127mm×90mm×30mm

Weight

0.5Kg (without power adaptor)

Operating Temperature

-10~+55 °C

Storage Temperature

-40~+85 °C

Relative Humidity

5~95 % (non-condensing)
Ordering InformationOrdering Information
GLB3500M-X-Y-Z Terrestrial TV and L-Band RF Fiber Optic Transmitter
X (RF input): A_Air TV input only; B_LNB input only; C_Combined Air TV and LNB RF at one RF port, D_Dual RF inputs, one for Air TV and one for LNB RF
Y (Fiber Connector): SA_SC/APC, SU_SC/UPC, FA_FC/APC, FU_FC/UPC
Z (LNB power voltage at LNB RF input port): None_No LNB power, 13_13V DC, 18_18V DC
Packaging & Shipping
Which transportation method could I select?
Usually the buyer appoints a forwarder and we follow the shipping instructions.
We recommend the freight company such as FedEx, UPS, DHL, TNT etc

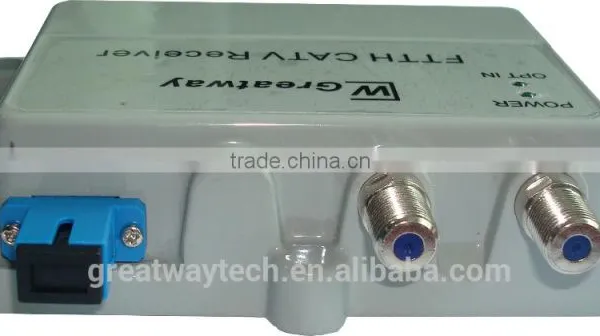

GLB3500M L-Band+TV 50~2600MHz RF Over Fiber Link/L-Band RF over Fiber Transmitter
