Main Product: diesel engine, diesel generator, alternator and spare parts;
Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand pump,
fire pump, construction machine, etc;
Diesel Engine Power Range: from 20kw up to 700kw;
Diesel Generator Power Range: from 30kw up to 700kw.

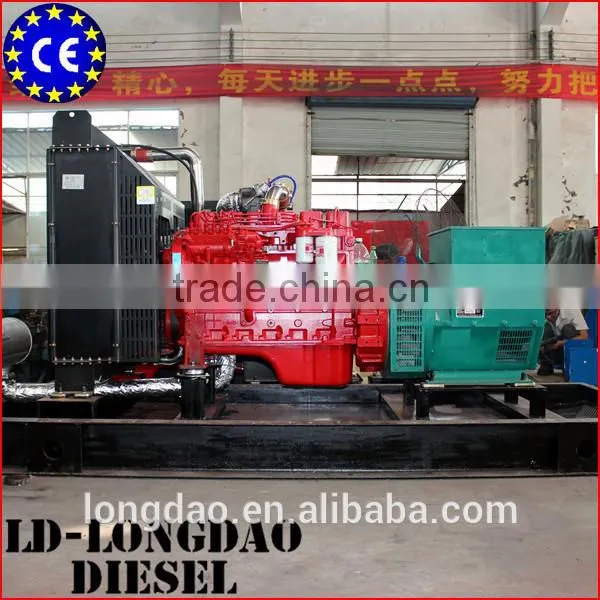

CE Approved Diesel Generator Set 80kw Technical Parameters
| Genset Model (LD Brand) | LD80GF | |
| Rated Power/Speed (kw/r/min) | 80/1500 | |
| LD Diesel Engine |
Engine Model | LD6BT5.9-G1 |
| Rated Power/Speed kw/r/min | 92/1500 | |
| Type | Vertical,inline,water-cooled,four stroke | |
| Intake Way | Turbocharged | |
| Number of cylinders×bore×stroke(mm) | 6-102×120 | |
| Total dispalcement(L) | 5.9 | |
| Min fuel consumption (g/kw.h) | ≤200 | |
| Starting type | Electric | |
| Speed governor model | Mechanical | |
| Oil capacity(L) | 14~16 | |
| Low noise limit dB(A) | 98 | |
| Wattek Alternator (Stamford Technology) |
Alternator nodel | 274C |
| Rated voltage(V) | 400/230 or 380/220 | |
| Current(A) | 144 | |
| Freq(Hz) | 50 or 60 | |
| Regulator approach | AVR | |
| Power factor(CosØ) | 0.8 Lagging | |
| Phase | 3Phase 4Wire | |
| Insulation Class | F/H | |
| Protection Class | IP22/IP23 | |
| Genset Packing |
Net weight(kg) | 800 |
| Genset dimension L*W*H(mm) | 3000×1150×1450 |
|
More LD Diesel Generator Models for Option:
|
Gen-set Model |
3-PHASE, 4-WIRE | Model | |||
| Prime Power | Engine | Alternator | Controller | ||
| kw | kva | LD Brand | WATTEK | SMARTGEN | |
| LD30GF | 30 | 37.5 | LD4F50 | 184H | 6120 |
| LD40GF | 40 | 50 | LD4F65Z | 224D | 6120 |
| LD50GF | 50 | 62.5 | LD4D85Z | 224E | 6120 |
| LD60GF | 60 | 75 | LD4D110L | 224F | 6120 |
| LD80GF | 80 | 100 | LD6B135Z | 274C | 6120 |
| LD100GF | 100 | 125 | LD6B170L | 274D | 6120 |
| LD120GF | 120 | 150 | LD6B210L | 274E | 6120 |
| LD150GF | 150 | 188 | LD6LA245L | 274G | 6120 |
| LD160GF | 160 | 200 | LD6LA265L | 274H | 6120 |
| LD180GF | 180 | 225 | LD6LA285L | 274J | 6120 |
| LD200GF | 200 | 250 | LD6LM350L | 274K | 6120 |
| LD250GF | 250 | 312.5 | LD6M420L | 444D | 6120 |
| LD300GF | 300 | 375 | LD6MK510L | 444FS | 6120 |
| LD360GF | 360 | 450 | LD6MJ570L | 544 | 6120 |
| LD400GF | 400 | 500 | LD12M690L | 544C | 6120 |
| LD468GF | 468 | 585 | LD12M750L | 544E | 6120 |
| LD500GF | 500 | 625 | LD12MJ840L | 544FS | 6120 |
| LD600GF | 600 | 750 | LD12MJ1020L | 634B | 6120 |
CE Approved Diesel Generator Set 80kw Maintenance Service
1.Warranty interms will be issued by our factory,which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent(include sea freight and insurance)to buyers witthout charges;
4.Easy torn parts are excluded in the warrenty,like plugs,condenser,fuse,battery,seal;
5.Problems cased by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhaul and ordinary maintance will be offered by us in factory price;
7.Skillful engineers of us are available dispatched top cuatomers palce for training and service.
|
Ms.Miranda Wang (export/sales manager) Tel: +86 18276782715 Fax: +86 (0)772 2875155 Email: longdao04(at) Skype: LDmirandawang QQ:961156293 |
