Main Product: diesel engine, diesel generator, alternator and spare parts;
Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand pump,
fire pump, construction machine, etc;
Diesel Engine Power Range: from 20kw up to 700kw;
Diesel Generator Power Range: from 30kw up to 700kw.

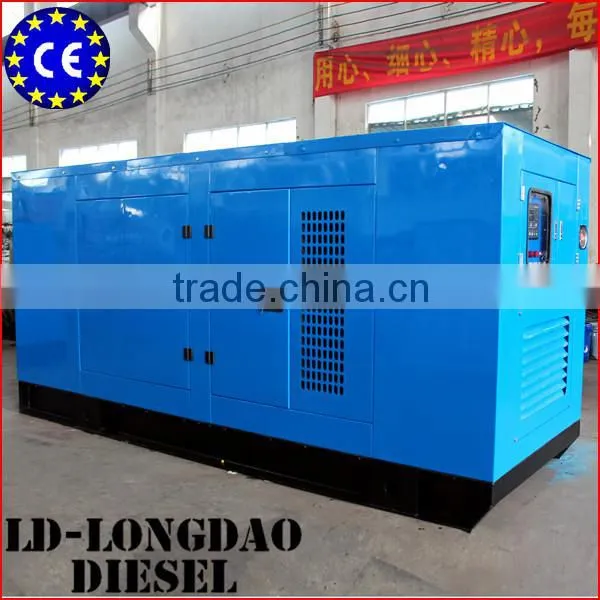

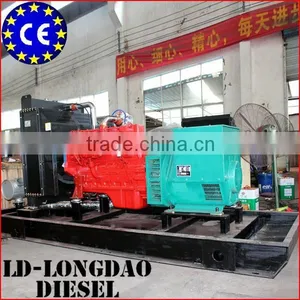

Super Silent Canopy 80kw Diesel Generator Technical Parameters
| Genset Model (LD Brand) | LD80GF | |
| Rated Power/Speed (kw/r/min) | 80/1500 | |
| LD Diesel Engine |
Engine Model | LD6BT5.9-G1 |
| Rated Power/Speed kw/r/min | 92/1500 | |
| Type | Vertical,inline,water-cooled,four stroke | |
| Intake Way | Turbocharged | |
| Number of cylinders×bore×stroke(mm) | 6-102×120 | |
| Total dispalcement(L) | 5.9 | |
| Min fuel consumption (g/kw.h) | ≤200 | |
| Starting type | Mechnical | |
| Speed governor model | Electric | |
| Oil capacity(L) | 14~16 | |
| Low noise limit dB(A) | 98 | |
| Wattek Alternator (Stanford technology) |
Alternator nodel | 274C |
| Rated voltage(V) | 400/230 or 380/220 | |
| Current(A) | 144 | |
| Freq(Hz) | 50 or 60 | |
| Regulator approach | AVR | |
| Power factor(CosØ) | 0.8 Lagging | |
| Phase | 3Phase 4Wire | |
| Insulation Class | F/H | |
| Protection Class | IP22/IP23 | |
| Genset Packing |
Net weight(kg) | 800 |
| Genset dimension L*W*H(mm) | 3000×1150×1450 |
|
More Diesel Generator Models for Option:
|
Gen-set Model |
3-PHASE, 4-WIRE | Model | |||
| Prime Power | Engine | Alternator | Controller | ||
| kw | kva | LD Brand | WATTEK | SMARTGEN | |
| LD22GF | 22 | 27.5 | LD4BT3.9-G1 | 184H | 6120 |
| LD40GF | 40 | 50 | LD4BTA3.9-G1 | 224D | 6120 |
| LD50GF | 50 | 62.5 | LD4BTAA3.9-G2 | 224E | 6120 |
| LD60GF | 60 | 75 | LD6BT5.9-G1 | 224F | 6120 |
| LD80GF | 80 | 100 | LD6BT5.9-G1 | 274C | 6120 |
| LD100GF | 100 | 125 | LD6BT5.9-G1 | 274D | 6120 |
| LD112GF | 112 | 140 | LD6BTAA5.9-G1 | 274E | 6120 |
| LD128GF | 128 | 160 | LD6CT8.3-G1 | 274F | 6120 |
| LD150GF | 150 | 188 | LD6CTA8.3-G2 | 274G | 6120 |
| LD160GF | 160 | 200 | LD6CTAA8.3-G2 | 274H | 6120 |
| LD200GF | 200 | 250 | LD6LTAA8.9-G2 | 274K | 6120 |
l Engines Applications Equipped our own LD6BTengines, lower fuel consumption, lower noise,
convenient maintanecne and share spare parts with Yuchai engines supply system;
l Alternator & Controller Wattek brand alternator 274, made by Stamford technoloty;
Smartgen controller 6120;
l Genset Characteristics 24V Electric start; radiator can meet environment temperature 50 degree.
Super Silent Canopy 80kw Diesel Generator Maintenance Service
1.Warranty interms will be issued by our factory,which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent(include sea freight and insurance)to buyers witthout charges;
4.Easy torn parts are excluded in the warrenty,like plugs,condenser,fuse,battery,seal;
5.Problems cased by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhaul and ordinary maintance will be offered by us in factory price;
7.Skillful engineers of us are available dispatched top cuatomers palce for training and service.
|
