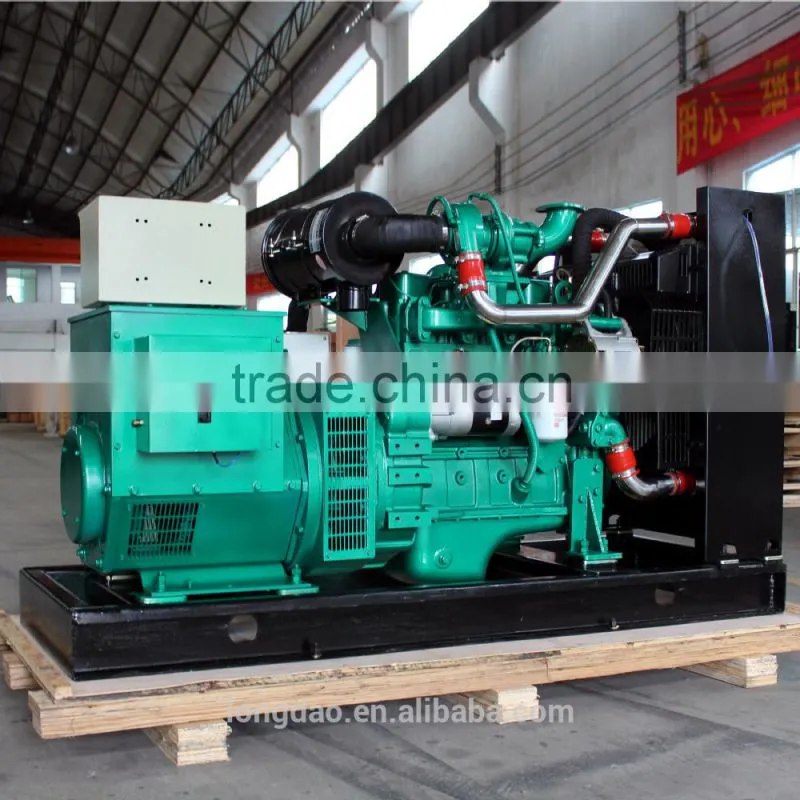

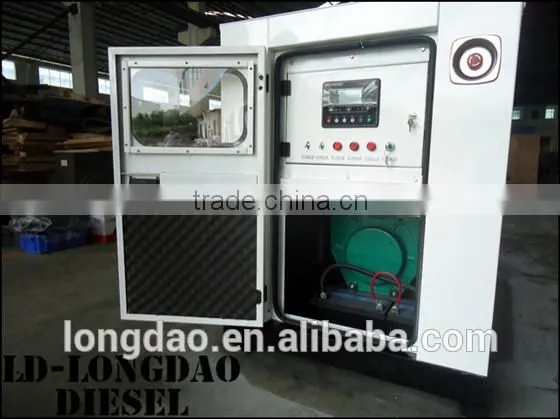

Help Center50kw Reasonable Price Low Noise Soundproof Generator
Related Products
-
Biggest Discount 50kw/62.5kva Soundproof Generator SetUS$ 6,000 - 6,100MOQ: 1 Set -
LD60GF 75kva 50hz Generator With Super Silent CanopyUS$ 6,800 - 6,900MOQ: 1 Set
-
Low Fuel Consumption 60kw 50hz Soundproof Diesel GeneratorUS$ 6,800 - 6,900MOQ: 1 Set
-
Stanmford Alrternator Open Style Diesel Genset PriceUS$ 6,800 - 6,900MOQ: 1 Set
-
China Power 3phase 4wire 75kva Generator Cheap PriceUS$ 5,800 - 5,900MOQ: 1 Set
Specifications
1.Competitive Price;2.Stamford Technology Alternator;
3.12 months warranty;
Main Product: diesel engine, diesel generator, alternator and spare parts;
Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand pump,
fire pump, construction machine, etc;
Diesel Engine Power Range: from 20kw up to 700kw;
Diesel Generator Power Range: from 30kw up to 700kw.
Reasonable price Low Noise soundproof Generator Technical Parameters
| Genset Model (LD Brand) | LD50GF | |
| Rated Power/Speed (kw/r/min) | 50/1500 | |
| LD Diesel Engine |
Engine Model | LD4BTAA3.9-G1 |
| Rated Power/Speed kw/r/min | 55/1500 | |
| Type | Vertical,inline,water-cooled,four stroke | |
| Intake Way | Turbocharged&inter-cooled | |
| Number of cylinders×bore×stroke(mm) | 4-102×120 | |
| Total dispalcement(L) | 3.9 | |
| Min fuel consumption (g/kw.h) | ≤195 | |
| Starting type | Electric | |
| Speed governor model | Electric | |
| Oil capacity(L) | 10~12 | |
| Low noise limit dB(A) | 98 | |
| Wattek Alternator (Stanford technology) |
Alternator nodel | 224E |
| Rated voltage(V) | 400/230 or 380/220 | |
| Current(A) | 72 | |
| Freq(Hz) | 50 or 60 | |
| Regulator approach | AVR | |
| Power factor(CosØ) | 0.8 Lagging | |
| Phase | 3Phase 4Wire | |
| Insulation Class | F/H | |
| Protection Class | IP22/IP23 | |
| Genset Packing |
Net weight(kg) | 680 |
| Genset dimension L*W*H(mm) | 1800×800×1400 | |
--Originated from the Unite States advanced design and sophisticated manufacturing,small volume,
low failure rate,good dynamic performance,high strength,the heavy load work capacity
--Forged steel camshaft and crankshaft,highstrength cylinder design,stiffness,high pressure capacity,
good reliability,long service life
--The cylinder liner platform textured honing design,and new piston ring components and advanced
techniques such as curling molded gasket,effectively prevent oil loss
--Low fuel consumption,fuel-efficient than the equivalent power of the engine by about 3%~5%
Reasonable price Low Noise soundproof Generator Maintenance Service
1.Warranty interms will be issued by our factory,which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent(include sea freight and insurance)to buyers witthout charges;
4.Easy torn parts are excluded in the warrenty,like plugs,condenser,fuse,battery,seal;
5.Problems cased by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhaul and ordinary maintance will be offered by us in factory price;
7.Skillful engineers of us are available dispatched top cuatomers palce for training and service.
|
Ms.Miranda Wang (export/sales manager) Tel: +86 18276782715 Fax: +86 (0)772 2875155 Email: longdao04(at) Skype: LDmirandawang QQ:961156293 |
