Help CenterWater Cooled Radiator Diesel Engine for Fire System
Related Products
-
Fire-Fighting Emergency Fire Pump Diesel EngineUS$ 2,000 - 4,000MOQ: 1 Set -
Fire Fighting Equipment Diesel Engine for Fire FightingUS$ 4,000 - 5,000MOQ: 1 Set
-
300kw Fire Fighting Diesel EngineUS$ 4,000 - 5,000MOQ: 1 Set
-
Fire Fighting Equipment 6CT Fire Pump Diesel EngineUS$ 4,000 - 5,000MOQ: 1 Set
-
2900rpm 3000rpm Fire Fighting Diesel EngineUS$ 4,000 - 5,000MOQ: 1 Set
Fire Fighting Power Range From 22kw up to 507kw, speed: 2900rpm, 3000rpm
Diesel engine is equipped with aluminum radiator, output shaft, 24V starter motor, filter(air filter, fuel
filter & oil filter), standard muffler, control panel, selector switch, stop button, tachometer with hourmeter,
oil pressure gauge, water temperature gauge, battery charging light, stop solenoid valve.
Water Cooled Radiator Diesel Engine for Fire System Specifications
|
Engine Model |
LD4B 3.9-30G |
LD4B 3.9-45G |
LD4B 3.9-60G |
LD4B 3.9-75G |
LD4BT 3.9-85G |
LD4BT 3.9-105G |
LD4BTAA 3.9-130G |
|
Rated Power/Speed kw/r/min |
22/3000 |
33 /3000 |
44 /3000 |
55 /3000 |
63 /3000 |
78 /3000 |
96/3000 |
|
Max Torque (N.m/rpm) |
200/1700 |
230/1700 |
230 /1700 |
250/1700 |
250/1700 |
320/1700 |
400/1700 |
|
Type |
Direct Injection, Vertical, In line, 4 stroke |
|||||||
Cooling System |
Water Cooled |
|||||||
Intake Way |
Natural |
Turbocharged |
Turb&Intercool |
|||||
Cylinder×bore×stroke (mm) |
4-102x120 |
|||||||
Total displacement(L) |
3.9 |
|||||||
Fuel consumption (g/kw.h) |
≤200 |
|||||||
Starting type |
Electric |
|||||||
Start Voltage |
24V, (2 Piece 12V Bateries) |
|||||||
Operation Hours |
Normal 12 hours (Max 24hours) |
|||||||
Oil capacity(L) |
10-12 |
|||||||
Low noise limit dB (A) |
≤98 |
|||||||
Flywheel Size |
3#11.5’’ |
|||||||
Net Weight (kg) |
340-380 |
|||||||
Dimension (mm) |
950x600x988 |
|||||||
Certifiates |
ISO9001:2008, CE |
|||||||

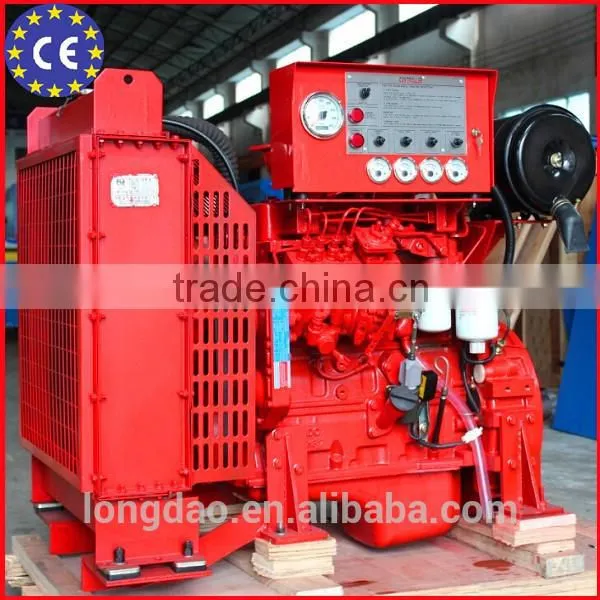

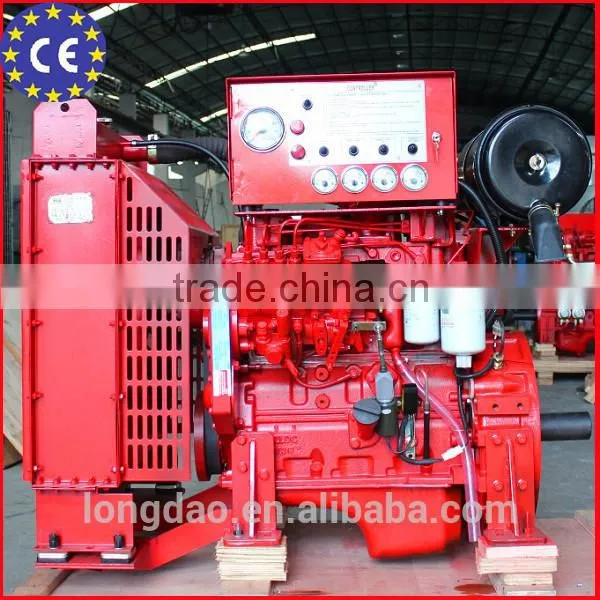

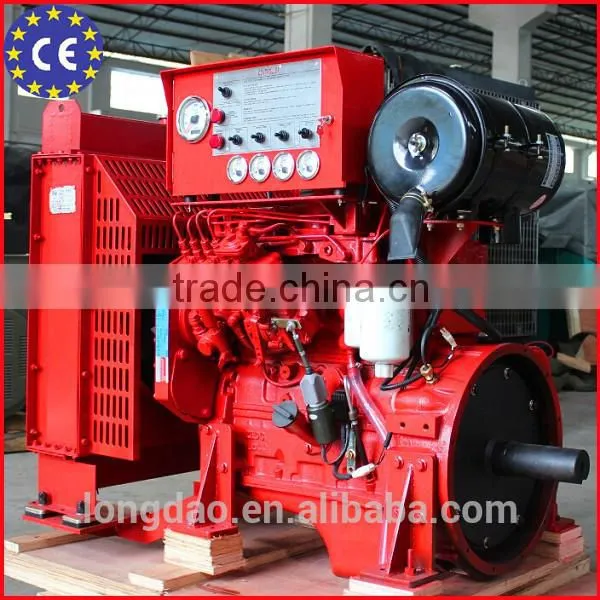

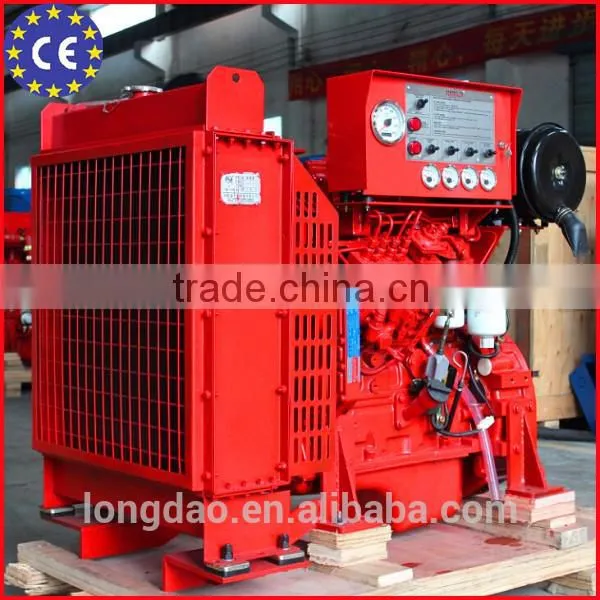

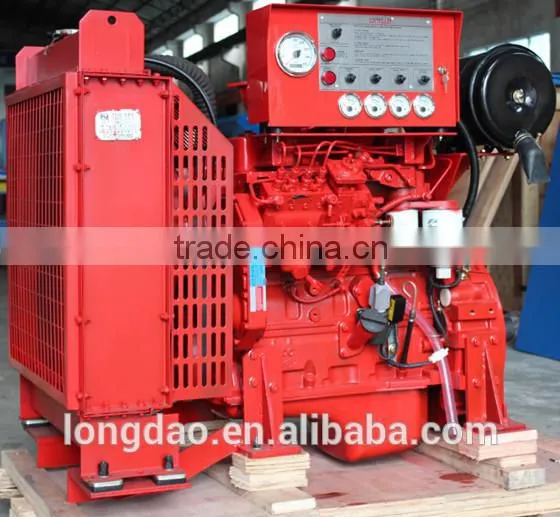

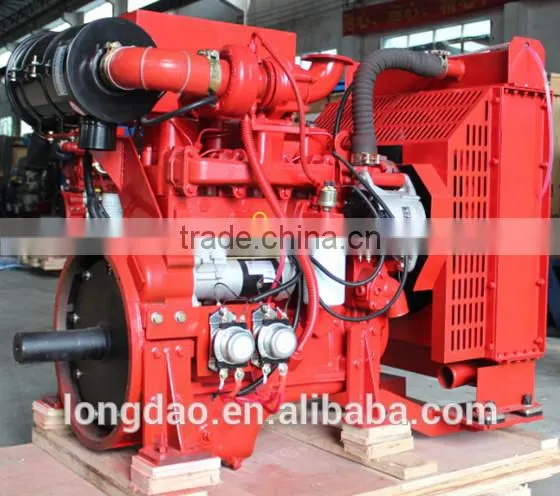

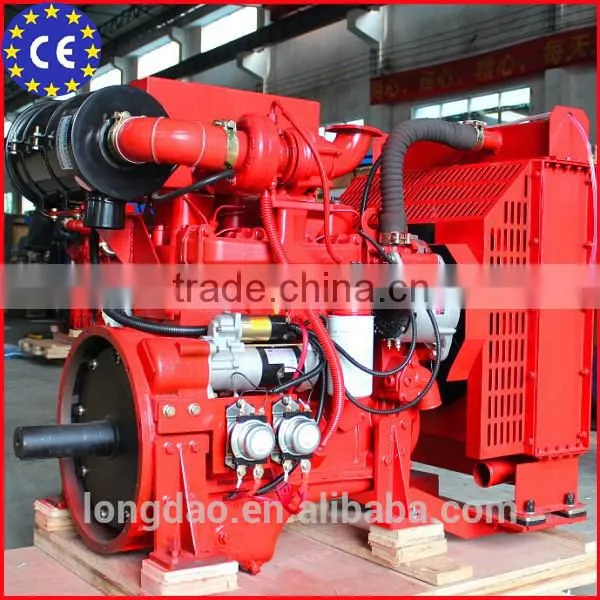

Water Cooled Radiator Diesel Engine for Fire System Photos
Water Cooled Radiator Diesel Engine for Fire System Service
1.Warranty iterms will be issued by our own factory, which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent (include sea freight and insurance) to buyers freely;
4.Easy torn prts are excluded in the warranty, like plugs, condenser, fuse, battery, seal;
5.Problems caused by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhual and ordinary maintanence will be offered by us in factory price;
7.Skillful engineers of us are available dispatched to customers place for training and service.
|
