Fire-Fighting Emergency Fire Pump Diesel Engine
- 2000 Set / Sets per Month
- Shenzhen or Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- Chinese multi-cylinder industrial diesel engines price
- Liugong wheel loader ZL50GN, 5 tons capacity, rock wheel loader
- Genuine electric start 74kw 4 stroke cumins 4BTA3.9-C100 complete diesel engine for excavator
- Factory Price 4 stroke 2200rpm cumins 4BTA3.9-C100 machinery engines for excavator parts
- Hot sale construction machinery Cummins 74kw machinery engine 4BTA3.9-C100 Engine Motor for sale
- High quality vovo d6d EFE2 complete diesel engine for construction machinery
Product Details
Condition: | New | Usage: | Other, fire fighting, fire fighting, fire pump | Fuel: | Diesel |
Stroke: | 4 Stroke | Cylinder: | Other, 4 cylinder | Cold Style: | Other, Water-cooled |
Start: | Electric Start | Place of Origin: | Guangxi, China | Brand Name: | LD |
Model Number: | 4BT3.9-105G | Dimension(L*W*H): | 1700*950*1400mm | Weight: | 340 kg |
Certification: | CE & ISO9001:2008 | Warranty: | 12 Month | After-sales Service Provided: | Overseas third-party support available |
Product Description
Fire Fighting Engine Power Range From 22kw up to 507kw, speed: 2900rpm & 3000rpm
Diesel engine is equipped with aluminum radiator, output shaft, 24V starter motor, filter(air filter, fuel
filter & oil filter), standard muffler, control panel, selector switch, stop button, tachometer with hourmeter,
oil pressure gauge, water temperature gauge, battery charging light, stop solenoid valve.
Fire-Fighting Emergency Fire Pump Diesel Engine Specification
Engine Model | LD4B 3.9-30G | LD4B 3.9-45G | LD4B 3.9-60G | LD4B 3.9-75G | LD4BT 3.9-85G | LD4BT 3.9-105G | LD4BTAA 3.9-130G | |
Rated Power/Speed kw/r/min | 22/3000 | 33 /3000 | 44 /3000 | 55 /3000 | 63 /3000 | 78 /3000 | 96/3000 | |
Max Torque (N.m/rpm) | 200/1700 | 230/1700 | 230 /1700 | 250/1700 | 250/1700 | 320/1700 | 400/1700 | |
Type | Direct Injection, Vertical, In line, 4 stroke | |||||||
Cooling System | Water Cooled | |||||||
Intake Way | Natural | Turbocharged | Turb&Intercool | |||||
Cylinder×bore×stroke (mm) | 4-102x120 | |||||||
Total displacement(L) | 3.9 | |||||||
Fuel consumption (g/kw.h) | ≤200 | |||||||
Starting type | Electric | |||||||
Start Voltage | 24V, (2 Piece 12V Bateries) | |||||||
Operation Hours | Normal 12 hours (Max 24hours) | |||||||
Oil capacity(L) | 10-12 | |||||||
Low noise limit dB (A) | ≤98 | |||||||
Flywheel Size | 3#11.5’’ | |||||||
Net Weight (kg) | 340-380 | |||||||
Dimension (mm) | 950x600x988 | |||||||
Certifiates | ISO9001:2008, CE |

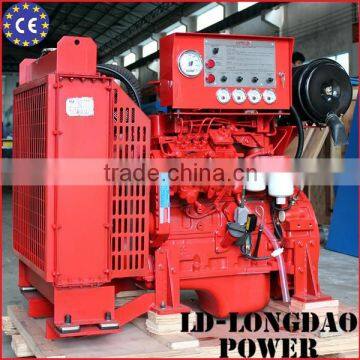

Fire-fighting Emergency Fire Pump Diesel Engine Photos
Click The Below Diesel Engine for More Power Option
6BT Series 119kw~175kw | 6CT Series 250kw~295kw | 6LTAA Series 275kw~300kw |
Fire-Fighting Emergency Fire Pump Diesel Engine Service
1.Warranty iterms will be issued by our own factory, which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent (include sea freight and insurance) to freely;
4.Easy torn prts are excluded in the warranty, like plugs, condenser, fuse, battery, seal;
5.Problems caused by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhual and ordinary maintanence will be offered by us in factory price;
7.Skillful engineers of us are available dispatched to customers place for training and service.
