M30 Flush Connector Type Short Body Housing Proximity Sensor Switch, PNP NPN Inductive Sensor Switch With Connector (IBEST)

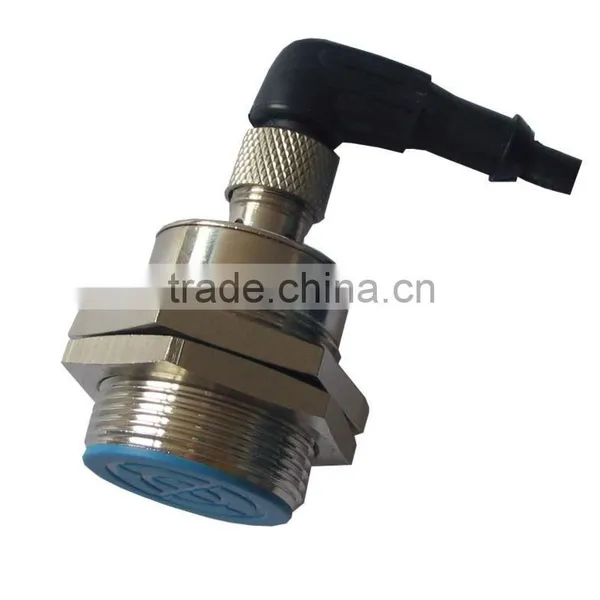

M30 Flush Connector Type Short Body Housing Proximity Sensor Switch, PNP NPN Inductive Sensor Switch With Connector (IBEST) photo-1

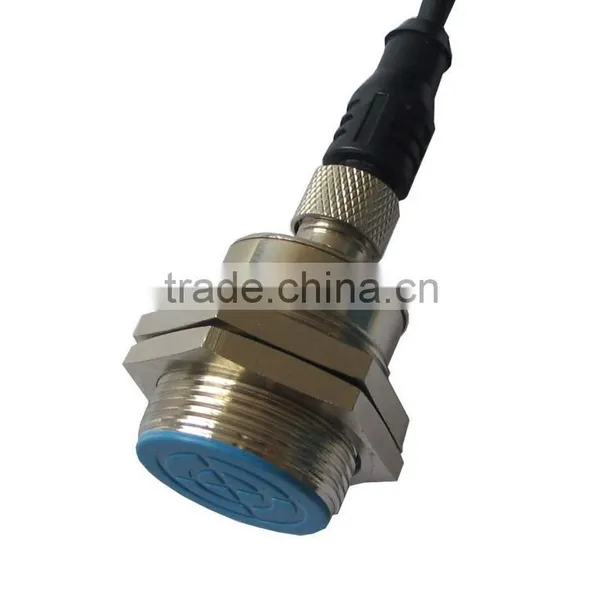

M30 Flush Connector Type Short Body Housing Proximity Sensor Switch, PNP NPN Inductive Sensor Switch With Connector (IBEST) photo-2

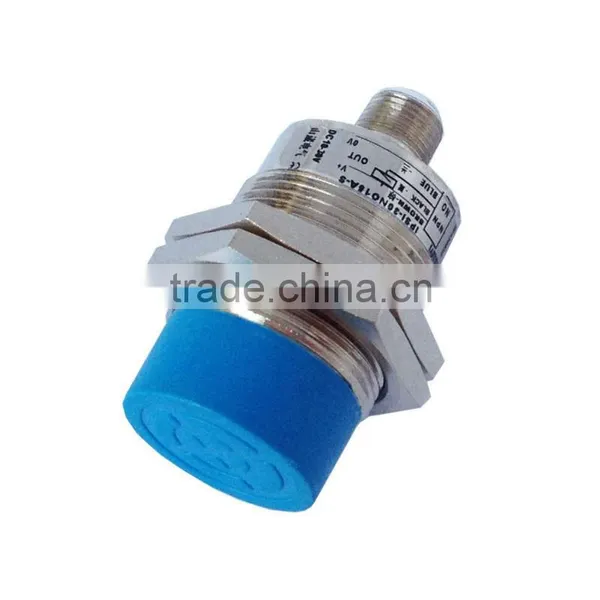

M30 Flush Connector Type Short Body Housing Proximity Sensor Switch, PNP NPN Inductive Sensor Switch With Connector (IBEST) photo-3
US$ 7 - 10 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST
Model Number:
IPIS-30PO10B-S, IPSI-30POC10B-S; IPIS-30PO15B-S, IPSI-30POC15B-S
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name IBEST
Model Number IPIS-30PO10B-S, IPSI-30POC10B-S; IPIS-30PO15B-S, IPSI-30POC15B-S
Usage Position Sensor
Theory Inductance Sensor
Output Other, NPN, PNP

Specifications

*Diameter: 30mm; short body 43mm
*DC 3-wire(10-30V DC); DC 4-wire(10-30V DC)
*Connection mode: 3 wire or 4 wire


Click to enlarge
Code: M30 Short Housing Inductive Sensor
Features:
*Diameter: 30mm; short body.
*DC 3-wire(10-30V DC); DC 4-wire(10-30V DC)
*Connection mode: 3 wire or 3 pin connector ;  4 wire or 4 pin connector
*Mounting distance: shielded (10mm), unshielded(15mm)
*With LED operation indicate lamp, easily identifiable
*Brass chrome plated, proof of oil, water acid, alkaline
*Standard sensing object: iferrous metals;
*Protection rate: IP67, water resistant
*Over-current protection
*Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc

1. Product model is named:

2. Ordering Code:
Model and TypeOutput typeMounting distanceCureent outputPower supplyConnector modelBuy
IPS-30PO10B-S PNP NO 10mm,shielded ≤200mA DC 10~30V DC 3 Wire
IPS-30PC10B-S PNP NC 10mm,shielded ≤200mA DC 10~30V DC 3 Wire
IPS-30POC10B-S PNP NO+NC 10mm,shielded ≤200mA DC 10~30V DC 4 Wire
IPS-30NO10B-S NPN NO 10mm,shielded ≤200mA DC 10~30V DC 3 Wire
IPS-30NC10B-S NPN NC 10mm,shielded ≤200mA DC 10~30V DC 3 Wire
IPS-30NOC10B-S NPN NO+NC 10mm,shielded ≤200mA DC 10~30V DC 4 Wire
IPS-30PO15B-S PNP NO 15mm,unshielded ≤200mA DC 10~30V DC 3 Wire
IPS-30PC15B-S PNP NC 15mm,unshielded ≤200mA DC 10~30V DC 3 Wire
IPS-30POC15B-S PNP NO+NC 15mm,unshielded ≤200mA DC 10~30V DC 4 Wire
IPS-30NO15B-S NPN NO 15mm,unshielded ≤200mA DC 10~30V DC 3 Wire
IPS-30NC15B-S NPN NC 15mm,unshielded ≤200mA DC 10~30V DC 3 Wire
IPS-30NOC15B-S NPN NO+NC 15mm,unshielded ≤200mA DC 10~30V DC 4 Wire
IPSI/L-30PO10B-S PNP NO 10mm,shielded ≤200mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-30PC10BS PNP NC 10mm,shielded ≤200mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-30POC10B-S PNP NO+NC 10mm,shielded ≤200mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-30NO10B-S NPN NO 10mm,shielded ≤200mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-30NC10B-S NPN NC 10mm,shielded ≤200mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-30NOC10B-S NPN NO+NC 10mm,shielded ≤200mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-30PO15B-S PNP NO 15mm,unshielded ≤200mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-30PC15B-S PNP NC 15mm,unshielded ≤200mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-30POC15B-S PNP NO+NC 15mm,unshielded ≤200mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-30NO15B-S NPN NO 15mm,unshielded ≤200mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-30NC15B-S NPN NC 15mm,unshielded ≤200mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-30NOC15B-S NPN NO+NC 15mm,unshielded ≤200mA DC 10~30V M12 Connector (I:straight/L:90 degree)
M30 Flush Connector Type Short Body Housing Proximity Sensor Switch, PNP NPN Inductive Sensor Switch with Connector (IBEST)
