Home > Electrical & Electronics > Switch > Other Switches > IBEST M12 Short Body Housing Inductive Proximity Sensor Switch, M8 PNP NPN DC 3 Wire Inductive Proximity Sensor Switch

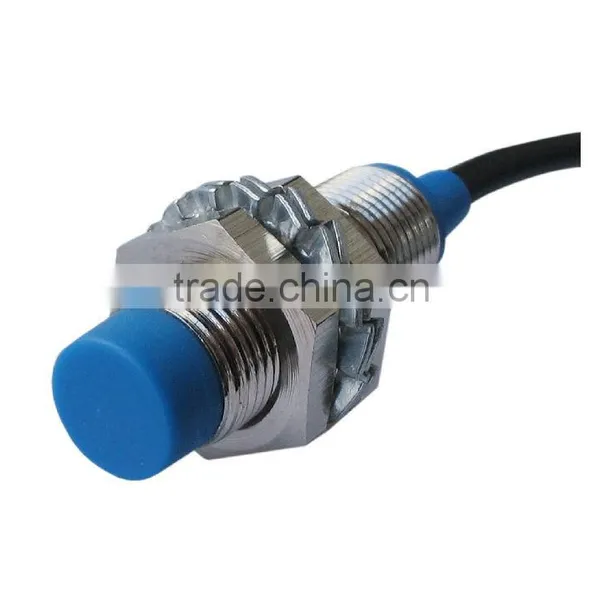

IBEST M12 Short Body Housing Inductive Proximity Sensor Switch, M8 PNP NPN DC 3 Wire Inductive Proximity Sensor Switch

Name: IBEST M12 Short Body Housing Inductive Proximity Sensor Switch, M8 PNP NPN DC 3 Wire Inductive Proximity Sensor Switch
Brand: IBEST
SKU: 109096681
Availability: InStock

IBEST M12 Short Body Housing Inductive Proximity Sensor Switch, M8 PNP NPN DC 3 Wire Inductive Proximity Sensor Switch thumbnail-1

IBEST M12 Short Body Housing Inductive Proximity Sensor Switch, M8 PNP NPN DC 3 Wire Inductive Proximity Sensor Switch photo-1

US$ 4 - 6 MOQ: 5 Units

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

IBEST

Model Number:

IPS-12PO4A-S; IPS-12POC4A-S;IPS-12PO4A-S; IPS-12POC4A-S;

Contact Supplier Request Quote Chat Now

Zhongshan IBEST Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name IBEST

Model Number IPS-12PO4A-S; IPS-12POC4A-S;IPS-12PO4A-S; IPS-12POC4A-S;

Max. Current 100mA

Max. Voltage DC 10-30V

Specifications

*Diameter: 12mm; short body 30mm or 35mm.
*DC 3-wire(10-30V DC)
*Connection mode: 3 wire or 4 wire.

Code:	M12 Short Housing Inductive Sensor
Features:
Diameter: 12mm; short body. DC 3-wire(10-30V DC); DC 4-wire(10-30V DC) Connection mode: 3 wire or 3 pin connector ; 4 wire or 4 pin connector Mounting distance: shielded (2mm), unshielded(4mm) With LED operation indicate lamp, easily identifiable Brass chrome plated, proof of oil, water acid, alkaline Standard sensing object: iferrous metals; Protection rate: IP67, water resistant Over-current protection Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc

1. Product model is named:

2. Ordering Code:

Model and Type	Output type	Mounting distance	Cureent output	Power supply	Connector model	Buy
IPS-12PO4A-S	PNP NO	4mm,unshielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12PC4A-S	PNP NC	4mm,unshielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12POC4A-S	PNP NO+NC	4mm,unshielded	≤100mA	DC 10~30V	DC 4 Wire
IPS-12NO4A-S	NPN NO	4mm,unshielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12NC4A-S	NPN NC	4mm,unshielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12NOC4A-S	NPN NO+NC	4mm,unshielded	≤100mA	DC 10~30V	DC 4 Wire
IPS-12PO2A-S	PNP NO	2mm,shielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12PC2A-S	PNP NC	2mm,shielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12POC2A-S	PNP NO+NC	2mm,shielded	≤100mA	DC 10~30V	DC 4 Wire
IPS-12NO2A-S	NPN NO	2mm,shielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12NC2A-S	NPN NC	2mm,shielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12NOC2A-S	NPN NO+NC	2mm,shielded	≤100mA	DC 10~30V	DC 4 Wire
IPSI/L-12PO2A-S	PNP NO	2mm,shielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12PC2A-S	PNP NC	2mm,shielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12POC2A-S	PNP NO+NC	2mm,shielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12NO2A-S	NPN NO	2mm,shielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12NC2A-S	NPN NC	2mm,shielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12NOC2A-S	NPN NO+NC	2mm,shielded	≤100mA	AC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12PO4A-S	PNP NO	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12PC4A-S	PNP NC	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12POC4A-S	PNP NO+NC	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12NO4A-S	NPN NO	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12NC4A-S	NPN NC	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12NOC4A-S	NPN NO+NC	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
