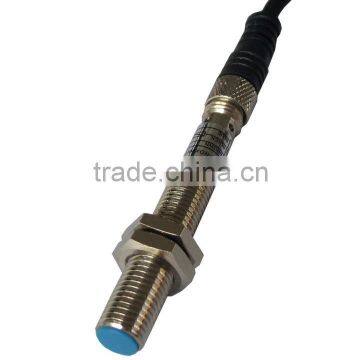

M8 Connector Type Proximity Sensor Switch, M8 Connector Inductive Sensor Swith (IBEST)
US$ 6 - 8
MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST, SANLLEVI
Model Number:
IPS-8PO2B; IPS-8PC2B
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IBEST M12 Connector Proximity Sensor Switch PNP (Connector Type)US$ 4 - 6MOQ: 20 Units -
Proximity Switch PNP Type Inductive Proximity Sensor Switch With M12 Connector Type IBESTUS$ 4 - 6MOQ: 10 Units
-
M12 Connector Proximty Sensor Switch, M12 Connector Inductive Sensor Switch (IBEST)US$ 5 - 7MOQ: 10 Units
-
M18 Proximity Sensor Switch, M18 Inductive Sensor Switch (IBEST)US$ 5 - 7MOQ: 5 Units
-
M30 Connector Type Inductive Proximity Sensor Switch, M30 Proximiy Sensor Switch With M12 Connector, M30 AC DC Proximity SwitchUS$ 6 - 8MOQ: 5 Units
Place of Origin
Guangdong, China
Brand Name
IBEST, SANLLEVI
Model Number
IPS-8PO2B; IPS-8PC2B
Usage
Magnetic Sensor
Theory
Inductance Sensor
Output
Other, PNP, NO or NC
Specifications
M8 cylinder proximity sensor switch1.Non-flush SN 2mm
2.PNP NO/NC, DC 10-30V
3.With cable/connector
4.Short circuit protect
1.Features of M8 cylinder proximity sensor switch :
* Style: cylinder shape, diameter: 8mm
* DC 3-wire(10-30V DC)
* Connection mode: 3 wire or 3 pin connector
* Mounting distance: shielded (1mm), unshielded(2mm)
* With LED operation indicate lamp, easily identifiable
* Brass chrome plated, proof of oil, water acid, alkaline
* Standard sensing object: iferrous metals;
* Protection rate: IP67, water resistant
* Over-current protection
2. Ordering Code
| Model and Type | Output type | Mounting distance | Cureent output | Power supply | Connector model | Buy |
| IPS-8NO1A | NPN NO | 1mm,shielded | ≤100mA | DC 10-30V | 3 Wire | |
| IPS-8NC1A | NPN NC | 1mm,shielded | ≤100mA | DC 10-30V | 3 Wire | |
| IPS-8NO2A | NPN NO | 2mm,unsheilded | ≤100mA | DC 10-30V | 3 Wire | |
| IPS-8NC2A | NPN NC | 2mm,unshielded | ≤100mA | DC 10-30V | 3 Wire | |
| IPSI/L-8NO1A | NPN NO | 1mm,shielded | ≤100mA | DC 10-30V | Plug-in connector | |
| IPSI/L-8NC1A | NPN NC | 1mm,shielded | ≤100mA | DC 10-30V | Plug-in connector | |
| IPSI/L-8NO2A | NPN NO | 2mm,unshielded | ≤100mA | DC 10-30V | Plug-in connector | |
| IPSI/L-8NC2A | NPN NC | 2mm,unshielded | ≤100mA | DC 10-30V | Plug-in connector | |
| IPS-8PO1A | PNP NO | 1mm,shielded | ≤100mA | DC 10-30V | 3 Wire | |
| IPS-8PC1A | PNP NC | 1mm,shielded | ≤100mA | DC 10-30V | 3 Wire | |
| IPS-8PO2A | PNP NO | 2mm,unshielded | ≤100mA | DC 10-30V | 3 Wire | |
| IPS-8PC2A | PNP NC | 2mm,unshielded | ≤100mA | DC 10-30V | 3 Wire | |
| IPSI/L-8PO1A | PNP NO | 1mm,shielded | ≤100mA | DC 10-30V | Plug-in connector | |
| IPSI/L-8PC1A | PNP NC | 1mm,shielded | ≤100mA | DC 10-30V | Plug-in connector | |
| IPSI/L-8PO2A | PNP NO | 2mm,unshielded | ≤100mA | DC 10-30V | Plug-in connector | |
| IPSI/L-8PC2A | PNP NC | 2mm,unshielded | ≤100mA | DC 10-30V | Plug-in connector | |
| IPS-8DO1A | DC 2 Wire NO | 1mm,shielded | ≤100mA | DC 10-30V | 2 Wire | |
| IPS-8DC1A | DC 2 Wire NC | 1mm,shielded | ≤100mA | DC 10-30V | 2 Wire | |
| IPS-8DO2A | DC 2 Wire NO | 2mm,unshielded | ≤100mA | DC 10-30V | 2 Wire | |
| IPS-8DC2A | DC 2 Wire NC | 2mm,unshielded | ≤100mA | DC 10-30V | 2 Wire | |
| IPSI/L-8DO1A | DC 2 Wire NO | 1mm,shielded | ≤100mA | DC 10-30V | Plug-in connector | |
| IPSI/L-8DC1A | DC 2 Wire NC | 1mm,shielded | ≤100mA | DC 10-30V | Plug-in connector | |
| IPSI/L-8DO2A | DC 2 Wire NO | 2mm,unshielded | ≤100mA | DC 10-30V | Plug-in connector | |
| IPSI/L-8DC2A | DC 2 Wire NC | 2mm,unshielded | ≤100mA | DC 10-30V | Plug-in connector |
3.Technical specification
| Property project | Specific parameter |
| Mounting distance | shielded (1mm)/unshielded(2mm) |
| Sensing distance | shielded(0-0.8mm)/unshielded(0-1.8mm) |
| Power supply | DC 10-30V |
| Frequency | ≤600Hz |
| Current output | ≤100mA |
| Ambient temperture | -20°C-70°C |
| Protection | over-current/against polarity |
| IP rating | IP67 |
Our company is a professiona manufacutures of:
1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.
2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3, Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.
Welcome to contact us!
