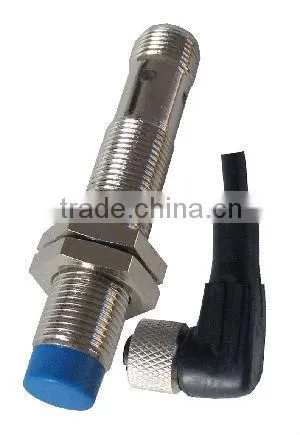

Proximity Switch PNP Type Inductive Proximity Sensor Switch With M12 Connector Type IBEST
US$ 4 - 6
MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST, SANLLEVI
Model Number:
IPSI/L-12PO4B; IPSI/L-12PC4B; IPSI/L-12POC4B
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
M12 Connector Proximty Sensor Switch, M12 Connector Inductive Sensor Switch (IBEST)US$ 5 - 7MOQ: 10 Units -
M18 Proximity Sensor Switch, M18 Inductive Sensor Switch (IBEST)US$ 5 - 7MOQ: 5 Units
-
M30 Connector Type Inductive Proximity Sensor Switch, M30 Proximiy Sensor Switch With M12 Connector, M30 AC DC Proximity SwitchUS$ 6 - 8MOQ: 5 Units
-
IBEST 3 Wire Square Proximity Sensor, Square Proximity SwitchUS$ 4 - 6MOQ: 10 Units
-
Square PNP Inductive Proximity Sensor Switch, Square Proximity Sensor Switch (IBEST)US$ 4 - 6MOQ: 10 Units
Place of Origin
Guangdong, China
Brand Name
IBEST, SANLLEVI
Model Number
IPSI/L-12PO4B; IPSI/L-12PC4B; IPSI/L-12POC4B
Usage
Magnetic Sensor
Theory
Inductance Sensor
Output
Other, NPN, NO or NC or NO+NC
Specifications
M12 Non-Flush Proximity Sensor1. Cylinder ,SN 4mm
2. PNP NO,NC,NOC
3. With connector
4. Short ciucuit protected
1. Features of M12 Non-flush Proximity Sensor :
-- Inductive proximity sensor, style: cylinder, diameter: 12mm
-- Unshielded or shielded type .
-- DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC),AC 2-wire (90-250 AC) type
-- Connection mode: cables=2M directly; or with M12 cable connector.
-- Mounting distance: unshielded 4mm or shielded 2mm
-- With LED operation indicate lamp, easily identifiable
-- Brass chrome plated, proof of oil, water acid, alkaline
-- Standard sensing object: iferrous metals;
-- Over load, short circuit protection , against polarity reversal
-- IP ratings: IP67
-- Various other shapes: M5/M8/M18/M30, square types and pancake types.
-- Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc .
-- Reliable quality to replace famous brands .
2.Ordering code
| IPSI/L-12NO2B | NPN NO | 2mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12NC2B | NPN NC | 2mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12NO4B | NPN NO | 4mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12NC4B | NPN NC | 4mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12NOC2B | NPN NO+NC | 2mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12NOC4B | NPN NO+NC | 4mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12DO2B | DC 2 Wire NO | 2mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12DC2B | DC 2 Wire NC | 2mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12DO4B | DC 2 Wire NO | 4mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12DC4B | DC 2 Wire NC | 4mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12AO2C | AC 2 Wire NO | 2mm,shielded | ≤300mA | AC 90-250V | Plug-in connector | |
| IPSI/L-12AC2C | AC 2 Wire NC | 2mm,shielded | ≤300mA | AC 90-250V | Plug-in connector | |
| IPSI/L-12AO4C | AC 2 Wire NO | 4mm,unshielded | ≤300mA | AC 90-250V | Plug-in connector | |
| IPSI/L-12AC4C | AC 2 Wire NC | 4mm,unshielded | ≤300mA | AC 90-250V | Plug-in connector |
| IPSI/L-12PO2B | PNP NO | 2mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12PC2B | PNP NC | 2mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12PO4B | PNP NO | 4mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12PC4B | PNP NC | 4mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12POC2B | PNP NO+NC | 2mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12POC4B | PNP NO+NC | 4mm,unshielded | ≤200mA | DC 10-30V | Straight connector |
| 3. Technical Specifications: | ||||||||||||||||||
|
Our company is a professiona manufacutures of:
1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.
2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3, Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.
Welcome to contact us!
