IBEST M12 Connector Proximity Sensor Switch PNP (Connector Type)

Zhongshan IBEST Electrical Co., Ltd.
IBEST M12 Connector Proximity Sensor Switch PNP (Connector Type) thumbnail-1
IBEST M12 Connector Proximity Sensor Switch PNP (Connector Type) thumbnail-2
IBEST M12 Connector Proximity Sensor Switch PNP (Connector Type) thumbnail-3
IBEST M12 Connector Proximity Sensor Switch PNP (Connector Type) photo-1

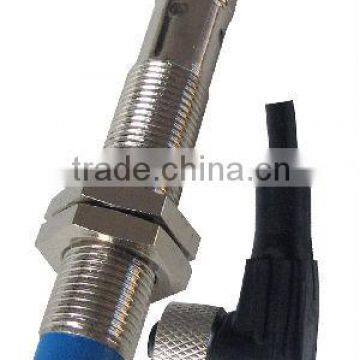

IBEST M12 Connector Proximity Sensor Switch PNP (Connector Type) photo-2

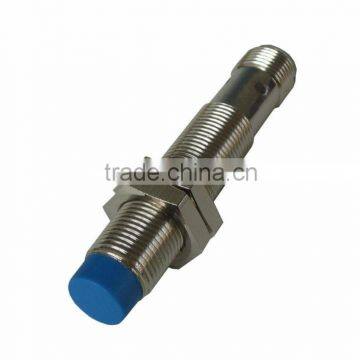

IBEST M12 Connector Proximity Sensor Switch PNP (Connector Type) photo-3
US$ 4 - 6 MOQ: 20 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST, SANLLEVI
Model Number:
IPSI/L-12NO2B; IPSI/L-12NC2B; IPSI/L-12NOC2B
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST, SANLLEVI
Model Number IPSI/L-12NO2B; IPSI/L-12NC2B; IPSI/L-12NOC2B
Usage Magnetic Sensor
Theory Inductance Sensor
Output Other, NPN, NO or NC or NO+NC

Specifications

M12 Proximity Sensor
1.Proximity sensor: cylinder ,shielded 2mm
2.NPN NO,NC,NO+NC
3.Short circuit protected
4.With cable, CE

1. Features of M12 Proximity Sensor  :

--     Inductive proximity sensor, style: cylinder, diameter: 12mm
--     Shielded or unshielded type.
--     DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC),AC 2-wire (90-250 AC) type

--     Connection mode: cables=2M directly;  or with M12 cable connector.
--     Mounting distance: shielded (2mm) / unshielded (4mm)
--     With LED operation indicate lamp, easily identifiable
--     Brass chrome plated, proof of oil, water acid, alkaline
--     Standard sensing object: iferrous metals;
--     Over load, short circuit protection , against polarity reversal

--      IP ratings: IP67

--      Inductive proximity sensor with various other shapes: M5/M8/M18/M30, square types and pancake types.

--      Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc .

--       Reliable quality to replace famous brands .





2.Ordering code

IPSI/L-12NO2B NPN NO 2mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12NC2B NPN NC 2mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12NO4B NPN NO 4mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12NC4B NPN NC 4mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12NOC2B NPN NO+NC 2mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12NOC4B NPN NO+NC 4mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12DO2B DC 2 Wire NO 2mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12DC2B DC 2 Wire NC 2mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12DO4B DC 2 Wire NO 4mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12DC4B DC 2 Wire NC 4mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12AO2C AC 2 Wire NO 2mm,shielded ≤300mA AC 90-250V Plug-in connector
IPSI/L-12AC2C AC 2 Wire NC 2mm,shielded ≤300mA AC 90-250V Plug-in connector
IPSI/L-12AO4C AC 2 Wire NO 4mm,unshielded ≤300mA AC 90-250V Plug-in connector
IPSI/L-12AC4C AC 2 Wire NC 4mm,unshielded ≤300mA AC 90-250V Plug-in connector
IPSI/L-12PO2B PNP NO 2mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12PC2B PNP NC 2mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12PO4B PNP NO 4mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12PC4B PNP NC 4mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12POC2B PNP NO+NC 2mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-12POC4B PNP NO+NC 4mm,unshielded ≤200mA DC 10-30V Straight connector









3. Technical Specifications:
Property projectSpecific parameter
Mounting distanceshielded: 2mm / unshielded : 4mm
Sensing distanceshielded: 0-1.6mm / unshielded : 0-3.2mm
Power supplyDC 10-30V / AC 90-250V
FrequencyDC: shielded ≤600Hz ;unshielded ≤400Hz / AC:≤20Hz
Current outputDC:≤ 200mA / AC: ≤ 300mA
Ambient temperture-20-70 C
ProtectionDC:Over-current&polarity or no(please indicate when order) / AC:no
IP ratingIP67







Our company is a professiona manufacutures of:







1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor,  hall sensor, color mark sensor and analog sensor.



2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)



3,  Solid state relay: single phase and 3 phase



4, Rotary encoder and couplings



5, Various type of  cable and connectors..etc.



6, Pressure transmitters.



7, Safety light curtain.







IBEST M12 Connector Proximity Sensor Switch PNP (Connector Type)
