M5 Inductive Proximity Sensor Switch NPN Normally Open/Closed DC12/24V (IBEST)

FOB Price

USD $8 - $10 / Unit

5 Units(Min.Order)

Supply Ability 30000 Unit / Units per Month
Port Zhongshan Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	IBEST, SANLLEVI
Model Number	IPS-5NO1A / IPS-5NC1A	Usage	Magnetic Sensor
Theory	Inductance Sensor	Output	Other, PNP, NO or NC

Product Description

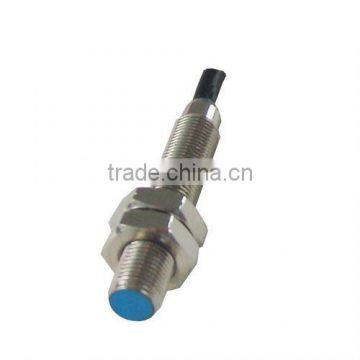

1.Features of IBEST M5 Mini Proximity Switch :

-- Inductive proximity switch, style: cylinder, diameter: 5mm
-- Shielded type.
-- PNP ; NO or NC.
-- DC 3-wire(10-30V DC)
-- Connection mode: cables=2M directly.
-- Mounting distance: shielded (1mm)
-- With LED operation indicate lamp, easily identifiable
-- Brass chrome plated, proof of oil, water acid, alkaline
-- Standard sensing object: iferrous metals;
-- Over load, short circuit protection , against polarity reversal
-- IP ratings: IP67

-- Various other shapes: M6/M12/M18/M22/M30, square types and pancake types.

-- Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc .

-- Reliable quality to replace famous brands .

2. Ordering Code:

Model and Type	Output type	Mounting distance	Cureent output	Power supply	Connector model	Buy
IPS-5PO1A	PNP NO	1mm,shielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-5PC1A	PNP NC	1mm,shielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-5NO1A	NPN NO	1mm,shielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-5NC1A	NPN NC	1mm,shielded	≤100mA	DC 10~30V	DC 3 Wire

3. Technical Specifications:

Property project	Specific parameter
Mounting distance	shielded (1mm)
Sensing distance	shielded(0-0.8mm)
Power supply	DC 10-30V
Frequency	≤600Hz
Current output	Current output
Ambient temperture	-20-70 C
Protection	over-current/against polarity
IP rating	IP67

Our company is a professiona manufacutures of:

1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.

2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)

3, Solid state relay: single phase and 3 phase

4, Rotary encoder and couplings

5, Various type of cable and connectors..etc.

6, Pressure transmitters.

7, Safety light curtain.

&lt;img src="/img/pb/644/291/566/566291644_761.JPG" alt="IBEST 3 Wire square proximity sensor, square proximity switch" ori-width="800" ori-height="667"&gt;
