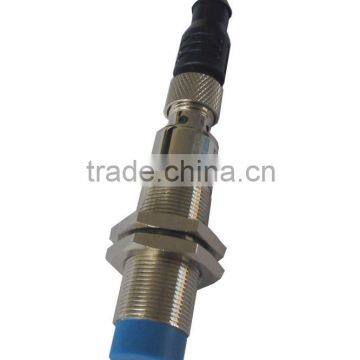

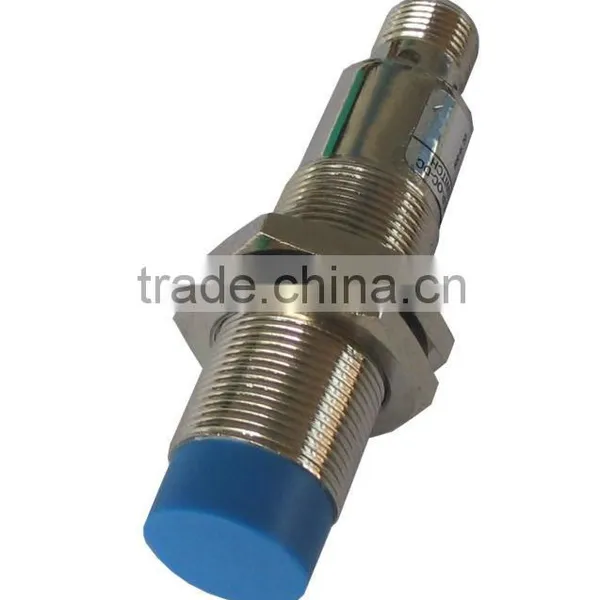

M18 Connector Type Proximity Sensor Switch, M18 Connector Inductive Sensor Switch (IBEST)
US$ 5 - 7
MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST, SANLLEVI
Model Number:
IPSI/L-18PO5B; IPSI/L-18NO5B; IPS-18DO5B; IPS-AO5B
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
M8 Inductive Proximity Sensor Switch, PNP Shielded Flush Type DC 3 Wire 12 24V Inductive Proximity Switch Sensor (IBEST)US$ 4.5 - 6MOQ: 5 Units -
Inductive Proximity Sensor M8 Connector Type Inductive Proximity Switch NPN/PNP Flush/Non-Flush (IBEST) Quality ChoiceUS$ 5 - 8MOQ: 10 Units
-
IBEST M8 Inductive Proximity Sensor Switch, M8 Sensor Switch (PNP)US$ 4 - 6MOQ: 10 Units
-
Proximity Sensor Switch, M18 PNP Proximity Sensor Switch (IBEST) Quality ChoiceUS$ 4 - 6MOQ: 5 Units
-
M30 Inductive Proximity Sensor Switch, AC 2 Wire Proximity Sensor Switch, PNP NPN Proximty Sensor Switch (IBEST)US$ 5 - 7MOQ: 5 Units
Place of Origin
Guangdong, China
Brand Name
IBEST, SANLLEVI
Model Number
IPSI/L-18PO5B; IPSI/L-18NO5B; IPS-18DO5B; IPS-AO5B
Usage
Magnetic Sensor
Theory
Inductance Sensor
Output
Other, NPN, PNP, NO or NC or NO+NC, AC or DC 2 wire
Specifications
M18 proximity switch1.Shielded 5mm / unshielded 8mm
2.NPN, PNP(NO/NC /NO+NC), AC or DC 2 wire
3.CE,IP67
4.With connector
1.Features of IBEST M18 Proximity Switch :
-- Style: cylinder, diameter: 18mm
-- Mounting distance: shielded (2mm) / unshielded (4mm)
-- DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC), AC 2-wire (90-250 AC) type
-- Connection mode: cables=2M directly; or with M12 cable connector.
-- With LED operation indicate lamp, easily identifiable
-- Brass chrome plated, proof of oil, water acid, alkaline
-- Standard sensing object: iferrous metals;
-- Over load, short circuit protection, against polarity reversal
-- IP ratings: IP67 (IP68 can be specially made)
-- Various other shapes: M5/M6/M12/M22/M30, square types and pancake types.
-- Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.
-- Reliable quality to replace famous brands .
2.Ordering code
| IPSI/L-18NO5B | NPN NO | 5mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18NC5B | NPN NC | 5mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18NO8B | NPN NO | 8mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18NC8B | NPN NC | 8mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18NOC5B | NPN NO+NC | 5mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18NOC8B | NPN NO+NC | 8mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18PO5B | PNP NO | 5mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18PC5B | PNP NC | 5mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18PO8B | PNP NO | 8mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18PC8B | PNP NC | 8mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18POC5B | PNP NO+NC | 5mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18POC8B | PNP NO+NC | 8mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18DO5B | DC 2 Wire NO | 5mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18DC5B | DC 2 Wire NC | 5mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18DO8B | DC 2 Wire NO | 8mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18DC8B | DC 2 Wire NC | 8mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-18AO5C | AC 2 Wire NO | 5mm,shielded | ≤300mA | AC 90-250V | Plug-in connector | |
| IPSI/L-18AC5C | AC 2 Wire NC | 5mm,shielded | ≤300mA | AC 90-250V | Plug-in connector | |
| IPSI/L-18AO8C | AC 2 Wire NO | 8mm,unshielded | ≤300mA | AC 90-250V | Plug-in connector | |
| IPSI/L-18AC8C | AC 2 Wire NC | 8mm,unshielded | ≤300mA | AC 90-250V | Plug-in connector |
| 3. Technical Specifications : | ||||||||||||||||||
|
Our company is a professiona manufacutures of:
1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.
2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3, Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.
