Proximity Sensor Switch M18, Inductive Proximity Sensor Switch, 3 Wires Or 4 Wires (IBEST)

Proximity Sensor Switch M18, Inductive Proximity Sensor Switch, 3 Wires Or 4 Wires (IBEST) thumbnail-1
Proximity Sensor Switch M18, Inductive Proximity Sensor Switch, 3 Wires Or 4 Wires (IBEST) thumbnail-2
Proximity Sensor Switch M18, Inductive Proximity Sensor Switch, 3 Wires Or 4 Wires (IBEST) photo-1

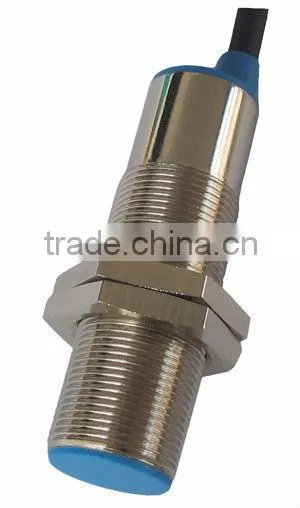

Proximity Sensor Switch M18, Inductive Proximity Sensor Switch, 3 Wires Or 4 Wires (IBEST) photo-2
US$ 5 - 7 MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST, SANLLEVI
Model Number:
IPS-18PC5B; IPS-18NC5B; IPS-18DC5B; IPS-18AC5B
Contact Supplier Request Quote Chat Now
Zhongshan IBEST Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST, SANLLEVI
Model Number IPS-18PC5B; IPS-18NC5B; IPS-18DC5B; IPS-18AC5B
Usage Magnetic Sensor
Theory Inductance Sensor
Output Other, NPN, PNP, NO or NC or NO+NC, AC or DC 2 wire

Specifications

M18 LED proximity switch
1.Cylinder : shielded SN 5mm
2.NPN, PNP(NO/NC /NO+NC) AC or DC 2 wire
3.Short circuit protected,CE

1.Features of IBEST M18 LED Proximity Switch  :

--     Inductive proximity switch, style: cylinder, diameter: 18mm
--     Mounting distance: shielded (5mm) / unshielded (8mm)
--     DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC), AC 2-wire (90-250 AC) type
--     Connection mode: cables=2M directly; or with M12 cable connector.

--     With LED operation indicate lamp, easily identifiable
--     Brass chrome plated, proof of oil, water acid, alkaline
--     Standard sensing object: iferrous metals;
--     Over load, short circuit protection, against polarity reversal

--      IP ratings: IP67
--      Various other shapes: M5/M8/M12/M22/M30, square types and pancake types.

--     Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.

--     Reliable quality to replace famous brands .











2. Technical Specifications:
Property project Specific parameter
Mounting distance shielded: 5mm / unshielded : 8mm
Sensing distance shielded: 0-4mm / unshielded : 0-6.4mm
Power supply DC 10-30V / AC 90-250V
Frequency DC: shielded ≤400Hz ;unshielded ≤200Hz / AC:≤20Hz
Current output DC:≤200mA / AC: ≤300mA
Ambient temperture -20-70 C
Protection DC:Over-current&polarity or no(please indicate when order) / AC:no
IP rating IP67













3. Ordering Code :
Model and Type Output type Mounting distance Current output Power supply Connector model Buy
IPS-18NO5B  NPN NO  5mm,shielded  ≤200mA  DC 10-30V  3 Wire
IPS-18NC5B  NPN NC  5mm,shielded  ≤200mA  DC 10-30V  3 Wire
IPS-18NO8B  NPN NO  8mm,unshielded  ≤200mA  DC 10-30V  3 Wire
IPS-18NC8B  NPN NC  8mm,unshielded  ≤200mA  DC 10-30V  3 Wire
IPS-18NOC5B  NPN NO+NC  5mm,shielded  ≤200mA  DC 10-30V  4 Wire
IPS-18NOC8B  NPN NO+NC  8mm,unshielded  ≤200mA  DC 10-30V  4 Wire
IPS-18PO5B  PNP NO  5mm,shielded  ≤200mA  DC 10-30V  3 Wire
IPS-18PC5B  PNP NC  5mm,shielded  ≤200mA  DC 10-30V  3 Wire
IPS-18PO8B  PNP NO  8mm,unshielded  ≤200mA  DC 10-30V  3 Wire
IPS-18PC8B  PNP NC  8mm,unshielded  ≤200mA  DC 10-30V  3 Wire
IPS-18POC5B  PNP NO+NC  5mm,shielded  ≤200mA  DC 10-30V  4 Wire
IPS-18POC8B  PNP NO+NC  8mm,unshielded  ≤200mA  DC 10-30V  4 Wire
IPS-18DO5B  DC 2 Wire NO  5mm,shielded  ≤200mA  DC 10-30V  2 Wire
IPS-18DC5B  DC 2 Wire NC  5mm,shielded  ≤200mA  DC 10-30V  2 Wire
IPS-18DO8B  DC 2 Wire NO  8mm,unshielded  ≤200mA  DC 10-30V  2 Wire
IPS-18DC8B  DC 2 Wire NC  8mm,unshielded  ≤200mA  DC 10-30V  2 Wire
IPS-18AO5C  AC 2 Wire NO  5mm,shielded  ≤300mA  AC 90-250V  2 Wire
IPS-18AC5C  AC 2 Wire NC  5mm,shielded  ≤300mA  AC 90-250V  2 Wire
IPS-18AO8C  AC 2 Wire NO  8mm,unshielded  ≤300mA  AC 90-250V  2 Wire
IPS-18AC8C  AC 2 Wire NC  8mm,unshielded  ≤300mA  AC 90-250V  2 Wire



Our company is a professiona manufacutures of:







1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor,  hall sensor, color mark sensor and analog sensor.



2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)



3,  Solid state relay: single phase and 3 phase



4, Rotary encoder and couplings



5, Various type of  cable and connectors..etc.



6, Pressure transmitters.



7, Safety light curtain.







Proximity Sensor Switch M18, Inductive Proximity Sensor Switch, 3 Wires Or 4 Wires (IBEST) <img src="/img/pb/644/291/566/566291644_761.JPG" alt="IBEST 3 Wire square proximity sensor, square proximity switch" ori-width="800" ori-height="667">
