M18 Analog Proximity Switch Sensor 4~20mA/0~10V Output, Linear Proximity Switch Sensor, Linear Position Sensor Switch (IBEST)
- 30000 Unit / Units per Month
- Zhongshan Port
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | IBEST, SANLLEVI | Model Number: | LPS-18PO8B-V; LPS-18PO8B-I |
Usage: | Other, analog proximity sensor | Theory: | Other, linear position sensor | Output: | Other, DC 0~10(5)V or 0/4~20mA |
Product Description
IBEST Analog Output Proximity Sensor/Switch
1.Features of IBEST Cylinder M18 Analog Sensor :

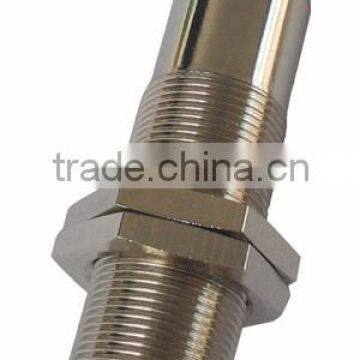

- M18 cylinder, nickled plated brass housing.
- Detect distance: Flush/shielded 5mm or Non-flush/unshielded 8mm.
- Standard sensing object: metal objects. Non- contact, absolute operating principle.

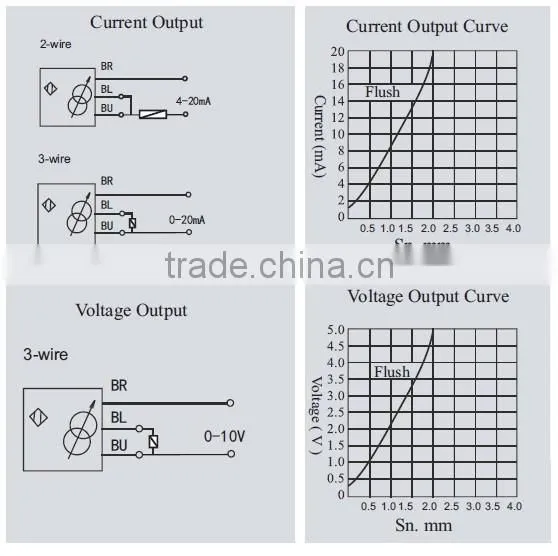

- Output: current (0~20mA or 4 -20mA output), voltage (0~10V) output. (or 4-20mA+0-10V 4 wires output)
- High repeat accuracy, compact , sealed , rugged and reliable.
- Power: DC (10~30V) supply.
- IP ratings: IP67, water and oil resistant.
- Analog Sensor Switch have a linear voltage or current output signal which changes in proportion to target distance from the damping surface. The curve is linear over the entire working range.
- Widely used for controlling position; measuring deviation of control position, curve and excursion; measuring height of swing and the stability of dimension control...etc
2.Ordering Code
Model and Type | Output Mode | Detect Distance | Shape | Power Supply | Detect Object | Buy |
LPS-18PO5B-I | 4~20mA | 5mm | M12 Cylinder | 10-30V | Metal Objects | |
LPS-18PO8B-I | 4~20mA | 8mm | M12 Cylinder | 10-30V | Metal Objects | |
LPS-18PO5B-V | 0-10V | 5mm | M12 Cylinder | 10-30V | Metal Objects | |
LPS-18PO8B-V | 0-10V | 8mm | M12 Cylinder | 10-30V | Metal Objects |
LPS-18PO5B-IV | 4~20mA+0-10V output | 2mm | M12 Cylinder | 10-30V | Metal Objects | |
LPS-18PO8B-IV | 4~20mA +0-10V output | 4mm | M12 Cylinder | 10-30V | Metal Objects |

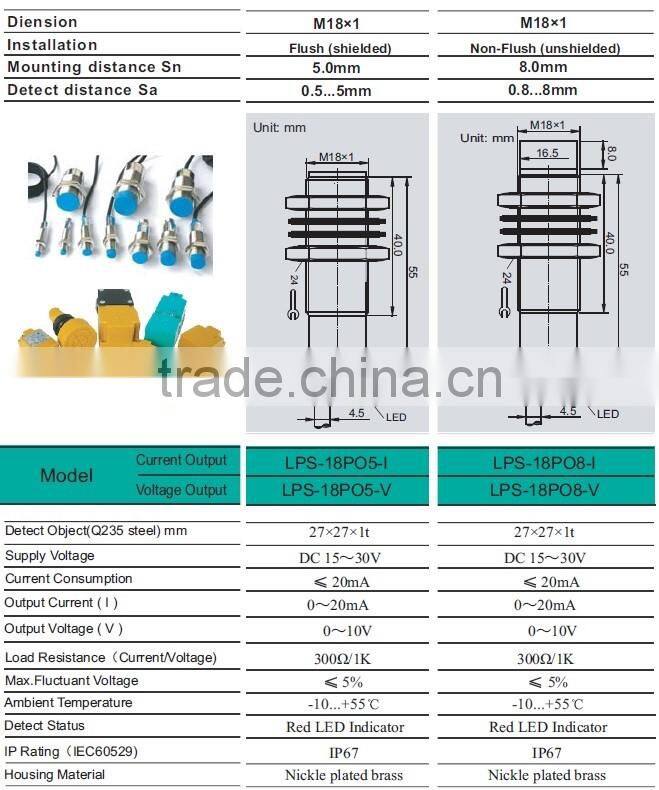

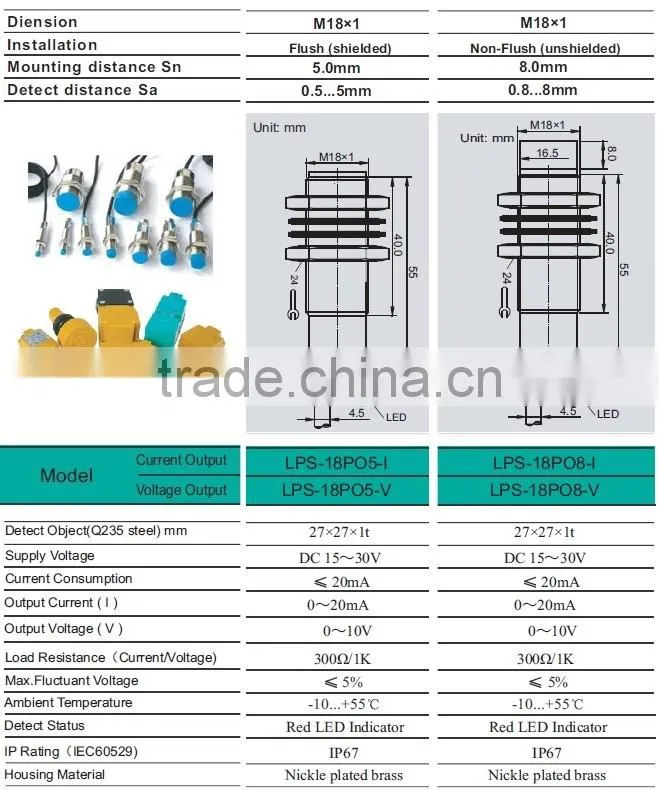

3.Technical Specification
Property project | Specific parameter |
Detect Object | 27*27*1t |
Supply Voltage | DC 10-30V |
Current Consumption | ≤20mA |
Output Current(I) | 4-20mA |
Output Current(V) | 0-10V or 0-5V |
Load Resistance | 300Ω/1K |
Max.Fluctuant Voltage | ≤5% |
Ambient Temperature | -15...+65C |
Detect Status | Red LED Indicator |
IP Rating(IEC60529) | IP67 |
Housing Material | Nickle plated brass |
Our company is a professiona manufacutures of:
1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.
Welcome to contact us!
IBEST ELECTRICAL CO.LTD
wwwibestchinacom
