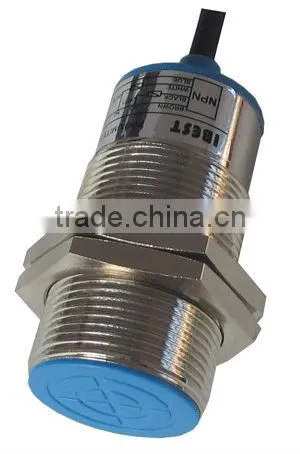

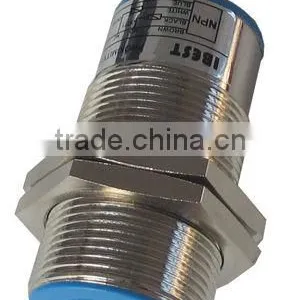

Help CenterM30 DC 0-10V+4-20mA Dual Output Analog Proximity Sensor Switch , Linear Position Sensor Switch Flush 10mm (IBEST)
Related Products
-
M18 DC 0-10V+4-20mA Dual Output Analog Proximity Sensor Switch, Linear Position Sensor Switch (IBESTW)US$ 7.5 - 10MOQ: 5 Units -
M18 Analog Proximity Sensor Switch, DC 0~10V+4~20mA Output Linear Position Sensor Switch Flush 5mm (IBEST)US$ 7.5 - 10MOQ: 5 Units
-
M18 Analog Proximity Switch Sensor 4~20mA/0~10V Output, Linear Proximity Switch Sensor, Linear Position Sensor Switch (IBEST)US$ 7.5 - 10MOQ: 5 Units
-
M30 Linear Output Position Sensor,4~20mA/0~10V Output Analog Proximity Sensor Switch (IBEST)US$ 8 - 12MOQ: 5 Units
-
M30 Analog Proximiy Sensor Switch, Linear Sensor Switch, 0~20mA Output (IBEST)US$ 10 - 15MOQ: 5 Units
IBEST Analog Output Proximity Sensor/Switch
1.Features of IBEST Cylinder M30 Analog Sensor :
- M30 cylinder, nickled plated brass housing.
- Detect distance: Flush/shielded 10mm or Non-flush/unshielded 15mm.
- Standard sensing object: metal objects. Non- contact, absolute operating principle.
- Output: current (0~20mA or 4 -20mA output), voltage (0~10V) output. (or 4-20mA+0-10V 4 wires output)
- High repeat accuracy, compact , sealed , rugged and reliable.
- Power: DC (10~30V) supply.
- IP ratings: IP67, water and oil resistant.
- Analog Sensor Switch have a linear voltage or current output signal which changes in proportion to target distance from the damping surface. The curve is linear over the entire working range.
- Widely used for controlling position; measuring deviation of control position, curve and excursion; measuring height of swing and the stability of dimension control...etc
2.Ordering Code
| Model and Type | Output Mode | Detect Distance | Shape | Power Supply | Detect Object | Buy |
| LPS-30PO10B-I | 4~20mA | 10mm | M30 Cylinder | 10-30V | Metal Objects | |
| LPS-30PO15B-I | 4~20mA | 15mm | M30 Cylinder | 10-30V | Metal Objects | |
| LPS-30PO10B-V | 0-10V | 10mm | M30 Cylinder | 10-30V | Metal Objects | |
| LPS-30PO15B-V | 0-10V | 15mm | M30 Cylinder | 10-30V | Metal Objects |
| LPS-30PO10B-IV | 4~20mA+0-10V output | 10mm | M30 Cylinder | 10-30V | Metal Objects | |
| LPS-30PO15B-IV | 4~20mA +0-10V output | 15mm | M30 Cylinder | 10-30V | Metal Objects |
3.Technical Specification
| Property project | Specific parameter |
| Detect Object | 45*45*1t |
| Supply Voltage | DC 10-30V |
| Current Consumption | ≤20mA |
| Output Current(I) | 4-20mA |
| Output Current(V) | 0-10V or 0-5V |
| Load Resistance | 300Ω/1K |
| Max.Fluctuant Voltage | ≤5% |
| Ambient Temperature | -15...+65C |
| Detect Status | Red LED Indicator |
| IP Rating(IEC60529) | IP67 |
| Housing Material | Nickle plated brass |
Our company is a professiona manufacutures of:
1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.
Welcome to contact us!
IBEST ELECTRICAL CO.LTD
wwwibestchinacom
