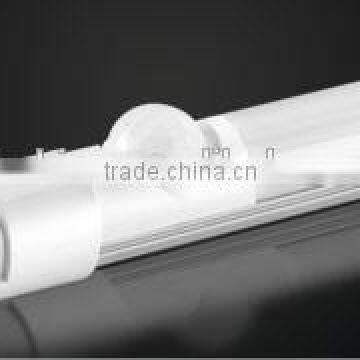

Infrared Induction Series LED Tube Light
1,Adopted super bright LED as lighting source, eco-friendly
2,Adopted special infrared chip control system, 5-8m of induction distance;
3,High efficiency constant current driver, no strobe, low light decline and long lifespan;
4,At static condition,brightness mode coud set as 10%-30% or extinguished;
5,Imported PC cover material, mercury and lead free;
6,High lumen output, soft light, high CRI;
7,Easy installation, replace traditional fluroscent with G13 socket and grille lamps directly.
BASIC PARAMETER
| Part Number | Dimension(mm) |
Input Voltage(V/HZ) | Driver | Pins | Beam Angle | Working Temperatur |
Life span | IP Rate | Induction Way | |
| A(Max) | B(Max) | |||||||||
| GLT-AG06-2 | 589.8 | 604 | AC180-240 / 50-60 | Built-in, non-isolated |
G13 | 280° | -20~40℃ | 30,000h | IP40 | Heat release |
| GLT-AG12-2 | 1198 | 1212 | AC180-240 / 50-60 | G13 | 280° | -20~40℃ | 30,000h | IP40 | Heat release | |

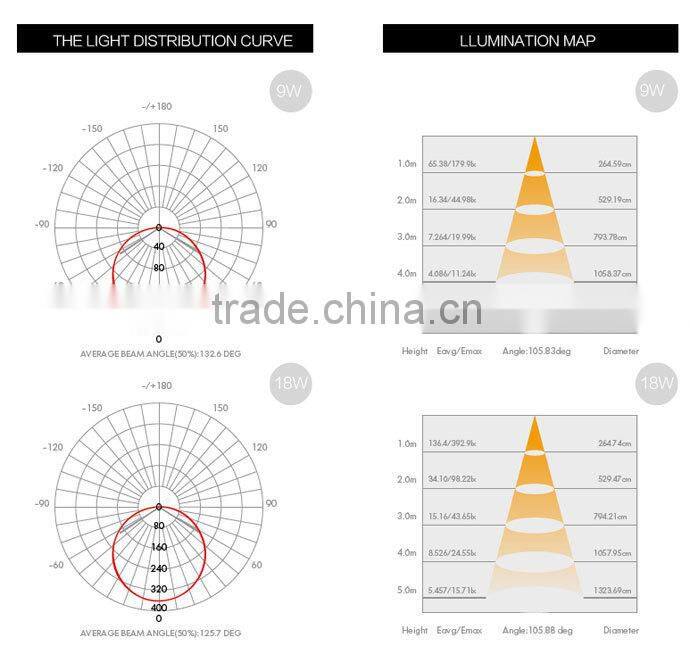

PHOTOELECTRIC PARAMETER
| Part Number | LED type | Power | CCT | CRI | Light |
LM(±10%) | Lux.at 2Meters(Ref) | Power Factor |
Harmonic |
| GLT-AG06-2 | SMD 2835 | 9W | 2900-6500K | Ra>80 | 90lm/W | 800lm | 50lx | >90 | <18 |
| GLT-AG12-2 | SMD 2835 | 18W | 2900-6500K | Ra>80 | 90lm/W | 1600lm | 100lx | >90 | <18 |

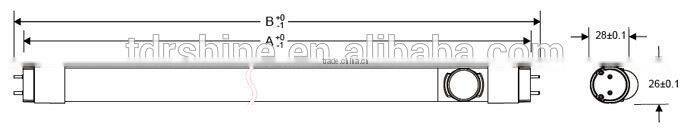

DIMENSIONAL DRAWING

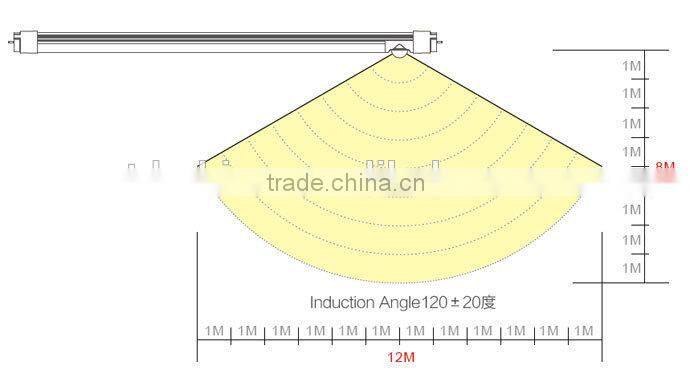

SENSING RANGE SHOWN
APPLICATION FOR LED CEILING LIGHT
1. Commercial lighting, environmentally friendly lighting, warehouse , supermarket and home illumination.
2. IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel and other public places.
3. Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour range
WARNING
1. When installing, avoid strong magnetic fields and high-pressure regions;
2. Ensuring a solid connection correctly in order to avoid short-circuit damage to components and fire risk;
3. Install in a well ventilated place to ensure appropriate environmental temperature;
4. Using this product please check the local voltage compliance product requirements;
5. Before powering on, check to confirm wiring is correct, check for short circuits;
6. Avoid looking directly at the light for long periods to avoid harming of eyes;
7. In case of failure do not maintain in private, please refer to manufacturer.
