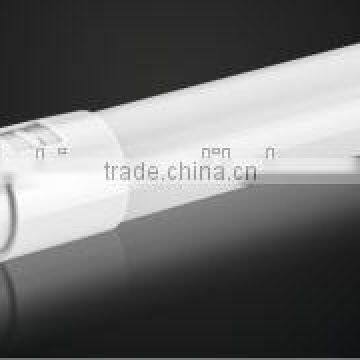

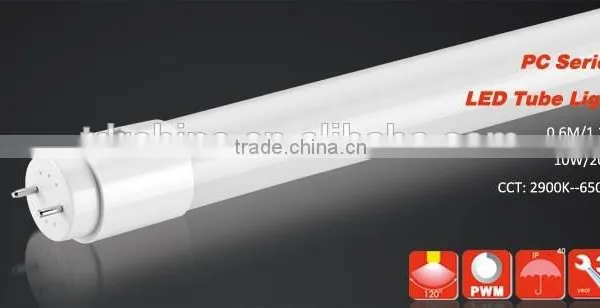

PC Series LED Tube Light
1. Adopts super bright LED as lighting source, energy-saving,environmentally friendly; high efficient; no flashing or strobe;
2. Use constant current as driver, low light decline, long life span;
3. Use imported light diffusion material, mercury and lead free.
4. All PC material structure, safe and stable.
5. Wide beam angle design, softens and maintains diffusion of the light;
6. Replacing traditional G13 socket and grill lamps directly.
BASIC PARAMETER
| Part Number | Dimension(mm) |
Input Voltage(V/HZ) | Driver | Pins | Beam Angle | Working Temperatur |
Life span | IP Rate | ||
| A(Max) | B(Max) | C | ||||||||
| GLT-AG06-2 | 589.8 | 604 | 29 | AC180-240 / 50-60 | Built-in, non-isolated |
G13 | 280° | -20~40℃ | 30,000h | IP40 |
| GLT-AG12-2 | 1198 | 1212 | 29 | AC180-240 / 50-60 | G13 | 280° | -20~40℃ | 30,000h | IP40 | |
PHOTOELECTRIC PARAMETER
| Part Number | LED type/Qty | Power | CCT | CRI | Light |
LM(±10%) | Lux.at 2Meters(Ref) | Power Factor |
Harmonic |
| GLT-AG06-2 | SMD 2835/60pcs | 10W | 2900-6500K | Ra>80 | 90lm/W | 900lm | 50lx | >90 | <18 |
| GLT-AG12-2 | SMD 2835/120pcs | 20W | 2900-6500K | Ra>80 | 90lm/W | 1800lm | 100lx | >90 | <18 |

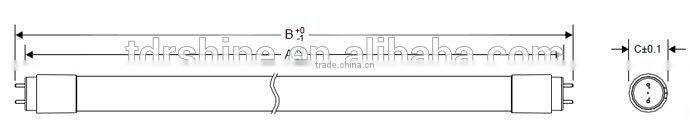

DIMENSIONAL DRAWING
APPLICATION FOR LED CEILING LIGHT
1. Commercial lighting, environmentally friendly lighting, warehouse , supermarket and home illumination.
2. IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel and other public places.
3.Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour range
WARNING
1. When installing, avoid strong magnetic fields and high-pressure regions;
2. Ensuring a solid connection correctly in order to avoid short-circuit damage to components and fire risk;
3. Install in a well ventilated place to ensure appropriate environmental temperature;
4. Using this product please check the local voltage compliance product requirements;
5. Before powering on, check to confirm wiring is correct, check for short circuits;
6. Avoid looking directly at the light for long periods to avoid harming of eyes;
7. In case of failure do not maintain in private, please refer to manufacturer.
