Specifications
Temperature Transmitter 3144P1.rosemount 3144P,
2.One-Stop Supplier
3.1 year Guarantee

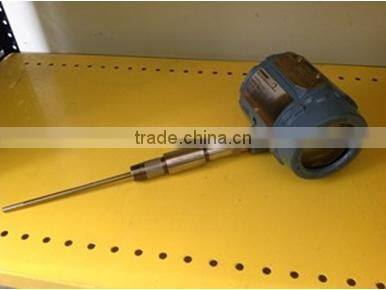

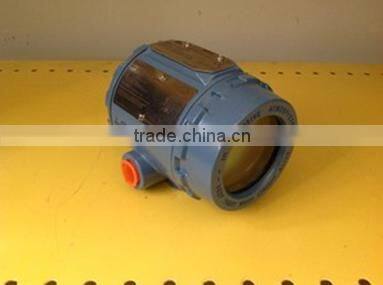

Temperature Transmitter 3144P
Performance of Temperature Transmitter 3144P :
*Universally progammable with HART-protocol for various input signals
*Two-wire technology, analogue output 4 to 20mA
*Highly accurate in entire operating temperature range
*Wide voltage supply range
*Customer specific measurement range settings
*Simple and user friendly software
*Multiparametric backlight rotatable LCD display
Application of Temperature Transmitter Rosemount 3144P:
* Temperature Field Transmitter with HART-protocol convert various input signals into a scalable 4 to 20mA analogue output signal
*Input
Resistance thermometers(RTD)
Thermocouples(TC)
Resistance transmitters(ohm)
Voltage transmitters(mV)
Parameters of Temperature Transmitter 3144P :
| Digital Accuracy | ±0.10° C (±0.18° F) for Pt100 RTD |
| D/A Accuracy | ±0.02% of span (Applies to HART/4-20 mA devices) |
| Ambient Temperature Effects | 0.0015 °C (+0.001% of span for HART/4-20 mA devices) per 1.0 °C (1.8 °F) change in ambient for a Pt100 RTD |
| Stability (RTDs) | ±0.1% of reading or 0.1° C, whichever is greater, for two years |
| Input | Two Independently Configured Inputs; 2-, 3-, and 4-wire RTD, and Ohm, Thermocouple, Millivolt |
| Output | 4-20 mA/HART or FOUNDATION fieldbus signal |
| Supply Voltage | 12.0 to 42.4 V dc (with 250 ohm load, 18.1 V dc is required) |
