Specifications
Diffused silicon water pressure sensor1. low price
2. high quality
3. CE

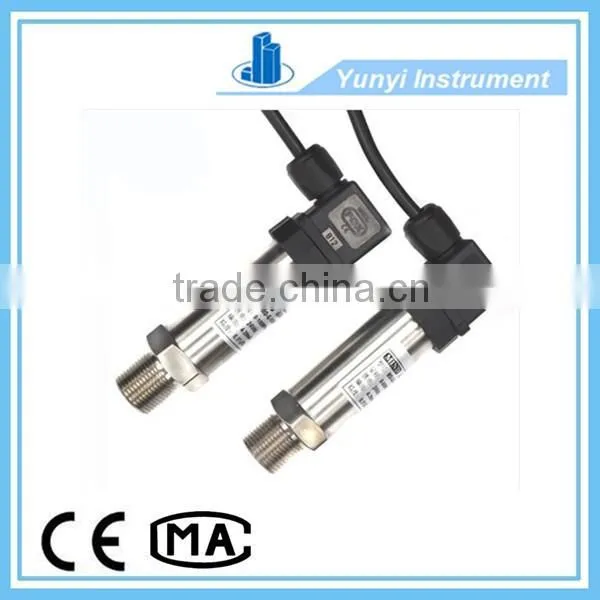

Diffused silicon water pressure sensor
Specifications of Diffused silicon pressure transmitter :
Range of Pressure range: 0 ~ 6 10 16 25 50Bar
High pressure range: 0 ~ 60 100 250 400 600Bar
Overload pressure ≤ 10Mpa 200%;> 10Mpa 150%;
Type pressure gauge
Measuring media compatible with 316 stainless steel gas or liquid
Accuracy class 0.5% FS
A typical long-term stability: ± 0.2% FS / Year
Thermal drift typical: ± 0.03% FS / °C
Sensitivity temperature drift typical: ± 0.03% FS / °C
Operating temperature -40 ~ 85 °C
Compensation temperature 0 ~ 60 °C
Supply range 9 ~ 32VDC (typical 24VDC)
Signal output 4 ~ 20mA / 0 ~ 5VDC
Load resistance ≤ (U-12) / 0.02 Ω
Vibration error ≤ ± 0.01% FS (X, Y, Z axis, 200Hz / g)
Response time ≤ 5 ms
Anti-electromagnetic degrees / RF degrees EN50081-1; EN50082-2; IEC61000-4-3
Pressure connection M20 * 1.5, G1 / 4, G1 / 2 (the other can be customized)
Material Stainless steel 304
Case protection plug type (IP65)
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this Diffused silicon pressure transmitter , please visit the website
