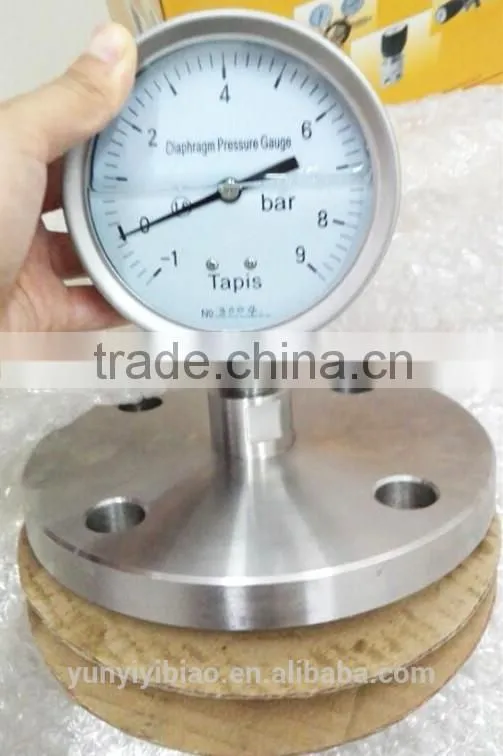

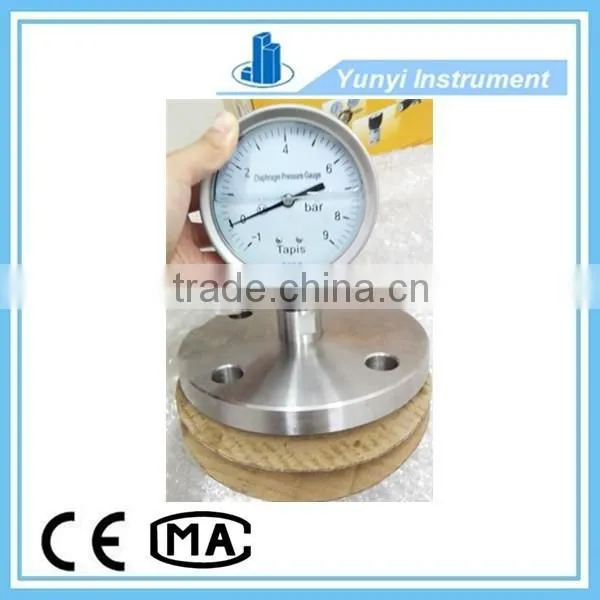

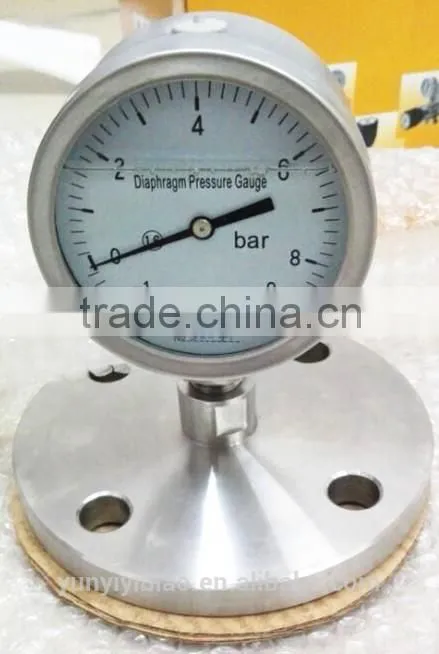

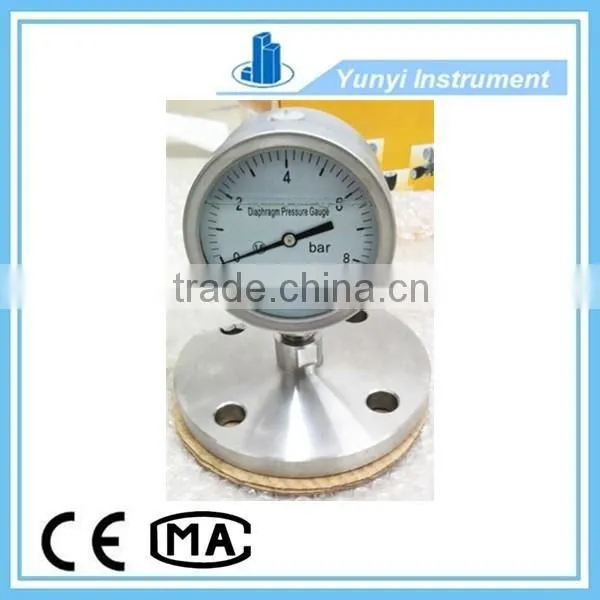

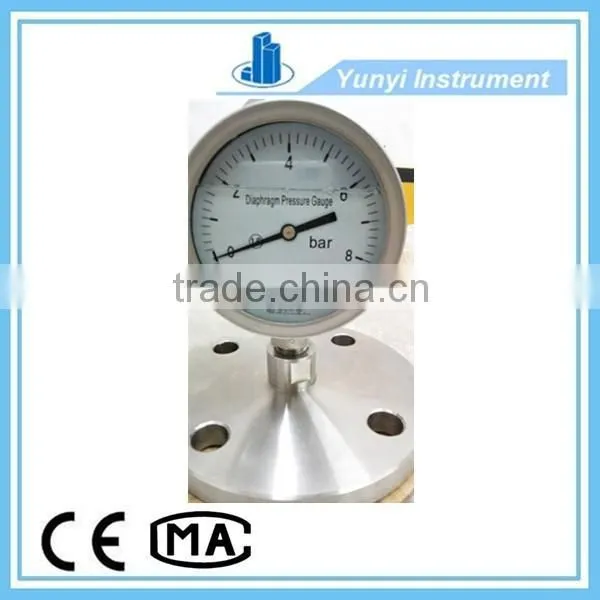

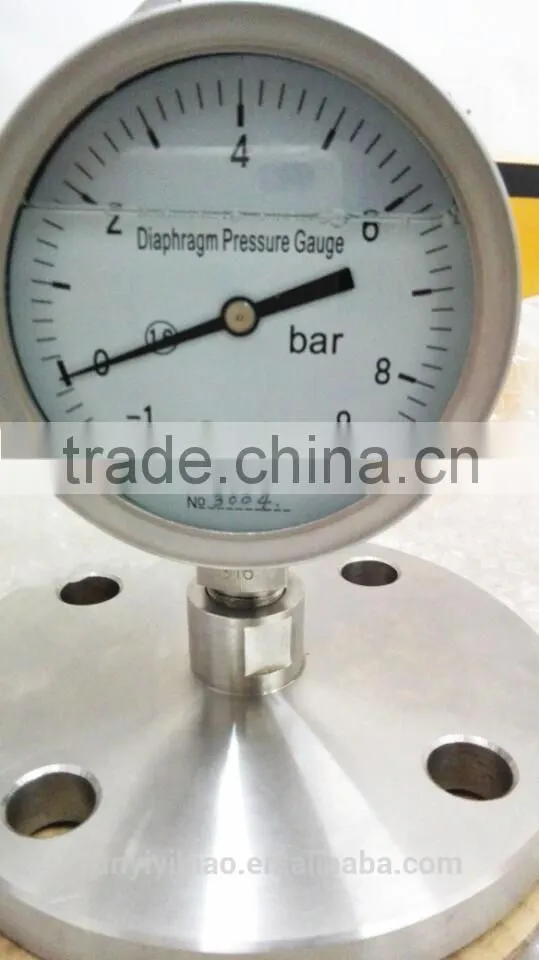

Stainless steel oil pressure gauge
Features:
All the major parts of All Stainless Steel Pressure Gauge, including case, measuring system and drive mechanism, are made of high anti-corrosive stainless steel, which makes the gauge perfectly applicable to chemical industry as well as some other industries such as petroleum, synthetic fiber, dyeing and caustic soda production, etc.
Specifications:
1.Type:YTP
2.Accuracy:Normal Grade 2.5 or 1.5
3.Diameter of outside:40mm=1.5'',60mm=2.5'',100mm=4'',150mm=6''.Otherwise,we can do special size you need.
4.Measure range:From -0.1 to 70 Mpa
5.Installation:Bottom connection, Back connection or Back connection with border.
6.Thread:BSP,NPT,BS,UNand other special specification
7.Temperature:-10~70°C
8.Shockproof if add Glycerine or Silicone oil
9.Compective price and durable in use
10.Certification:ISO9001:2008
11.Dial plate:Single and dual scale (psi, kpa, mpa, bar, kg/cm2) available
Material:
Part |
Case |
Bourdon Tube |
Movemnet |
Thread |
Point |
Window |
Material |
SUS304 stainless steel |
SUS316L stainless steel |
SUS316L stainless steel |
SUS316L stianless steel |
Aluminum |
PC lens, glass lens or acrylic lens |
Attention:In the measurement instruments, shall not exceed the load measurement limit 3/4
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this stainless steel oil pressure gauge , please contact Skype:wangxiaoyuncalar
For more products welcome the website
